Description

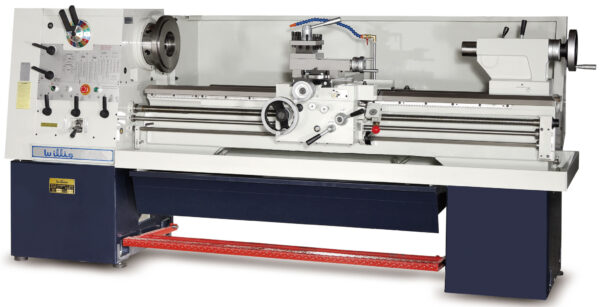

Willis 20″ x 80″ Geared Head Engine Lathe, 2080
Inventory # 8285
Model: 2080
Specifications:
Center Height: 10″
Swing Over Bed: 20″
Swing Over Cross Slide: 13 1/2″
Swing in Gap: 30″
Distance Between Centers: 80″
Gap Width In Front of Face Plate: 8.7″
Cross Slide Travel: 10 1/2″
Top Slide Travel: 5.1″
Width of Bed: 13″
Length of Bed: 125″
Spindle Nose: D1-8
Spindle Bore: 3 1/8″
Spindle Speed: 20 – 1,600 (16 Steps)
Spindle Nose Bush: M.T. # 7
Spindle Center: M.T. # 5
Tailstock Spindle Travel: 7″
Tailstock Barrel Diameter: 3″
Tailstock Center: M.T. # 5
Motor: 10 HP
Standard Equipment:
Low Voltage Controls
Coolant System
Motor and Electrics Controls System
One Backplate for 3-Jaw Chuck
4-Way Toolpost
Threads Indicator
Feed Rod Overload Clutch
Centers and Center Sleeve
Leveling Blocks
Service Tools and Toolbox
Touch Paints
Instruction and Parts Manual
Mechanical Specifications:
Dimensions: 136″ x 44″ x 70″ H
Shipping Weight: approx. 6,283 lbs.
Contact us for special pricing and availability
FOB Factory
