Description

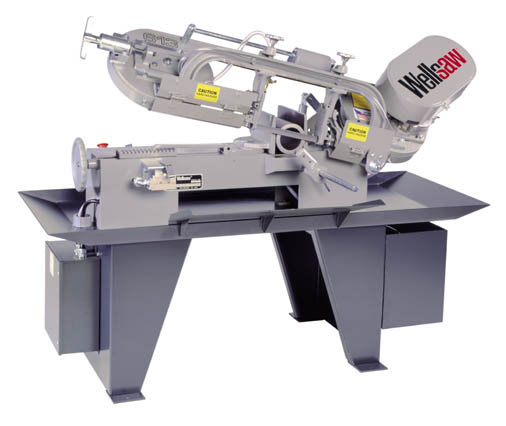

Wellsaw 6″ x 13″ Manual Metal Cutting Band Saw, 613
Inventory # 5913
Model: 613
Made in USA
Description:
Medium capacity, 4-speed V-belt drive. Wet cutting system is standard on horizontal band saw
Specifications:
Capacity:
Round: 7″
Flat: 13″
Rectangular: 6″ x 13″
45° Angle: 6″ x 6 1/2″
Blade Size: 3/4″ x .035″ x 8′ 3″
Blade Speeds: 50 – 90 – 160 – 250 SFPM
Blade Guides: Six Sealed Ball Bearings
Vise Control: Manual Screw
Swivel Vise: 45°
Feed Control: Hydraulic with Adjustable Counterbalance
Band Wheels: 11″ Diameter, Cast Iron
Bed Height: 29″
Motor: 1 HP / 115v, 208v, 230v / 1ph OR 208v, 230v, 460v / 3ph (Please Specify Desired Voltage at Time of Order)
Standard Features:
Hydraulic feed control with adjustable counterbalance spring
Ball bearing blade guides
Perimeter ring gear blade drive
Baldor motor
Four blade speeds
Rite-Tension band tensioning device
Wet cutting system
Blade brush
110v at controls
Overload and undervoltage protection
Precision ground bed
Quick acting vise
Positive frame lock
Adjustable stock stop
Auto shut-off at end of cut
OSHA blade guarding
Tiger-tooth bi-metal blade
Coolant for initial start-up
Mechanical Specifications:
Floor Space: 25″ W x 60″ L
Shipping Weight: approx. 650 lbs.
Contact us for special pricing and availability
FOB Factory
