Description

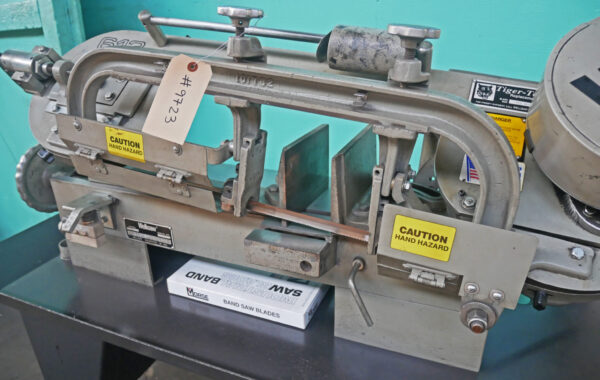

Wellsaw 6″ x 13″ Manual Metal Cutting Band Saw, 613
Inventory # 9723
Model: 613
S/N: 1765
Made in USA
Specifications:
Capacity:
Round: 7″
Flat: 13″
Rectangular: 6″ x 13″
45° Angle: 6″ x 6 1/2″
Blade Size: 8′ 3″ x 3/4″ x .035″
Blade Speeds: 50 – 90 – 160 – 250 SFPM
Blade Guides: Six-Sealed Ball Bearings
Vise Control: Manual Screw
Swivel Vise: 45°
Feed Control: Hydraulic with Adjustable Counterbalance
Band Wheels: 11″ Diameter, Cast Iron
Bed Height: 29″
Motor: 1 HP
Standard Features & Equipment Included:
Hydraulic feed control with adjustable counterbalance spring
Ball-bearing blade guides
Perimeter ring gear blade drive
Baldor motor
Four blade speeds
Rite-Tension band tensioning device
Wet cutting system
Blade brush
110v at controls
Overload and under-voltage protection
Precision ground bed
Quick-acting vise
Positive frame lock
Adjustable stock stop
Auto shut-off at end of cut
OSHA blade guarding
Misc. Manuals
Mechanical Specifications:
Dimensions: 60″ x 25″ x 40″ H
Shipping Weight: approx. 650 lbs.
New Replacement Cost: $8,000.00+
FOB Our Baltimore, MD Warehouse
