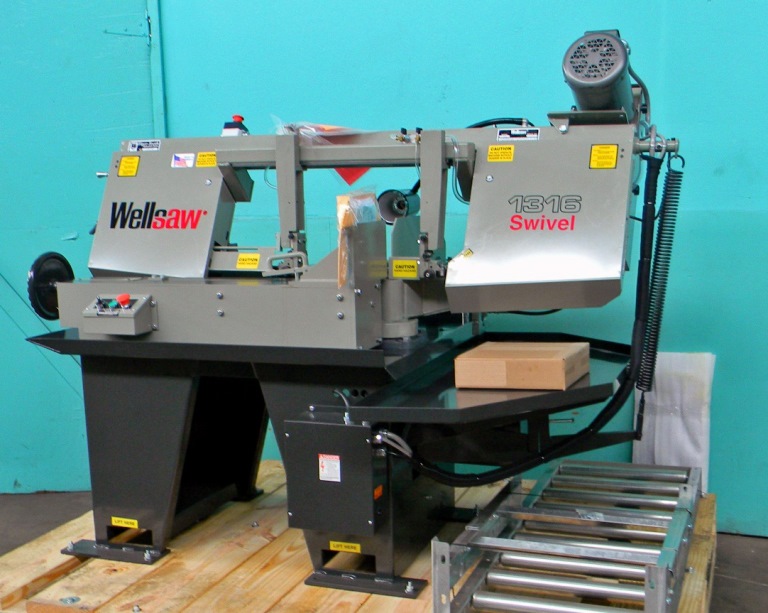

Wellsaw 13″ Swivel Head Mitering Metal Cutting Band Saw, 1316S
Inventory # 5721
Model: 1316S
Made in USA
Specifications:
Capacity:
Round: 13″
@ 45°: 11 1/2″
@ 60°: 8″
Rectangular: 13″ x 16″
@ 45°: 13″ x 11 1/2″
@ 60°: 8 1/2″ x 8″
Blade Size: 1″ x .035″ x 150″
Blade Speeds: 70 – 375 SFPM (Variable)
Blade Guides: Carbide Guides with Rollers
Vise Control: Quick Acting / Manual Screw
Swivel Vise: 45°
Feed Rate Control: Variable Hydraulic
Band Wheels: 15″ Diameter, Cast Iron
Bed Height: 35″
Motor: 3 HP / 208v, 230v, 460v / 3ph
Standard Features:
Spring-loaded carbide guides with rollers
Combination reduction gearbox and ring and pinion blade drive
Baldor motor
Infinitely variable blade speeds
Rite-Tension blade tensioning device
Wet cutting system with full-surround pan
Powered blade brush
110v at controls
Overload and under voltage protection
Precision ground bed and vise jaws
Quick acting vise
Adjustable stock stop / back gauge
Auto shut-off at end of cut
OSHA blade guarding
Tiger-tooth bi-metal blade
Coolant for initial start-up
Mechanical Specifications:
Floor Space: 90″ W x 76″ L
Shipping Weight: approx. 1,600 lbs.
Contact us for special pricing and availability
FOB Factory
