Description

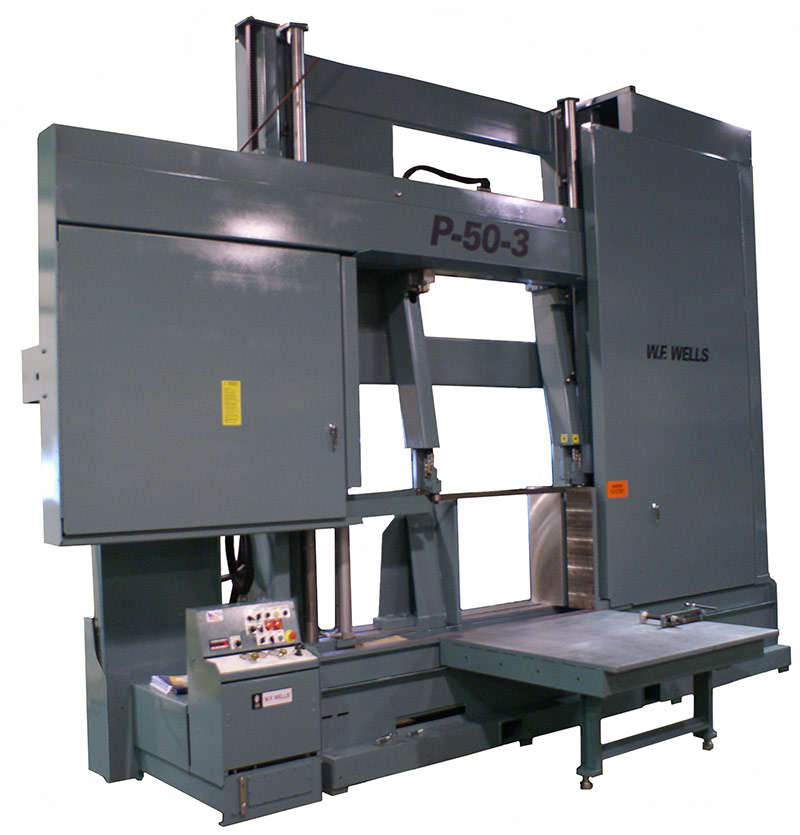

W.F. Wells 50″ x 50″ Semi-Automatic Horizontal Band Saw, P50-3
Inventory # 8000
Model: P50-3
Made in USA
Specifications:
Capacity:
Rectangular:
@ 90°: 50″ x 50″
Weight Capacity: 15,000 lbs.
Blade Speed: 60 – 500 FPM
Blade Size: 452″ x 2″ x .063″
Sawing Force: 0 – 1,000 lbs.
Work Height: 26″
Motor: 20 HP / 208v, 230v, 460v / 3ph
Standard Features:
Carbide Blocks, Spring Tensioned Blade Guide
Hydraulic Console Controlled Blade Tension
Hydraulic Full Stroke Vise
AC Vector Drive
20 Gallon Hydraulic System
60 Gallon Coolant System
LED Blade Speed Indicator
Hydraulic Guide Arm Positioning
Blade Break/Stall Switch
Hydraulic Powered Blade Brush
Electrics are Wired to NFPA 79 Machine Tool Standards
Mechanical Specifications:
Dimensions: 288″ x 60″ x 162″ H
Shipping Weight: approx. 21,500 lbs.
FOB Factory – Contact us for Availability
