Description

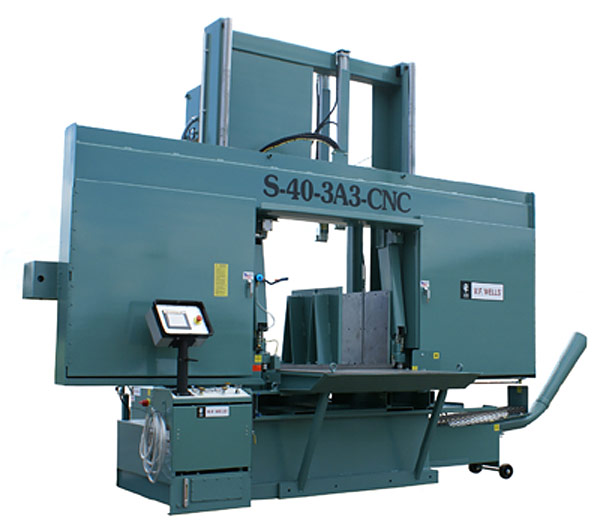

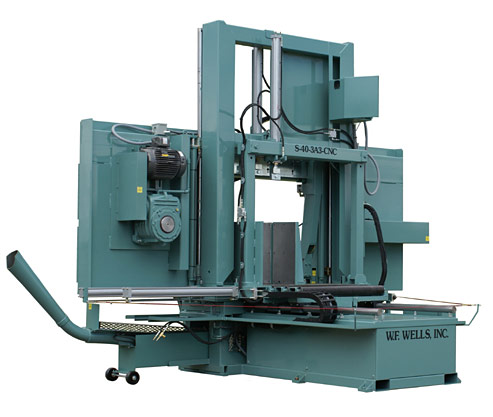

W.F. Wells 40″ x 40″ Automatic Horizontal Heavy Duty CNC Band Saw, S40-3A3 CNC
Inventory # 8011
Model: S40-3A3 CNC
Made in USA
Specifications:
Capacity:
Rectangular:
@ 90°: 40″ x 40″
Weight Capacity: 14,000 lbs.
Blade Speed: 60 – 500 FPM
Blade Size: 348″ x 2″ x .063″
Bandwheel Size: 42″
Sawing Force: 0 – 1,000 lbs.
Work Height: 34″
Outfeed Table: 12″ x 41″
Vise Jaw Height: 24″
Projection Accuracy: +/- .002″
Remnant End: 14″
Motor: 15 HP / 208v, 230v, 460v / 3ph
Standard Features:
Spring Tensioned Carbide Blocks with Idle Roller Back-up Blade Guide
Hydraulic Blade Tension
Hydraulic Vise
AC Vector Drive
15 Gallon Coolant Capacity
20 Gallon Hydraulic Capacity
5 HP Hydraulic Drive Motor
0 – 36″ CNC Controlled Barfeed Projection
Unlimited Shuttle Indexes
Hydraulic Positioned Guide Arm
Powered Blade Brush
Blade Break/Stall Switch
CNC Programmable Control with Color Touch Screen
500+ Job Selection
Automatic Kerf Compensation
Electrics Wired to NFPA 79 Machine Tool Standards
Mechanical Specifications:
Dimensions: 175″ x 102″ x 135″ H
Shipping Weight: approx. 12,200 lbs.
FOB Factory – Contact us for Availability
