Description

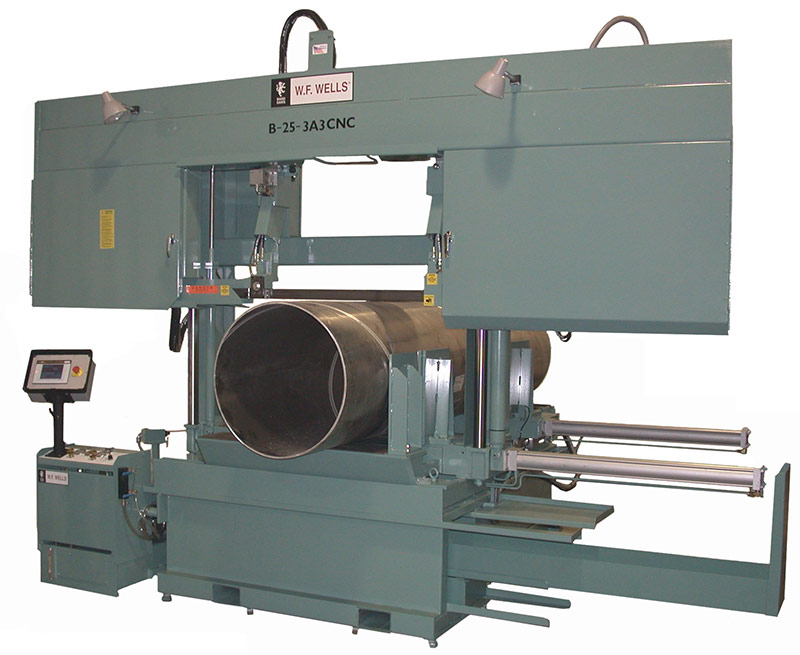

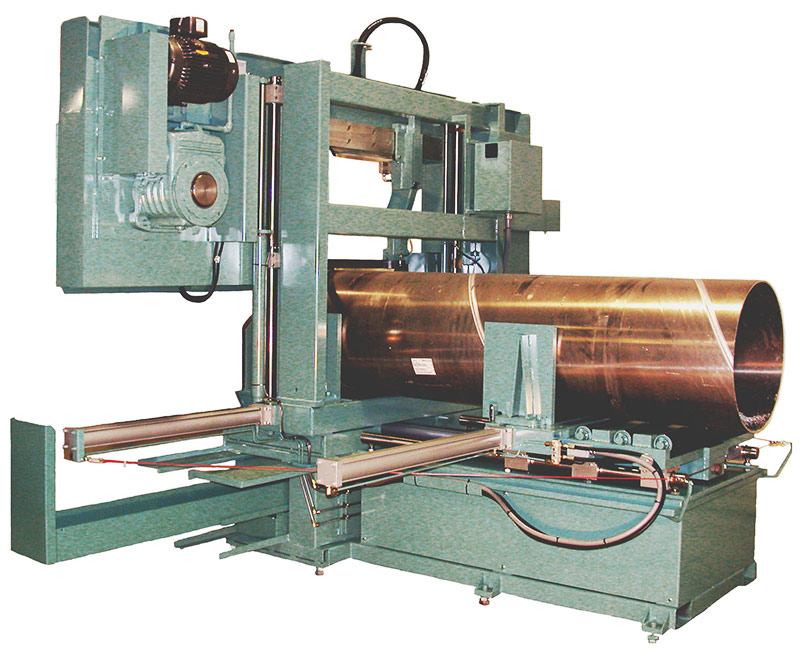

W.F. Wells 25″ x 40″ Automatic Horizontal Heavy Duty CNC Band Saw, B25-3A3 CNC
Inventory # 8010
Model: B25-3A3 CNC
Made in USA
Specifications:
Capacity:
Round:
@ 90°: 25 1/2″
Rectangular:
@ 90°: 25″ x 40″
Weight Capacity: 14,000 lbs.
Blade Speed: 60 – 500 FPM
Blade Size: 318″ x 2″ x .063″
Bandwheel Size: 26″
Sawing Force: 0 – 1,000 lbs.
Work Height: 35″
Outfeed Table: 12″ x 41″
Vise Jaw Height: 17″
Projection Accuracy: +/- .002″
Remnant End: 14″
Motor: 15 HP / 208v, 230v, 460v / 3ph
Standard Features:
Spring Tensioned Carbide Blocks with Idle Roller Back-up Blade Guide
Hydraulic Blade Tension
Hydraulic Vise
AC Vector Drive
15 Gallon Coolant Capacity
20 Gallon Hydraulic Capacity
5 HP Hydraulic Drive Motor
0 -36″ CNC Controlled Barfeed Projection
Unlimited Shuttle Indexes
Hydraulic Positioned Guide Arm
Powered Blade Brush
Blade Break/Stall Switch
CNC Programmable Controlled with Color Touch Screen
500+ Job Selection
Automiatc Kerf Compensation
Electrics Wired to NFPA 79 Machine Tool Standards
Mechanical Specifications:
Dimensions: 170″ x 102″ x 105″ H
Shipping Weight: approx. 11,400 lbs.
FOB Factory – Contact us for Availability
