Description

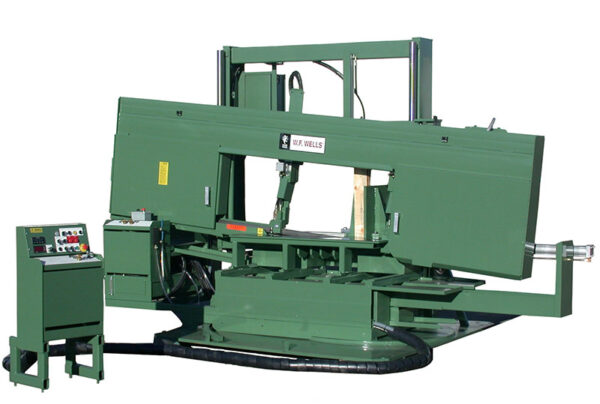

W.F. Wells 22″ x 48″ Semi-Automatic Mitering Band Saw, M-36-3
Inventory # 8012
Model: M-36-3
Made in USA
Specifications:
Capacity:
Rectangular:
@ 90°: 22″ x 48″
@ -45°: 22″ x 36″
@ +45°: 22″ x 31 1/2″
Weight Capacity: 15,000 lbs.
Blade Speed: 60 – 500 FPM
Blade Size: 342″ x 2″ x .063″
Band Wheel Size: 26″
Sawing Force: 0 – 1,000 lbs.
Work Height: 34″
Outfeed Table: 7″ x 52″
Motor: 15 HP / 208v, 230v, 460v / 3ph
Standard Features:
Spring Tensioned Carbide Blocks with Idle Roller Back-up Blade Guide
Hydraulic Blade Tension
Hydraulic Vise
15 Gallon Coolant Capacity
20 Gallon Hydraulic Capacity
5 HP Hydraulic Drive Motor
Hydraulic Positioned Guide Arm
Hydraulic Powered Blade Brush
Hydraulic Hold Down, Saw Vise
Hydraulic Swivel Base with Miter Vise
Digital Angle Display
In Feed Roller
Free Standing Control Console
Blade Break/Stall Switch
Electronic Door Interlocks
Electrics Wired to NFPA 79 Machine Tool Standards
Mechanical Specifications:
Dimensions: 200″ x 98″ x 105″ H
Shipping Dimensions: approx. 12,000 lbs.
FOB Factory – Contact us for Availability
