Description

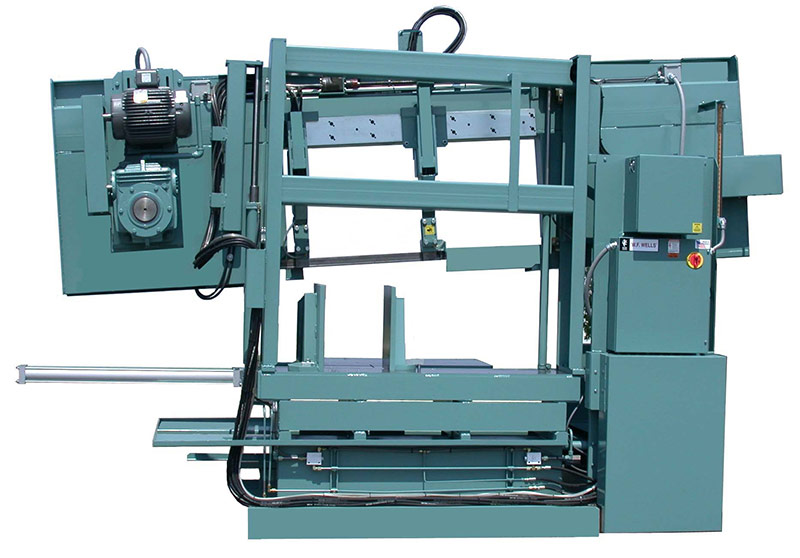

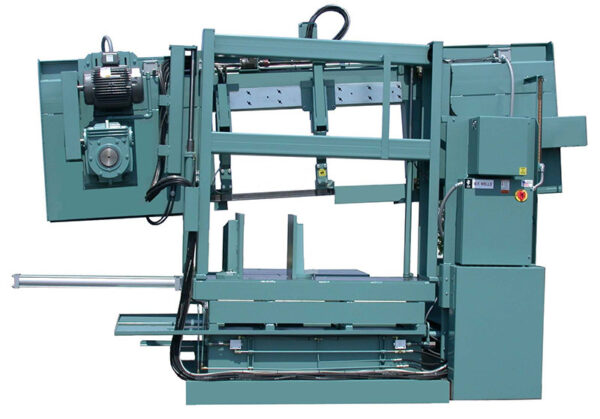

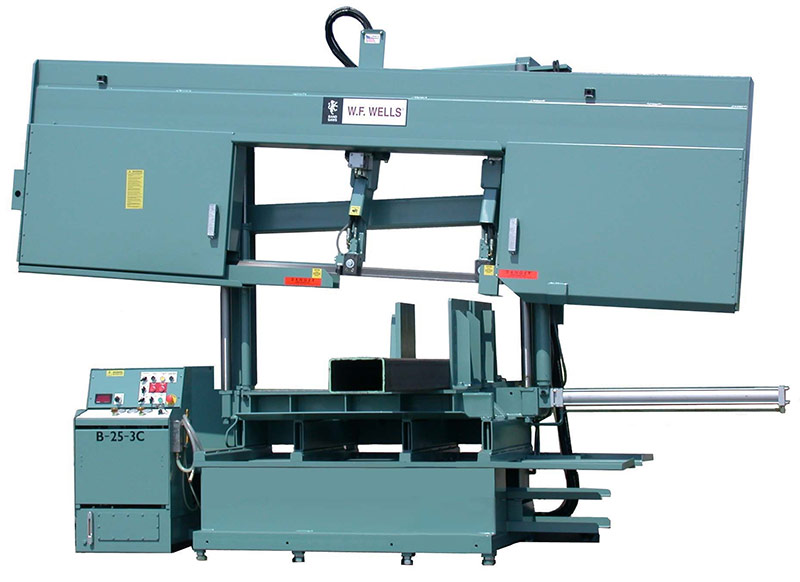

W.F. Wells 22″ x 40″ Semi-Automatic Horizontal Band Saw with a 6° Cant, B25-3C
Inventory # 8002
Model: B25-3C
Made in USA
Specifications:
Capacity:
Round:
@ 90°: 25″
Rectangular:
@ 90°: 22″ x 40″
@ 45°: 22″ x 24″
Square:
@ 90°: 24″
Weight Capacity: 15,000 lbs.
Blade Speed: 60 – 500 FPM
Blade Size: 318″ x 2″ x .063″
Bandwheel Size: 26″
Sawing Force: 0 – 1,000 lbs.
Work Height: 34″
Vise Jaw Height: 17″
Outfeed Table: 24″ x 40″
Motor: 15 HP / 208v, 230v, 460v / 3ph
Standard Features:
Spring Tensioned Carbide Blocks with Idle Roller Backup Blade Guide
Hydraulic Blade Tension
Hydraulic Vise
15 Gallon Coolant Capacity
20 Gallon Hydraulic Capacity
5 HP Hydraulic Drive Motor
Hydraulic Positioned Guide Arm
Hydraulic Powered Blade Brush
Blade Tension Indicator
Blade Break/Stall Switch
Electronic Door Interlocks
Electrics Wired to NFPA 79 Machine Tool Standards
Mechanical Specifications:
Dimensions: 170″ x 55″ x 105″ H
Shipping Weight: approx. 7,500 lbs.
FOB Factory – Contact us for Availability
