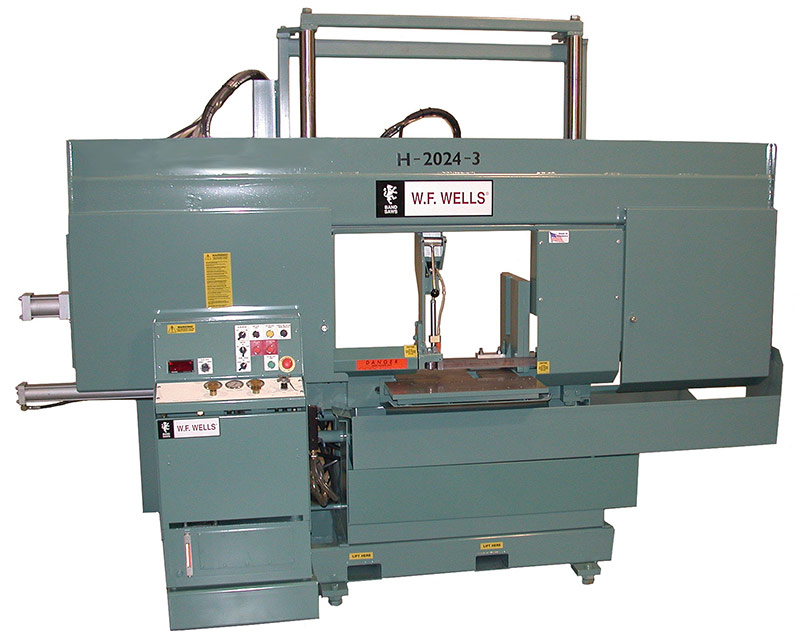

W.F. Wells 20″ x 24″ Horizontal Band Saw, H2024-3
Inventory # 7997
Model: H2024-3
Made in USA
Specifications:
Capacity:
Round:
@ 90°: 20″
Rectangular:
@ 90°: 20″ x 24″
Weight Capacity: 5,000 lbs.
Blade Speed: 60 – 500 FPM
Blade Size: 200″ x 1 1/2″ x .050″
Bandwheel Size: 22″
Sawing Force: 0 – 750 lbs.
Work Height: 35″
Motor: 10 HP / 208v, 230v, 460v / 3ph
Standard Features:
Roller Guides with Carbide Inserts Blade Guide
Hydraulic Blade Tension
Full Stroke, Hydraulic 15″ Vise
AC Vector Drive
15 Gallon Coolant Capacity
20 Gallon Hydraulic Capacity
2 HP Hydraulic Drive Motor
Electrics Wired to NFPA 79 Machine Tool Standards
Mechanical Specifications:
Dimensions: 103″ x 50″ x 93″ H
Shipping Weight: approx. 3,900 lbs.
FOB Factory – Contact us for Availability
