Description

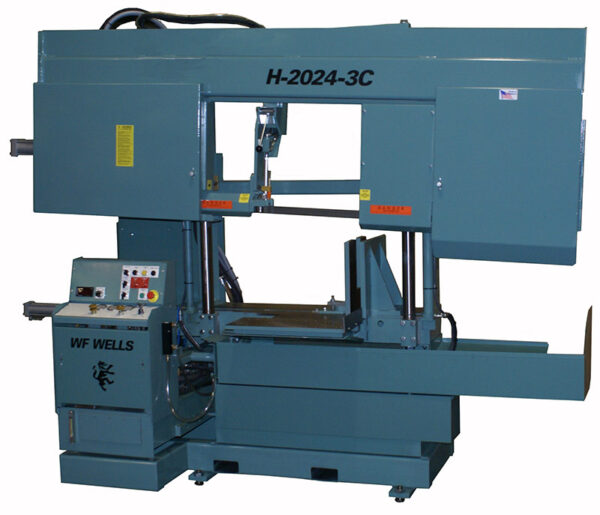

W.F. Wells 19 1/2″ x 24″ Horizontal Band Saw with 3° Cant, H2024-3C
Inventory # 7998
Model: H2024-3C
Made in USA
Specifications:
Capacity:
Round:
@ 90°: 20″
Rectangular:
@ 90°: 19 1/2″ x 24″
Weight Capacity: 5,000 lbs.
Blade Speed: 60 – 500 FPM
Blade Size: 200″ x 1 1/2″ x .050″
Bandwheel Size: 22″
Sawing Force: 0 – 750 lbs.
Work Height: 35″
Motor: 10 HP / 208v, 230v, 460v / 3ph
Standard Features:
Variable, Hydraulic Sawing Feed
Rollers and Carbide Side Blocks Blade Guide
Manual with Indicator Blade Tension
Manual 8 1/2″ Vise
15 Gallon Coolant Capacity
3/4 Gallon Hydraulic Capacity
1/3 HP Hydraulic Drive Motor
Electrics Wired to NFPA 79 Machine Tool Standards
Mechanical Specifications:
Dimensions: 103″ x 50″ x 93″ H
Shipping Weight: approx. 3,900 lbs.
FOB Factory – Contact us for Availability
