Description

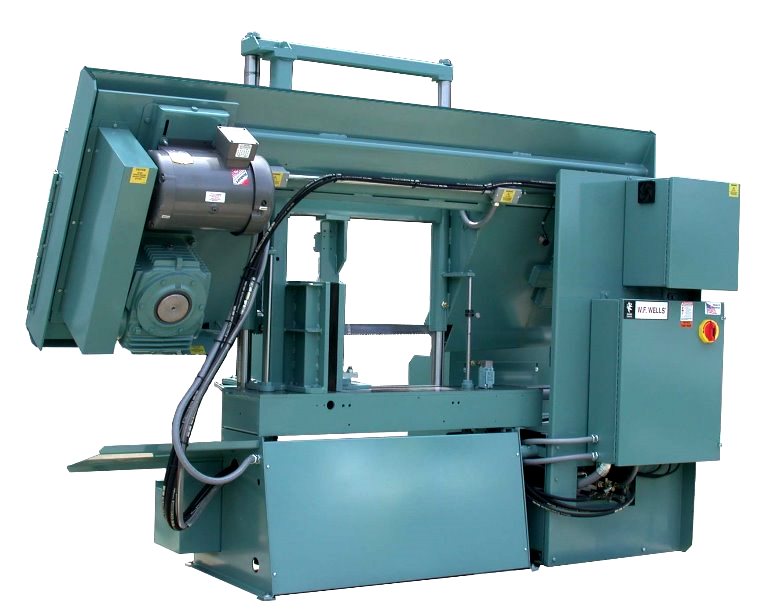

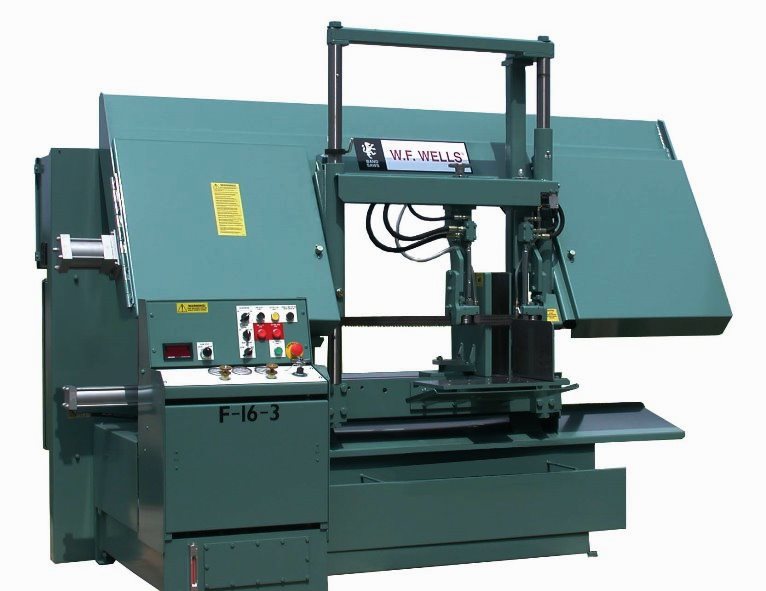

W.F. Wells 17″ x 20″ Hydraulic “Twin-Post” Band Saw, F-16-3
Inventory # 5830
Model: F-16-3
Made in USA
Specifications:
Capacity:
Round:
@ 90°: 17″
Rectangular:
@ 90°: 17″ x 20″
Weight Capacity: 5,000 lbs.
Blade Speed Range: 60 – 500 FPM
Blade Size: 200″ x 1 1/2″ x .050″
Bandwheel Size: 22″
Sawing Pressure: 0 – 500 lbs.
Work Height: 35″
Motor: 10 HP / 208v, 230v, 460v / 3ph
Standard Features:
1 1/2″ Bi-Metal Blade
Carbide Guides with Backup Rollers
Hydraulic Vise with Variable Pressure
Hydraulic Blade Tension
Semi-Automatic Operation
Built-In Coolant System
Console Controlled Blade Speed
Blade Powered Rotary Cleaning Brush
Fused Disconnect with Lockout
Automatic End-of-Cut Shut Down
Quick and Easy Blade Speed Change
Blade Speed and Work Selector Chart
Feed Pressure Monitor/Regulator
All Safety Guards with Door Interlocks
Operator Manual and Parts List
Factory Trained Start-Up Instructions
Mechanical Specifications:
Dimensions: 101″ x 48″ x 88″ H
Shipping Weight: approx. 3,200 lbs.
FOB Factory – Contact us for Availability
