Description

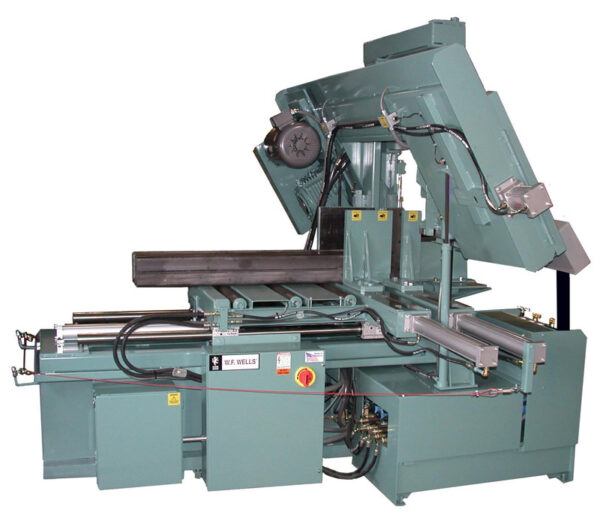

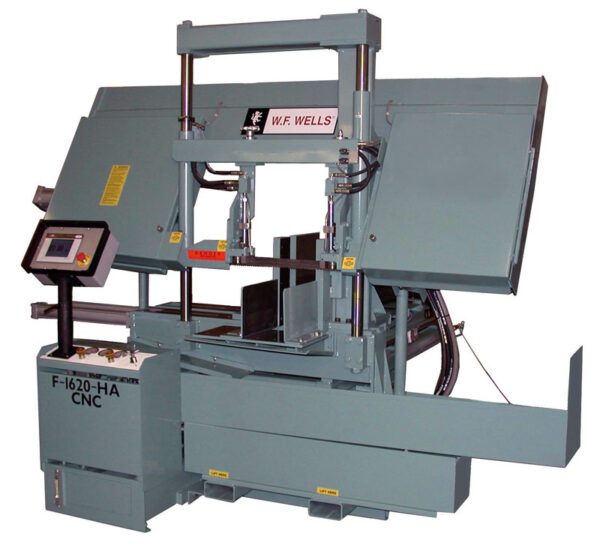

W.F. Wells 17″ x 20″ Automatic Horizontal CNC Band Saw, F-1620HA CNC
Inventory # 8008
Model: F-1620HA CNC
Made in USA
Specifications:
Capacity:
Round:
@ 90°: 17″
Rectangular:
@ 90°: 17″ x 20″
Weight Capacity: 5,000 lbs.
Blade Speed: 60 – 500 FPM
Blade Size: 200″ x 1 1/2″ x .050″
Bandwheel Size: 22″
Sawing Force: 0 – 750 lbs.
Work Height: 35″
Projection Accuracy: +/- .002″
Remnant End: 4″
Motor: 10 HP / 208v, 230v, 460v / 3ph
Standard Features:
Roller Guides with Carbide Inserts Blade Guide
Hydraulic, Full Stroke 15″ Vise
Hydraulic Blade Tension
AC Vector Drive
15 Gallon Coolant Capacity
20 Gallon Hydraulic Capacity
2 HP Hydraulic Drive Motor
0 – 25″ CNC Controlled Barfeed Projection
Unlimited Shuttle Indexes
CNC Programmable Controller with Color Touch Screen
500+ Job Selection
Automatic Kerf Compensation
Blade Break/Stall Switch
Bed and Vise Wear Strips
Electrics Wired to NFPA 79 Machine Tool Standards
Mechanical Specifications:
Dimensions: 104″ x 101″ x 88″ H
Shipping Weight: approx. 4,500 lbs.
FOB Factory – Contact us for Availability
