Description

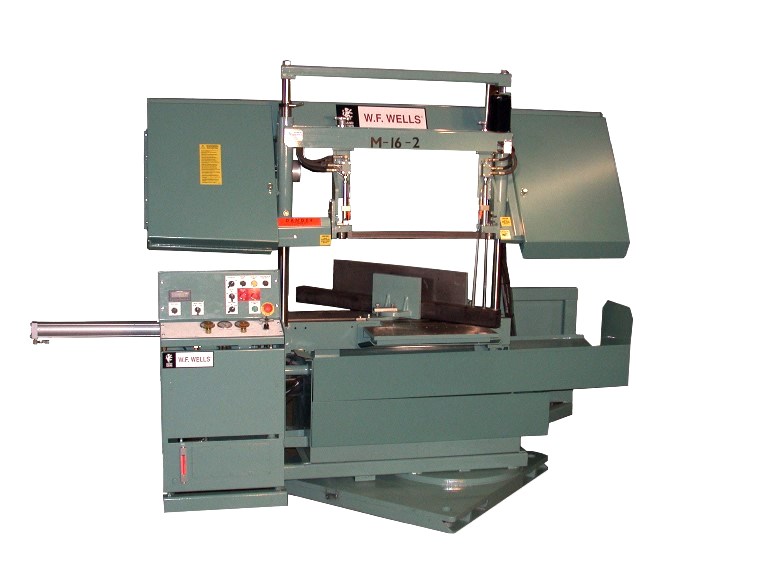

W.F. Wells 16″ x 26″ Hydraulic “Twin-Post” Miter Band Saw, M-16-2
Inventory # 5839
Model: M-16-2
Made in USA
Specifications:
Capacity:
@ 90°: 16″ x 26″
@ -45°: 16″ x 16″
Weight Capacity: 5,000 lbs.
Blade Speed: 60 – 500 FPM
Blade Size: 200″ x 1 1/4″ x .042″
Bandwheel Size: 20″
Sawing Force: 0 – 750 lbs.
Work Height: 35″
Motor: 7.5 HP / 208v, 230v, 460v, 575v / 3ph
Standard Features:
Hydraulic Swivel Base with Miter Vise, Single Direction
Semi-Automatic Operation
Blade Powered Rotary Cleaning Brush
Fused Disconnect with Lock-Out
1 1/4″ Bi-Metal Blade
Digital Angle Display
In-Feed Roller, Back of Saw Bed
Electronic Door Interlocks
Built-In Coolant System
All Safety Guards
Operator Manual and Parts List
Mechanical Specifications:
Dimensions: 120″ x 60″ x 90″ H
Shipping Weight: approx. 3,800 lbs.
FOB Factory – Contact us for Availability
