Description

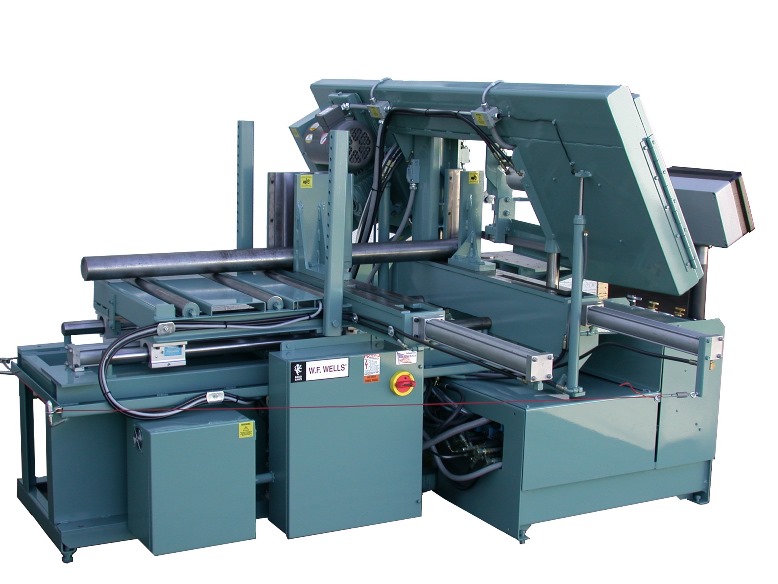

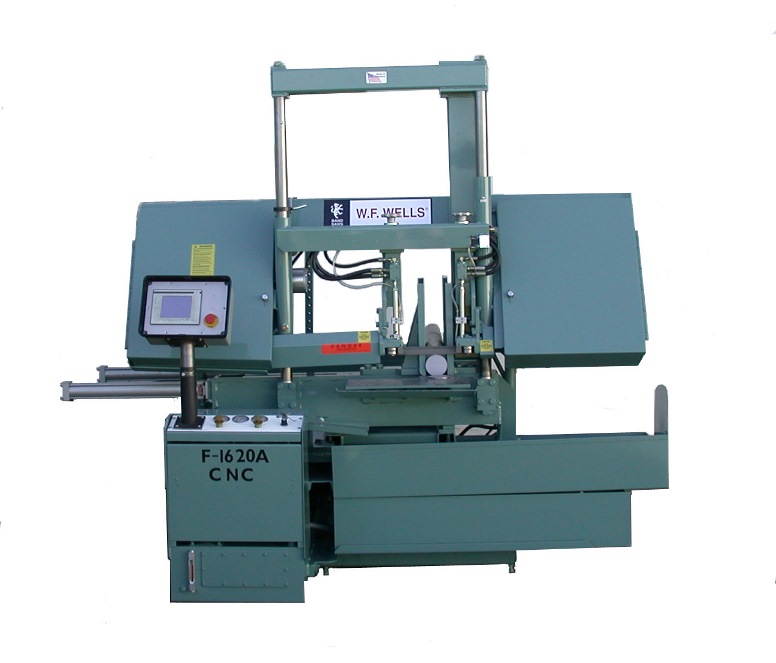

W.F. Wells 16″ x 20″ CNC Automatic “Twin-Post” Band Saw, F-1620-A CNC
Inventory # 5838
Model: F-1620-A CNC
Made in USA
Specifications:
Capacity:
Round:
@ 90°: 16″
Rectangular:
@ 90°: 16″ x 20″
Weight Capacity: 5,000 lbs.
Blade Speed: 60 – 500 FPM
Blade Size: 180″ x 1 1/4″ x .042″
Vise: Hydraulic, Full Stroke, 15″ High
Bandwheel Size: 20″
Sawing Force: 0 – 750 lbs.
Work Height: 35″
Barfeed Projection: 0 – 25″ CNC Controlled
Projection Accuracy: +/- .002″
Remnant End: 4″
Motor: 7.5 HP / 208v, 230v, 460v, 575v / 3ph
Standard Features:
CNC Programmable Controlled with Color Touch Screen
500+ Job Selection
Automatic Kerf Compensation
Fully-Automatic Operation
1 1/4″ Bi-Metal Blade
Bed and Vise Wear Strips
Built-In Coolant System
Blade Break/Stall Switch
All Safety Guards
Operator Manual and Parts List
Mechanical Specifications:
Dimensions: 104″ x 101″ x 88″ H
Shipping Weight: approx. 4,000 lbs.
FOB Factory – Contact us for Availability
