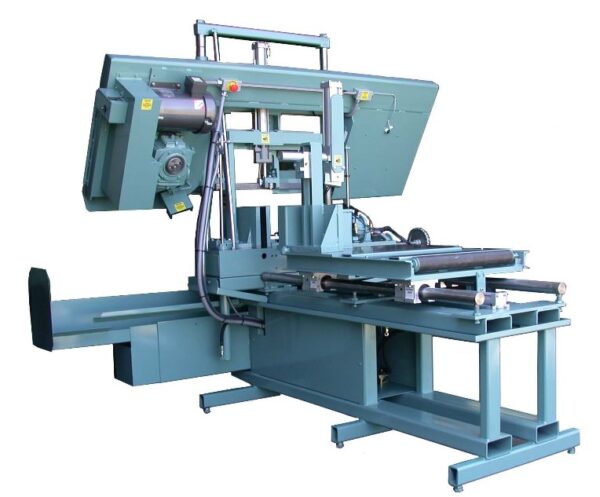

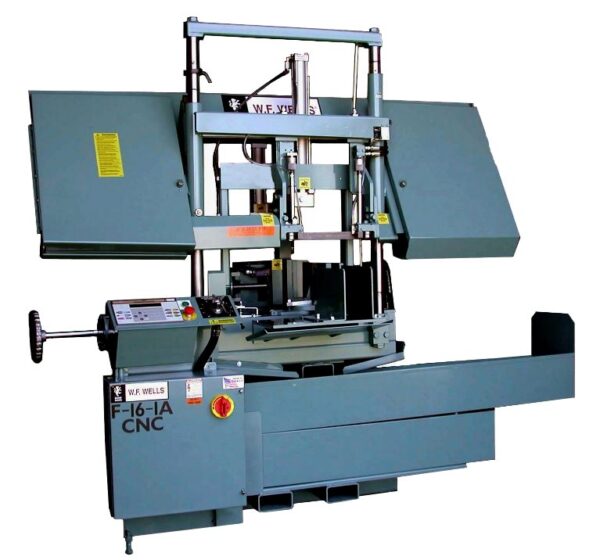

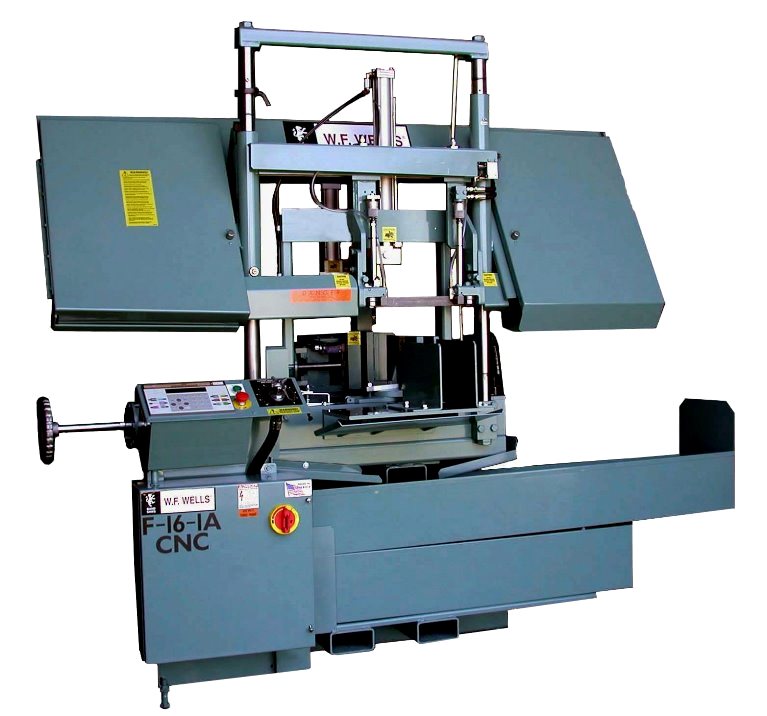

W.F. Wells 16″ x 18″ CNC Automatic “Twin-Post” Band Saw, F-16-1A CNC

$47,150.00


Shipping: Add to Cart to Calculate

SKU: F-16-1A CNC

Inventory #: 5835

Categories: , ,

Condition:

Type:

Brand:

Description

W.F. Wells 16″ x 18″ CNC Automatic “Twin-Post” Band Saw, F-16-1A CNC

Inventory # 5835

Model: F-16-1A CNC

Made in USA

Specifications:

Capacity:

Round:

@ 90°: 16″

Rectangular:

@ 90°: 16″ x 18″

Weight Capacity: 5,000 lbs.

Blade Speed: 60 – 425 FPM

Blade Size: 180″ x 1 1/4″ x .042″

Vise: Air, 8 1/2″ High

Bandwheel Size: 20″

Sawing Force: 30 – 120 lbs.

Work Height: 35″

Barfeed Projection: Hydraulic 0 – 25″ CNC Controlled

Projection Accuracy: +/- .002″

Remnant End: 12″

Tipoff Worktable: 19 1/2″ x 15 1/2″

Motor: 7.5 HP / 208v, 230v, 460v, 575v / 3ph

Standard Features:

CNC Programmable Controller with Digital Membrane Screen

Machine Diagnostics and Programming Prompting

99+ Job Selection

Automatic Kerf Compensation

Fully-Automatic Operation

1 1/4″ Bi-Metal Blade

Built-In Coolant System

Blade Break/Stall Switch

Forklift Pockets in Base

Tip-Off Work Table

All Safety Guards

Fork Lift Pockets in Base

Operator Manual and Parts List

Mechanical Specifications:

Dimensions: 93″ x 90″ x 86″ H

Shipping Weight: approx. 3,250 lbs.

FOB Factory – Contact us for Availability

Additional information

Weight 3250 lbs
