Description

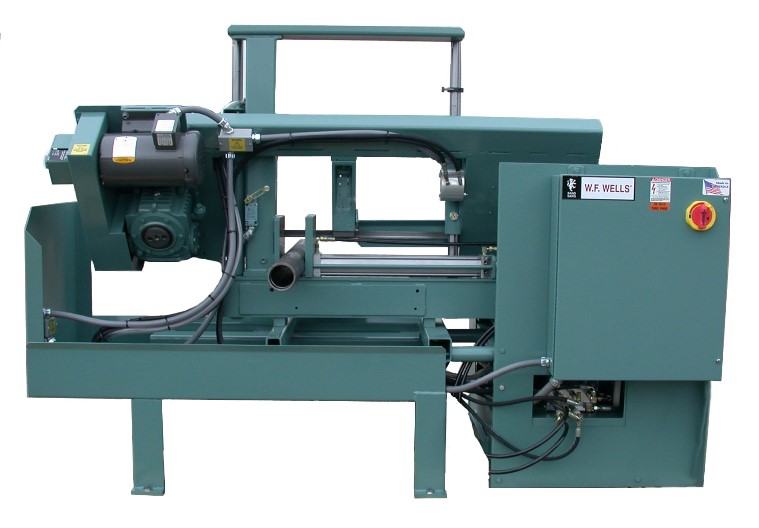

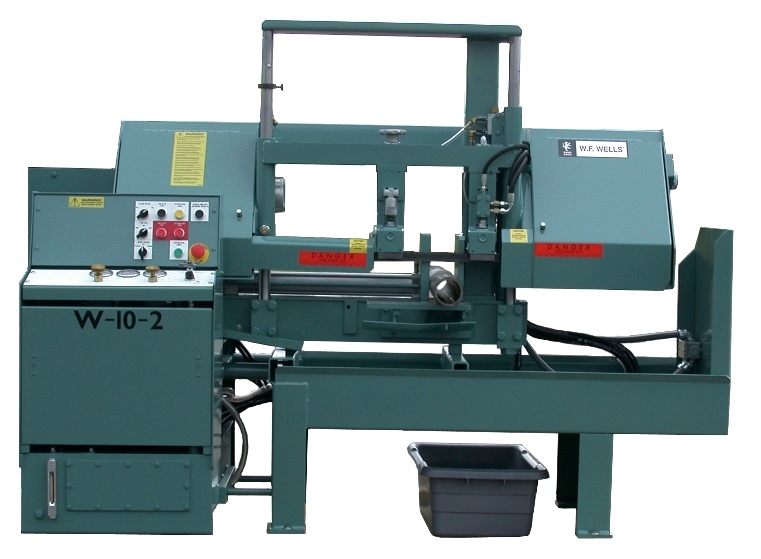

W.F. Wells 10″ x 17″ Hydraulic “Twin-Post” Tool Room Band Saw, W-10-2
Inventory # 5828
Model: W-10-2
Made in USA
Specifications:
Capacity:
Round:
@ 90°: 10″
@ 45°: 7 1/2″
Rectangular:
@ 90°: 10″ x 17″
@ 45°: 10″ x 7 1/2″
Weight Capacity: 5,000 lbs.
Blade Speed: 60 – 500 FPM
Blade Size: 143″ x 1″ x .035″
Bandwheel Size: 14 1/2″
Sawing Force: Hydraulic, 0 – 750 lbs.
Work Height: 26″
Motor: 5 HP / 208v, 230v, 460v / 3ph
Standard Features:
1″ Bi-Metal Blade
Carbide Guide Blocks
Hydraulic Vise
Hydraulic Blade Pressure Control
Hydraulic Blade Tension Control
Blade Tension Indicator
Semi-Automatic Operation
TEFC Motors
Fused Disconnect
Built-In Coolant System
Blade Powered Rotary Cleaning Brush
Feed Pressure Monitor/Regulator
All Safety Guards
Console Controlled Blade Speed, AC Drive
Gear Box Oil
Hydraulic Oil
Operator Manual and Parts List
Mechanical Specifications:
Dimensions: 97″ x 49″ x 65″ H
Shipping Weight: approx. 1,975 lbs.
FOB Factory – Contact us for Availability
