Description

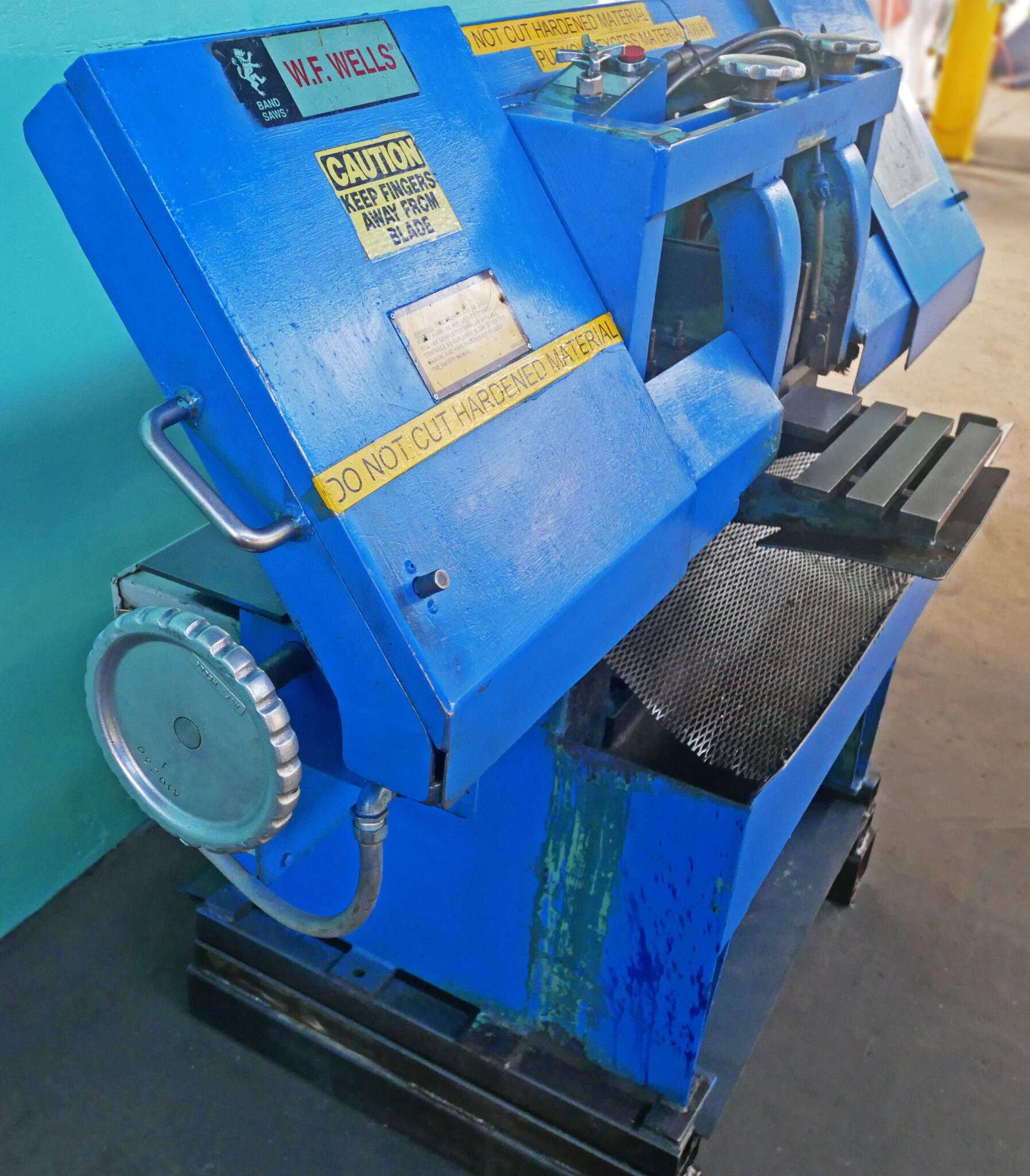

W.F. Wells 10″ x 16″ Horizontal Band Saw, L-10
Inventory # 9621
Model: L-10
S/N: 652
Made in USA
Specifications:
Capacity:
Round:
@ 90°: 11″
@ 45°: 7 3/4″
Rectangular:
@ 90°: 10″ x 16″
@ 45°: 10″ x 8″
Weight Capacity: 2,000 lbs.
Blade Speed: 70 – 380 FPM
Blade Size: 138″ x 1″ x .035″
Band Wheel Size: 14 1/2″
Work Height: 28 1/4″
Motor: 3 HP / 110v, 208v, 230v / 1ph (Pre-Wired 110v)
Standard Features:
Variable Hydraulic Sawing Feed
Variable Counterbalanced Sawing Force
Carbide Blade Guide
Manual Blade Tension
Manual Vise
10 Gallon Coolant Capacity
Magnetic Motor Starter
Wired to NFPA 79 Machine Tool Standards
Mechanical Specifications:
Dimensions: 81″ x 43″ x 63″ H
Shipping Weight: approx. 850 lbs.
New Replacement Cost: $11,875.00
FOB Our Baltimore, MD Warehouse
