Description

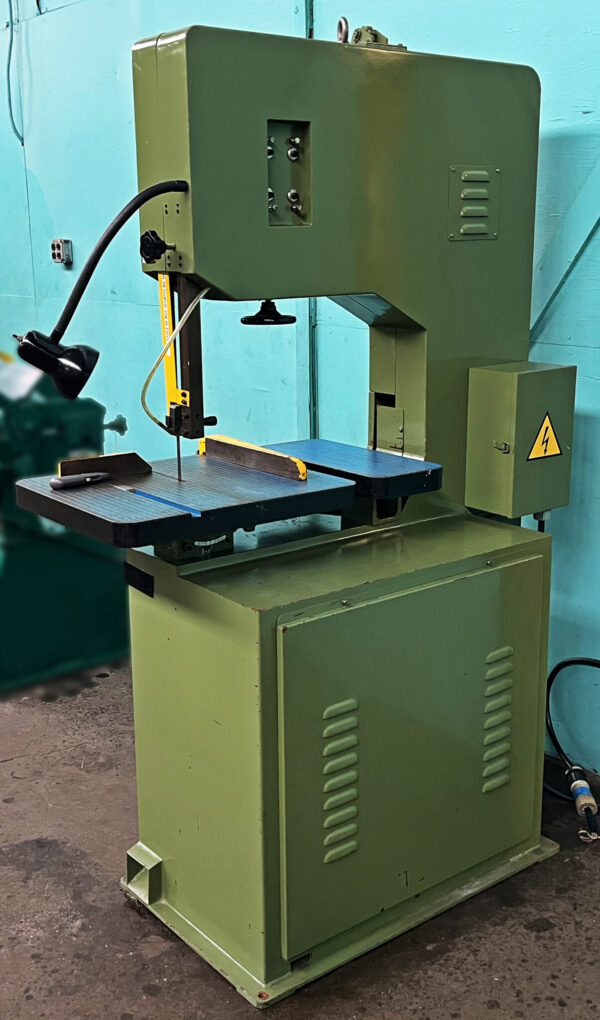

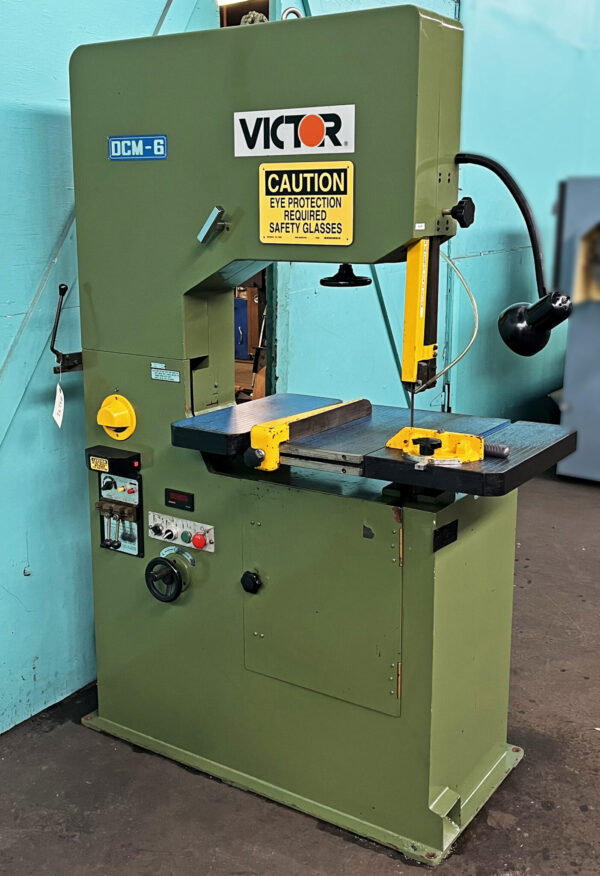

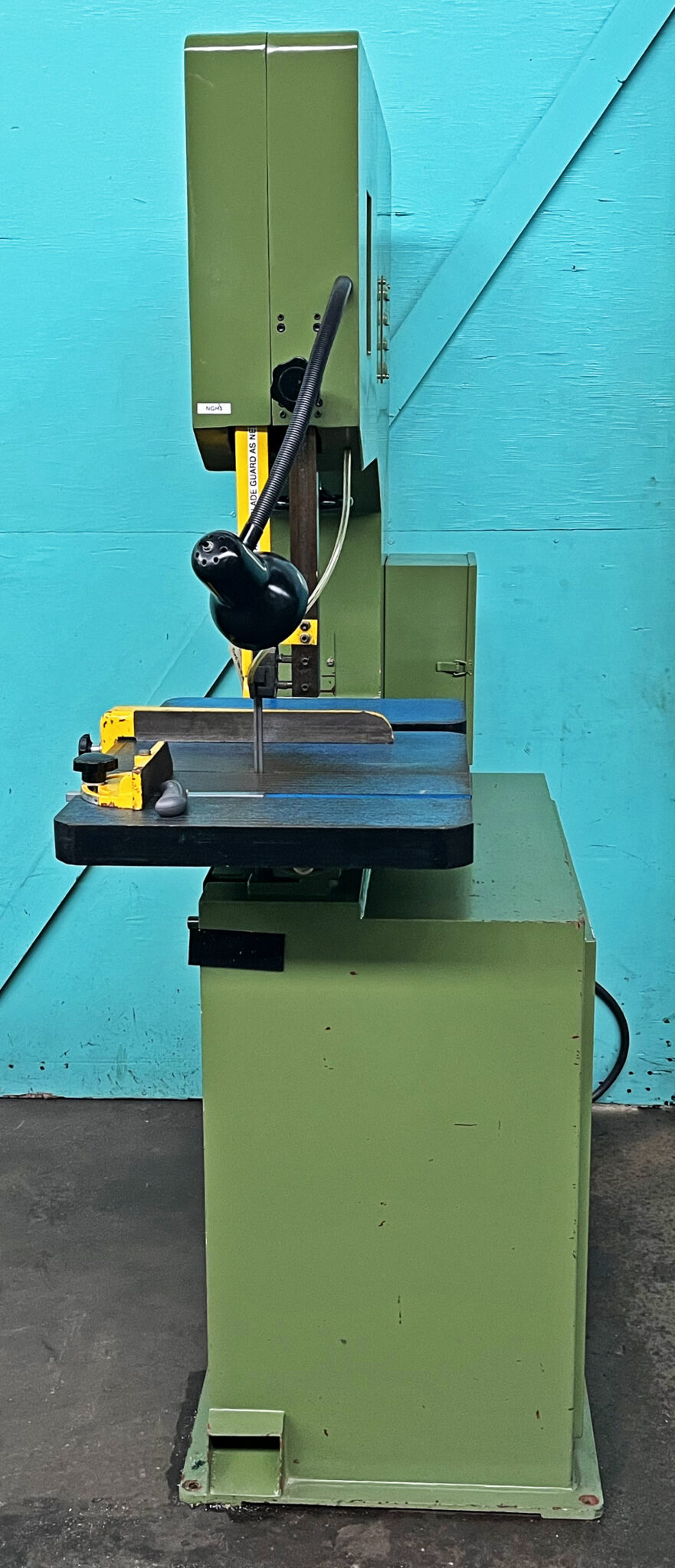

Victor 24″ Vertical Band Saw with Blade Welder, DCM-6TS
Inventory # 9291
Model: DCM-6TS
S/N: V60263
Specifications:
Throat Depth: 24″
Height Under Guide: 12″
Table Size: 23 1/2″ x 19 1/2″
Height of Table: 40″
Saw Blade Speed:
Low: 65 – 265 FPM
High: 400 – 1,600 FPM
Wheel Diameter: (2) 16 1/2″, (1) 12″
Blade Size: 155 1/2″ x 5/8″
Motor: 2 HP / 220v / 3ph
Standard Features:
Machine Frame is Modern Designed, Completely Enclosed Steel Construction
2-Speed Transmission is Powered by Enclosed Gears Running in Continuous Bath of Oil, Together with Infinite Vari-Speed Control Unit

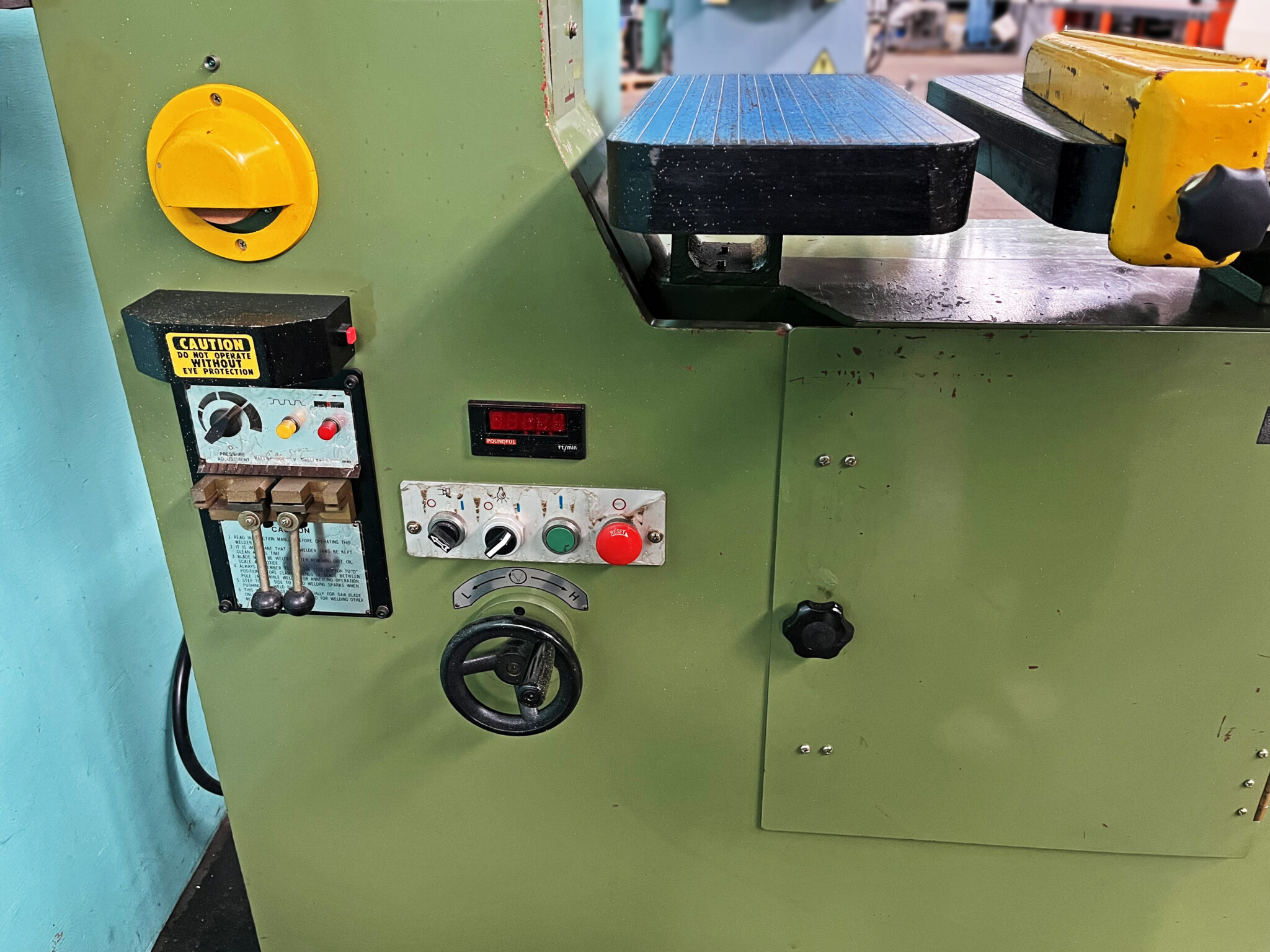

Convenient Blade Speed Tachometer Shows Correct Speed in FPM
Easy, Quick Adjustable Blade Guides Firmly Support the Blade Right Down to Work
Butt Welder and Annealing Unit Provide Easy Welding Work

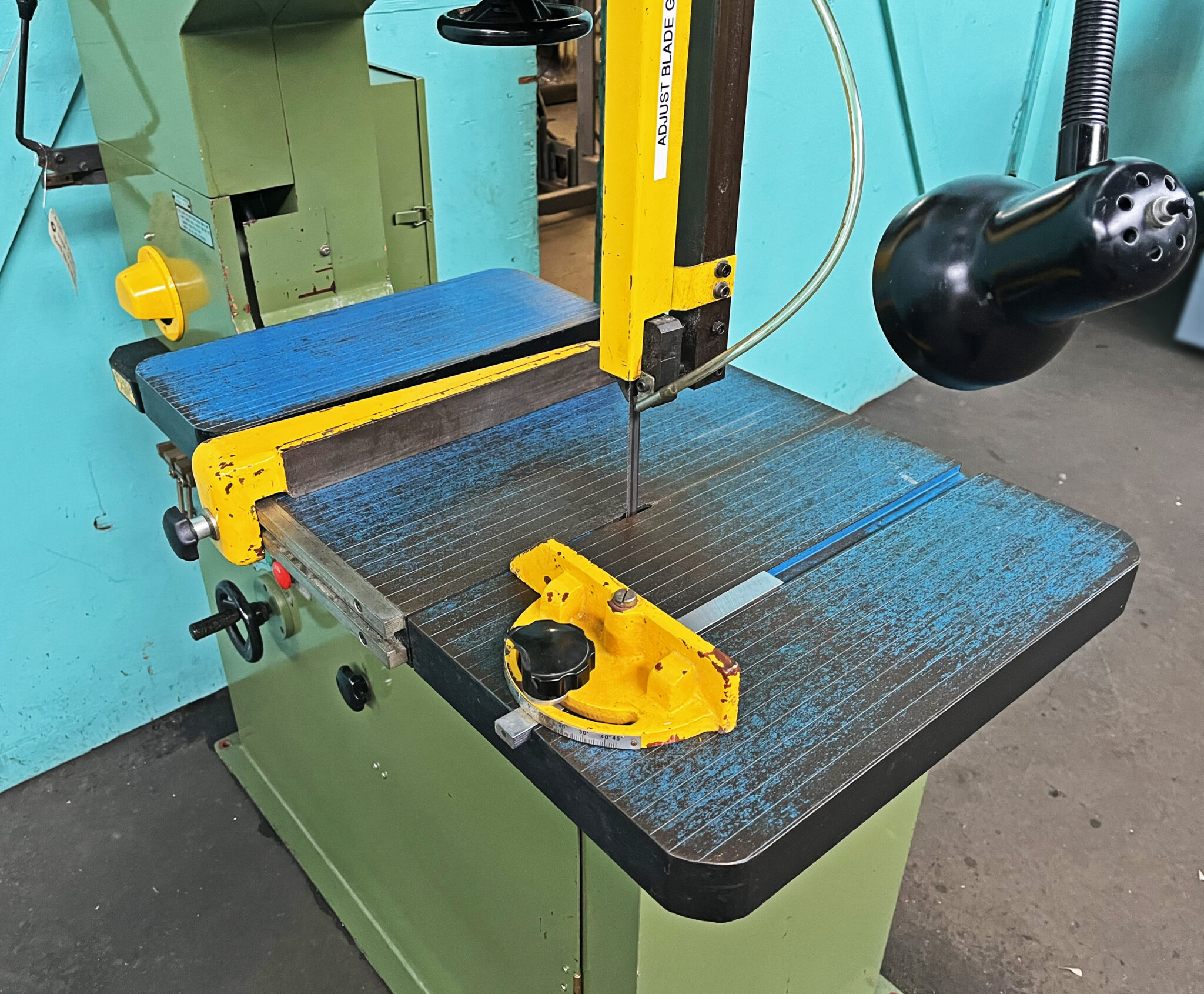

Heavy Cast Iron, 4-Way Tilting Table. Approx. 15 Degrees to the Left and Right, Front and Back
Miter Gauge

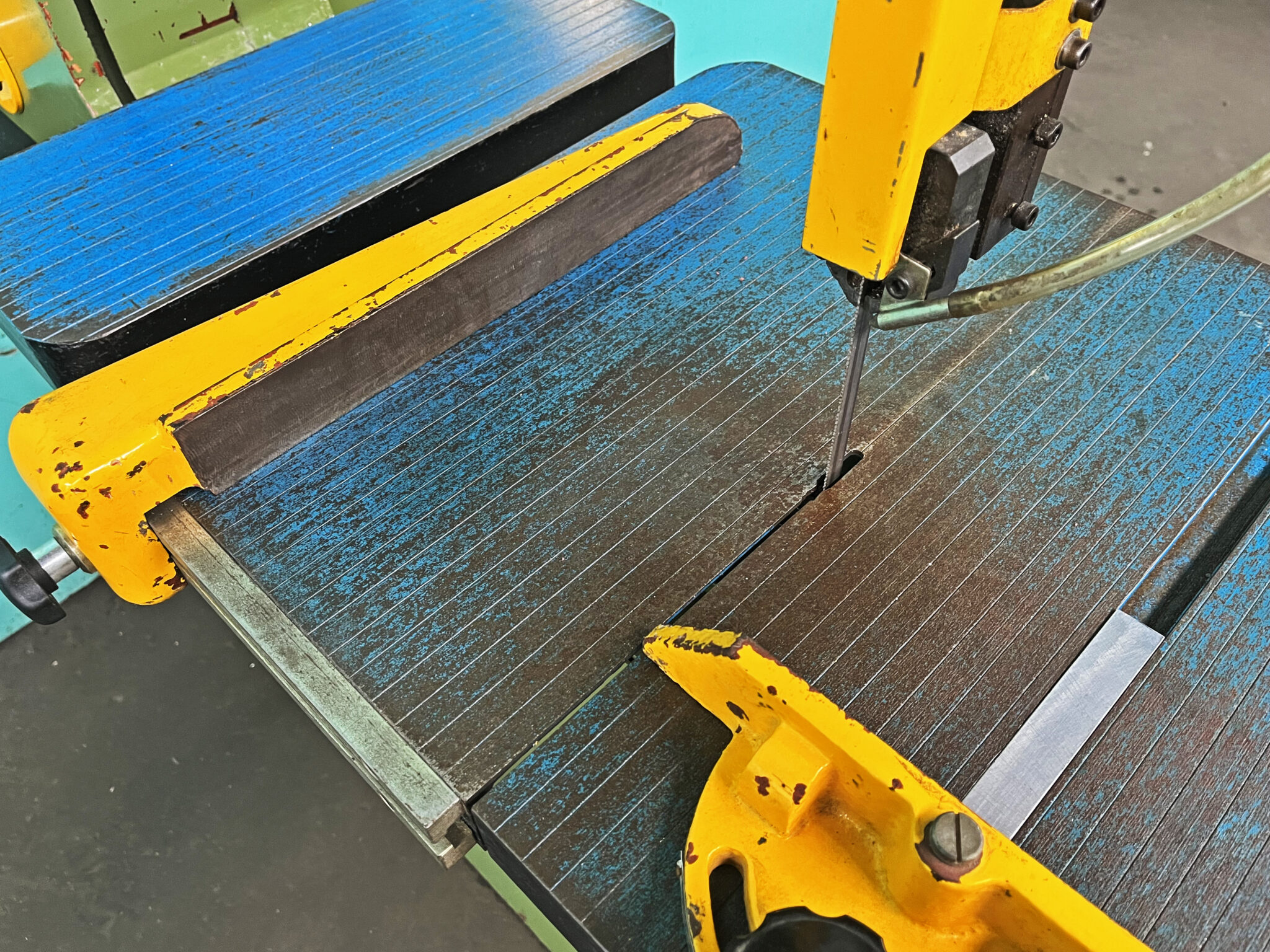

Rip Fence
Mechanical Specifications:
Dimensions: 56″ x 30″ x 85″ H
Weight: approx. 1,810 lbs.
FOB Our Baltimore, MD Warehouse
