Victor 15″ CNC Toolroom Lathe, 1118DCL

Shipping: Add to Cart to Calculate

SKU: 1118DCL

Inventory #: 7705

Category:

Condition:

Type:

Brand:

Description

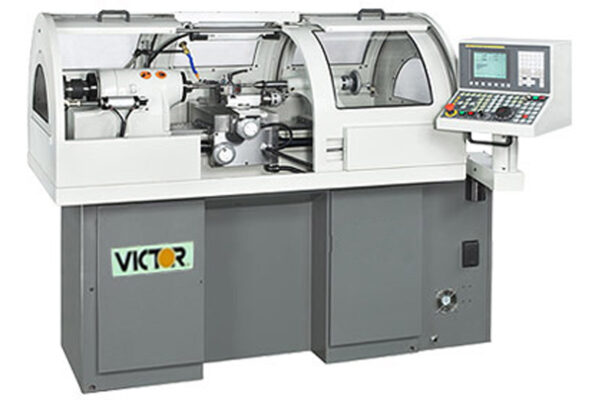

Victor 15″ CNC Toolroom Lathe, 1118DCL

Inventory # 7705

Model: 1118DCL

Description:

A powerful multi-function super precision CNC toolroom lathe comes with a smooth 3 HP inverter spindle motor that runs virtually vibration free and extremely quiet

Specifications:

Capacity:

Max. Swing: 14.96″

Max. Turning Diameter: 6″

Distance Between Centers: 18″

Spindle Capacity:

With Jaw Chucks: 6″

With Expanding Collets: 3″

With Round 5C Collets: 1 1/16″

With Hexagon 5C Collets: 7/8″

With Square 5C Collets: 3/4″

With Step Chucks: 1 1/16″ – 6″

Spindle Nose I.D./O.D.: 5C / 4° Taper

Hole Through Spindle: 1 1/4″

Spindle Speeds: 50 – 4,000 RPM

Travels and Rapids:

Quick-Action Compound Slide Travel: 0.1″

Max. Cross Slide Travel (X-Axis): 8.66″

Max. Longitudinal Travel (Z-Axis): 13.39″

Rapid Traverse (X/Z-Axis): 787 IPM

Tailstock:

Tailstock Taper Center: M.T. # 2

Tailstock Quill Diameter: 1.36″

Tailstock Quill Travel: 3 3/4″

Inverter Spindle Motor: 3 HP / 220v / 3ph (Optional 5 HP Upgrade)

Standard Features:

Fanuc 0i-TF (Type 3) CNC Control

Spindle runout within 50 millionths

Main casting pieces are Meehanite castings for superior dampening and rigidity

Precision ball screw on X, Z-axes

X, Z-axis feed is driven by an AC servo motor

X, Z-axis ball screws directly coupled to AC servo motor, minimizing backlash

Hardened and ground bed ways

Hardened and ground spindle mounted on high precision preloaded angular contact ball bearings

Turcite-B slideway bearing surface between carriage and bed to provide wear resistance

5C lever type collet closer

Rigid manual tailstock with inch/metric graduations

Halogen work light

Coolant system

Set of leveling pads, screws, and nuts

Operating manual and parts list

Full one year parts warranty on machine and CNC control

Mechanical Specifications:

Shipping Dimensions: 88″ x 44″ x 85″ H

Shipping Weight: approx. 2,860 lbs.

Contact us for special pricing and availability

FOB Factory

Optional Equipment:

5 HP Motor Upgrade (50 – 6,000 RPM): POR

Additional information

Weight 2860 lbs
Dimensions 88 × 44 × 85 in
