Description

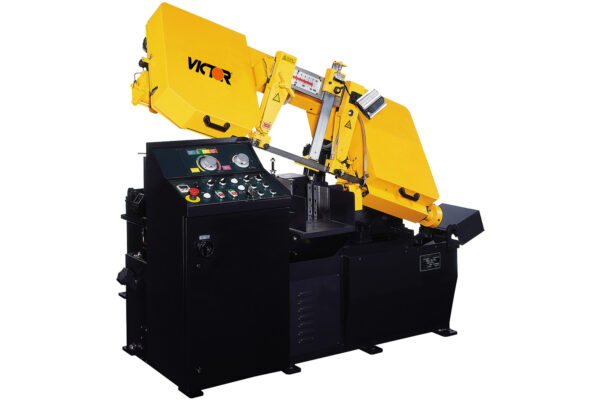

Victor 12″ Auto Shuttle Vise Horizontal Band Saw, 300H
Inventory # 6559
Model: 300H
Specifications:
Capacity:
Round @ 90°: 12″
Rectangular @ 90°: 10″ x 12″
Saw Blade:
Speed: 65 – 330 FPM
Size: 150″ x 1.3″ x .042″
Tension: Hydraulic
Guides: Roller Bearing Carbide Guides
Cleaning: Powered Wire Brush & Flood Coolant
Blade Motor: 5 HP / 3ph
Hydraulic Motor: 1 HP
Coolant Pump Motor: 1/8 HP
Standard Features:
Pivot type bandsaw
Hydraulic dual-vise clamping system
Shuttle type automatic feed
Roller bearing / carbide blade guide system
Preset cut counter with shut off
Out-of-stock shut off
Automatic work height control and fast approach
Infinitely variable speed control by inverter
Power driven wire brush
Hydraulic blade tension
Floating shuttle vise
PLC control for all electric and hydraulic functions
Nesting fixture for bundle cutting
Split front vise
Idler wheel motion detector with blade stalling and breakahe shut off
Cutting fluid flushing hose for machine cleaning
Multiple indexing (9 times)
Full stroke vise clamping system
Automatic chip conveyor
Halogen work light
Mechanical Specifications:
Dimensions: 81″ x 87″ x 75″ H
Shipping Weight: approx. 3,740 lbs.
Contact us for special pricing and availability
FOB Factory
