Description

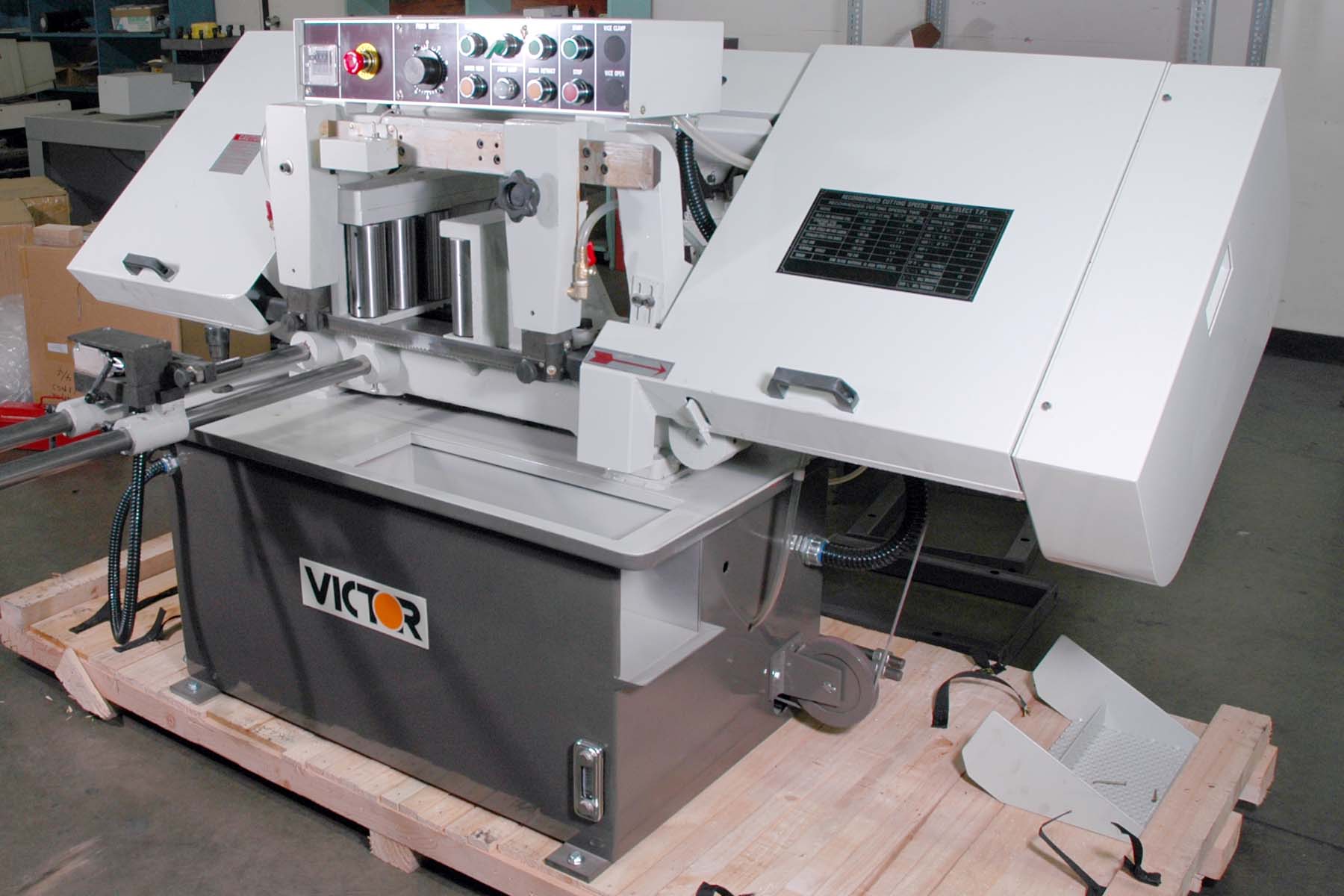

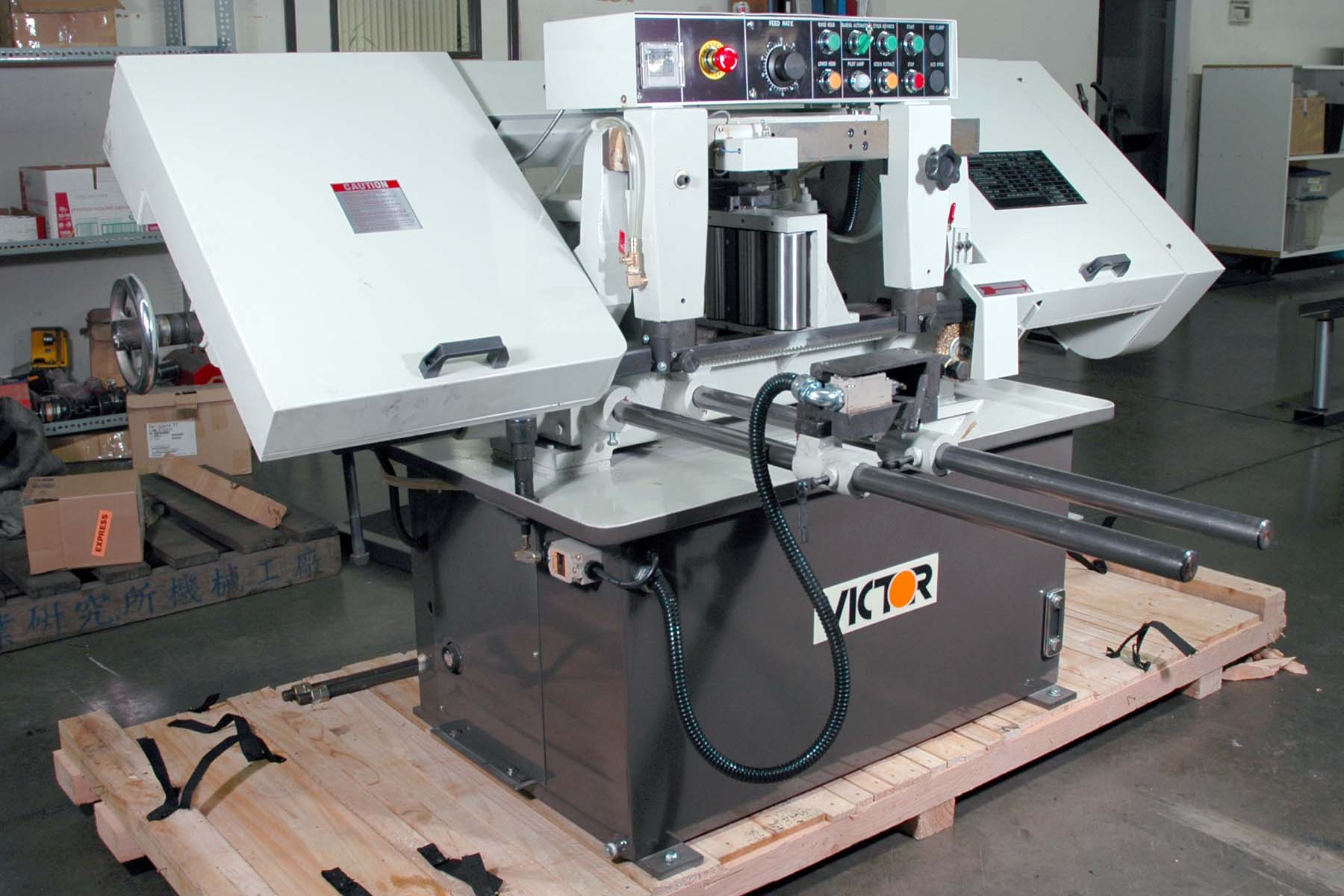

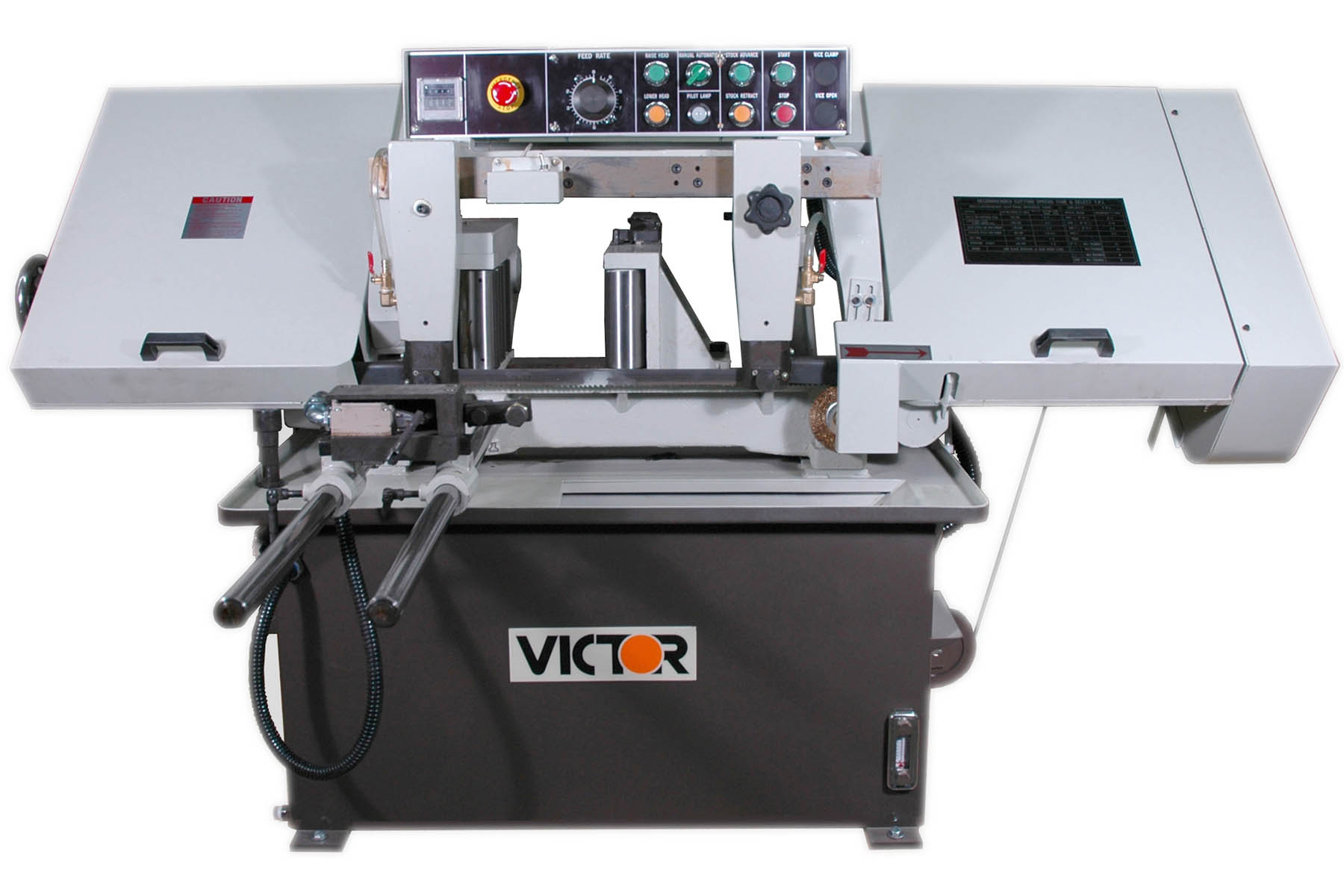

Victor 10″ Automatic Horizontal Band Saw, Auto-10HS
Inventory # 5921
Model: Auto-10HS
Specifications:
Capacity:
Round @ 90°: 10″
Rectangular @ 90°: 6″ x 12″ (8″ x 8″ Square)
Saw Blade:
Speed: 75, 130, 180, 220 FPM
Size: 150″ x 1″
Tension: Manual
Guides: Carbide Guides
Cleaning: Wire Brush & Flood Coolant
Blade Motor: 2 HP / 3ph
Hydraulic Motor: 1/4 HP
Coolant Pump Motor: 1/8 HP
Standard Features:
Motorized roller feeding system
Adjustable hydraulic feed rate provides an infinite range of cutting pressure
Preset cut-piece counter with automatic stop
Work height selector
Out of stock switch with automatic stop
Carbide guides for 1″ wide blade
Blade breakage detector with automatic stop
Built-in coolant system distributed through blade guides
Wire blade brush
Built-in work light
Mechanical Specifications:
Dimensions: 82″ x 40″ x 54″ H
Shipping Weight: 1,760 lbs.
Note: Stock Photo is for Reference Only and May Show Options Not Included with Your Machine
Contact us for special pricing and availability
FOB Factory
