UPA Technology Cb-3 Circuit Board Guide with Aperture Plates

$360.00


Shipping: $20.00

In stock

Inventory #: 3425

Category:

Condition:

Type:

Description

UPA Technology CB-3 Circuit Board Guide with Aperture Plates

Inventory # 3425

Model: CB-3

Description:

Circuit Board Guide:

For measurements on printed wiring boards. This circuit board guide with a built-in magnifier facilitates precise positioning of the probe (HH-3) allowing accurate measurements of plating thickness on printed wiring boards. Thickness of printed wiring board surface plating such as gold, solder, tin, copper, rhodium, tin-nickel, photo-resist, etc. can be measured with unprecedented ease, speed, and accuracy

Unique direct-vision cross hard alignment slide with built-in lighting system ensures pinpoint probe positioning accuracy on PWB fingers, and even small pads and lines. Since this probe guide, CB-3 can be moved around to any part of a printed wiring board surface, it can make measurements even in the center of the largest printed wiring boards. Ideal for use wherever precise positioning is required on flat surfaces

Aperture Plate:

Parts to be tested are placed over the aperture plate opening and a spring-loaded pin holds the part firmly in place. Opening = circular

Equipment Included:

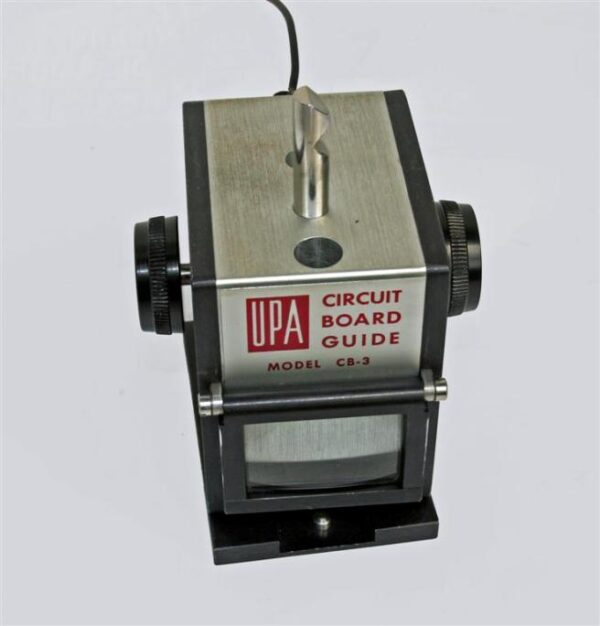

CB-3 Circuit Board Guide, as Pictured

(12) Aperture Plates in Clear Plastic Cases

Original UPI Technology, Inc. Storage Cases

Instruction Manual (1981)

FOB Our Baltimore, MD Warehouse
