Description
Uni-Hydro Pro Series 56 Ton Ironworker, Pro 56-14
Inventory # 3216

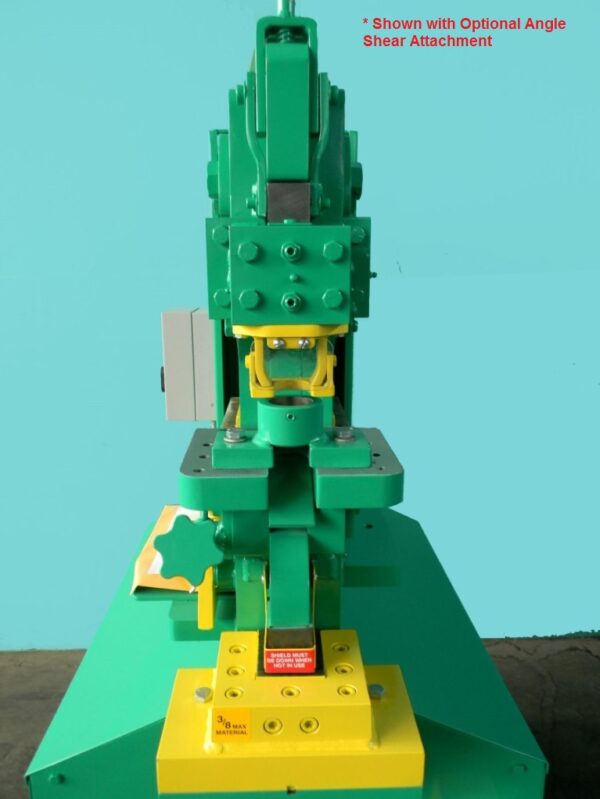

Model: Pro 56-14 *Machine is Shown with Optional Angle Shear
Made in USA
Specifications:
Tonnage: 56
Throat Depth: 6″
Punch:
1 1/4″ Hole in 1/2″ Mild Steel
13/16″ Hole in 3/4″ Mild Steel
Bar Shear: 3/8″ x 14″, 1/2″ x 10″, 5/8″ x 8″, 3/4″ x 6″
Angle Shear 90°, Optional:
Slug Type: 3″ x 3″ x 3/8″
Sever Cut: 4″ x 4″ x 3/8″
Miter Angle 45°:
Bar Shear: 3″ x 3″ x 3/8″
Slug Type, Optional: 2″ x 2″ x 5/16″
Channel Shear, Optional: 2″ & 3″ Combined, 4″ Standard
Rod Shear, Optional: Max. 1 1/16″ (Round and Square)
V Coper Notcher 90°: 3″ x 3″ x 1/4″ Angle Iron
Square Notcher, Optional:
Notcher Station: 2″ x 3″ x 3/8″
Punch or Power Cavity: 1 3/4″ x 2″ x 1/4″
Pipe Notcher, Optional: 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
Brake, Optional: 6″ or 9″ x 1/4″
Strokes per Minute:
Light Material: 50 SPM
Max. Capacity: 7 SPM
Bar Shear Work Height: 29″
Punch Table Top Height: 38 1/4″
Cavity Tabletop Height: 37 1/4″
Notcher Station Working Height: 26″
Motor: 5 HP / 220v / 3ph (Standard – Also Available in Single Phase)
Standard Features:
Manual Punch Aligner
4-way 14″ low rake flat bar shear
Bar shear hold-down can be fixed or adjustable
Magnetic starter for safety and reliability
Built for forklift handling
Full stroke control
Optional Tooling:
Punch Station:
Square Notcher
Coper Notcher
Pipe Notcher
6″ Brake
Power Cavity:
Angle Shear
Z & T Shear
Channel Shear
Brake: 6″ or 9″
Rod Shear (Round or Square)
Mechanical Specifications:
Dimensions: 33″ x 27 1/4″ x 57″ H
Weight: approx. 1,720 lbs.
FOB Factory – Contact us for Pricing and Availability
Please Note: Specifications are Listed to Show the Machine’s Capabilities. Some Applications and Processes Require Optional Tooling
