Description
Uni-Hydro 30 Ton Ironworker, 30-8
Inventory # 3214

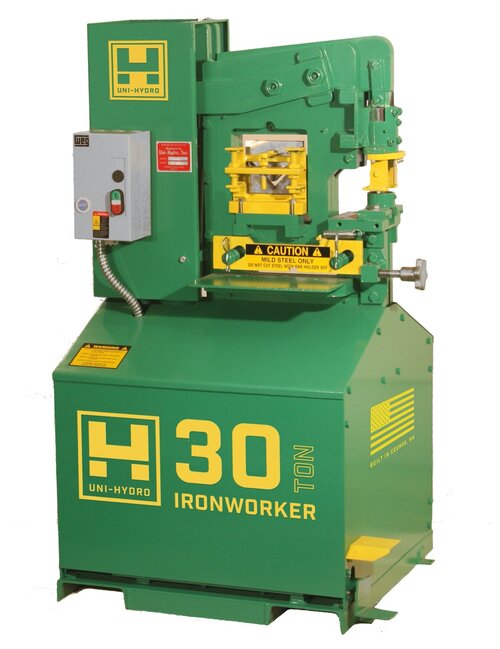

Model: 30-8 *Shown with Optional Angle Shear
Made in USA
Specifications:
Throat Depth: 4 1/2″
Tonnage: 30
Punch: 3/4″ hole in 1/2″, 1 1/4″ hole in 5/16″
Bar Shear: 1/4″ x 8″, 1/2″ x 6″
Optional Angle Shear 90°:
Sever Cut: 3″ x 3″ x 1/4″
Miter Angle 45°:
Bar Shear: 2″ x 2″ Standard
Optional Channel Shear: 1″ x 2″
Optional Rod Shear: 5/8″ Max. (Round and Square)
Optional Coper Notcher 90°: 3″ x 3″ x 1/4″
Optional Pipe Notcher: 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 1 3/4″, 2″
Optional Brake: 6″ x 1/4″
Strokes per Minute:
Light Materal: 9 SPM
Max. Capacity: 9 SPM
Motor: 3 HP / 1ph OR 3 HP / 3ph
Standard Features:
8″ bar shear with 4 sided bar blades
Fixed or adjustable bar shear hold-down
Forklift accommodations
Magnetic starter for safety and reliability
Sits flush with all freeing up floor space
Rated for 65,000 PSI Tensile Mild Steel
Better designed for safety and durability
Optional Tooling:
6″ Brake
Angle Shear
Channel Shear
Rod Shear
Coper Notcher
Pipe Notcher
Mechanical Specifications:
Dimensions: 27″ x 24″ x 50″ H
Weight: approx. 880 lbs.
FOB Factory – Contact us for Pricing and Availability
Please Note: Specifications are Listed to Show the Machine’s Capabilities. Some Applications and Processes Require Optional Tooling
