Uni-Hydro 80 Ton Ironworker, Pro 80
Inventory # 3217

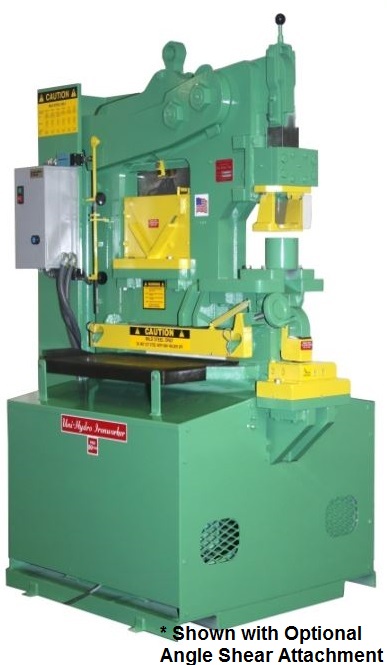

Model: Pro 80 *Shown with Optional Angle Shear
Made in USA
Specifications:
Throat Depth: 9″
Tonnage: 80
Punch: 2″ hole in 1/2″, 1 3/8″ hole 3/4″, 2 1/4″ hole in 7/16″
Bar Shear: 1/4″ x 24″, 1/2″ x 20″, 3/4″ x 10″, 1″ x 6″
Optional Angle Shear 90°:
Slug Type: 6″ x 6″ x 1/2″
Sever Cut: 4″ x 4″ x 3/8″
Miter Angle 45°:
Bar Shear: 4″ x 4″ x 1/2″
Optional Slug Type: 4″ x 4″ x 3/8″
Optional Channel Shear: 2″, 3″, 4″, 5″, 6″
Optional Rod Shear: 1 1/4″ (Round)
Coper Notcher 90°:
Notcher Station: 3″ x 3″ x 1/4″
Punch or Power Cavity: 4″ x 4″ x 1/2″
Optional Square Notcher:
Notcher Station: 2″ x 3″ x 3/8″
Punch or Power Cavity: 3″ x 3″ x 3/8″
Optional Brake: 6″, 9″, 14″, 18″, 24″ capacity
Strokes per Minute:
Light Material: 50 SPM
At Maximum Capacity: 9 SPM
Bar Shear Work Height: 29″
Punch Table Top Height: 39 1/4″
Cavity Table Top Height: 41″
Notcher Station Working Height: 31″
Motor: 7.5 HP / 1ph OR 7.5 HP / 3ph
Standard Features:
Manual punch aligner
24″ bar shear with 4-sided blades
Magnetic starter for safety and reliability
Fixed or adjustable bar shear hold-down
Electric foot control
Eyelet and forklift accommodations
Variable stroke control
4th station allow notching without retooling
Grease bank for lubricating machine without removing covers
Optional Tooling:
Punch Station:
Square Notcher
Coper Notcher
Pipe Notcher
Brake: 6″, 9″, 18″, 24″
Power Cavity:
Square Notcher
Coper Notcher
Channel Shear
Angle Shear
Z & T Shear
Rod Shear
Brake: 6″, 9″, or 14″
4th Station:
Square Notcher
Coper Notcher
Pipe Notcher
Mechanical Specifications:
Dimensions: 37″ x 46″ x 70″ H
Weight: approx. 3,100 lbs.
FOB Factory – Contact us for Pricing and Availability
Please Note: Specifications are Listed to Show the Machine’s Capabilities. Some Applications and Processes Require Optional Tooling
