Description
Uni-Hydro 56 Ton 3-Station Hydraulic Ironworker, 5624
Inventory # 4982

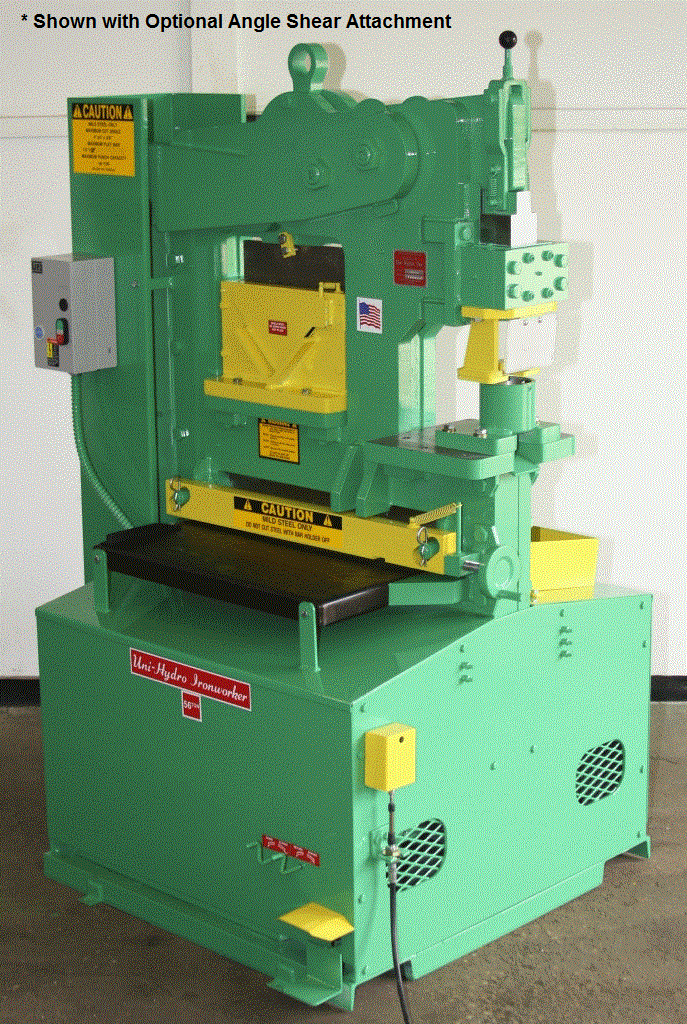

Model: 5624 *Shown with Optional Angle Shear
Made in USA
Specifications:
Throat Depth: 9″
Tonnage: 56
Punch: 1 3/8″ hole in 1/2″, 2 1/4″ hole in 5/16″
Bar Shear: 1/2″ x 24″
Optional Angle Shear 90°:
Slug Type: 6″ x 6″ x 3/8″
Sever Cut: 4″ x 4″ x 3/8″
Miter Angle 45°:
Optional Slug Type: 4″ x 4″ x 3/8″
Optional Channel Shear: 2″ & 3″ Combined, 4″ Standard
Optional Rod Shear: 1 1/4″ Max. (Round and Square)
Optional Coper Notcher 90°: 4″ x 4″ x 3/8″
Optional Square Notcher: 2″ x 3″ x 3/8″, 3″ x 3″ x 3/8″
Optional Pipe Notcher: 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″
Optional Brake: 6″, 9″, 14″, 18″, 24″ Capacity
Strokes per Minute:
Light Material: 50 SPM
Max. Capacity: 9 SPM
Bar Shear Work Height: 29″
Punch Table Top Height: 39 1/4″
Cavity Table Top Height: 41″
Motor: 5 HP / 1ph OR 5 HP / 3ph
Standard Features:
24″ bar shear with 4-sided blades
Bar shear hold-down can be fixed or adjustable
Magnetic starter for safety and reliability
Full up and down stroke control
Built for forklift handling
Manual punch aligner
Optional Tooling:
Punch Station:
Square Notcher
Coper Notcher
Pipe Notcher
6″ Brake
Power Cavity:
Angle Shear
Z & T Shear
Channel Shear
Brake: 6″ or 9″
Rod Shear (Round or Square)
Mechanical Specifications:
Dimensions: 46″ x 37″ x 70″ H
Weight: approx. 2,700 lbs.
FOB Factory – Contact us for Pricing and Availability
Please Note: Specifications are Listed to Show the Machine’s Capabilities. Some Applications and Processes Require Optional Tooling
