Supertec 20″ x 8″ CNC Universal Cylindrical Grinder, G20P-50CNC

Shipping: Add to Cart to Calculate

SKU: G20P-50CNC

Inventory #: 8196

Categories: , ,

Condition:

Type:

Brand:

Description

Supertec 20″ x 8″ CNC Universal Cylindrical Grinder, G20P-50CNC

Inventory # 8196

Model: G20P-50CNC

Read the Supertec CNC Universal Cylindrical Grinders PDF Here

Specifications:

Capacity:

Swing Over Table: 8″

Distance Between Centers: 20″

Max. Grinding Diameter: 7″

Max. Load Between Centers: 176 lbs.

Grinding Wheel:

Diameter x Width x Bore: 14″ x 1″ – 2″ x 5″

Wheel Speed: 1,940 RPM

Max. Peripheral Speed: 118′ /Sec.

Wheelhead:

Sliding Angle: 90°

Automatic Rapid Traverse: 236″ /Min.

Infeed Travel: 6″

Least Input Increment: 0.000040″

Tailstock:

Quill Travel: 1″

Center Taper: MT 3

Workhead:

Spindle Speed: 50 – 500 RPM (Variable)

Center Taper: 5C (Opt. MT 3)

Spindle Type: Fixed and Rotary

Diameter of Bore: 0.79″

(Optional) Internal Grinding:

Spindle Speed: 14,000 RPM (Opt. 25,000 RPM)

Max. Grinding Bore: 15/16″ – 2 3/4″

Max. Grinding Length: 2 3/4″

Max. Chucking Length: 10 3/4″

Max. Chucking Diameter: 4 1/3″

Table:

Swiveling Angle: 7°

Rapid Feedrate: 0 – 315″ /Min.

Least Input Increment: 0.000040″

Motor:

Wheel Spindle Motor: 5 HP (Opt. 7 HP)

Standard Features:

Fanuc Oi-TF Control

10 programmable speeds on wheelhead

One V and one flat guideway

Workhead swivels 90° CCW to 30° CW

Hydraulics, coolant and lubrication systems are separated from machine

Standard Accessories:

Table Dial Gauge

Infinite Variable Workhead

Coolant System with Mag. Sep and Paper Filter

Balancing Stand with Arbor

Diamond Dresser

Carbide Tip Centers

Semi-Enclosed Splash Guard

Wheel Extractor

Mechanical Specifications:

Shipping Dimensions: 110″ x 60″ x 81″ H

Shipping Weight: approx. 6,160 lbs.

Contact us for special pricing and availability

FOB Factory

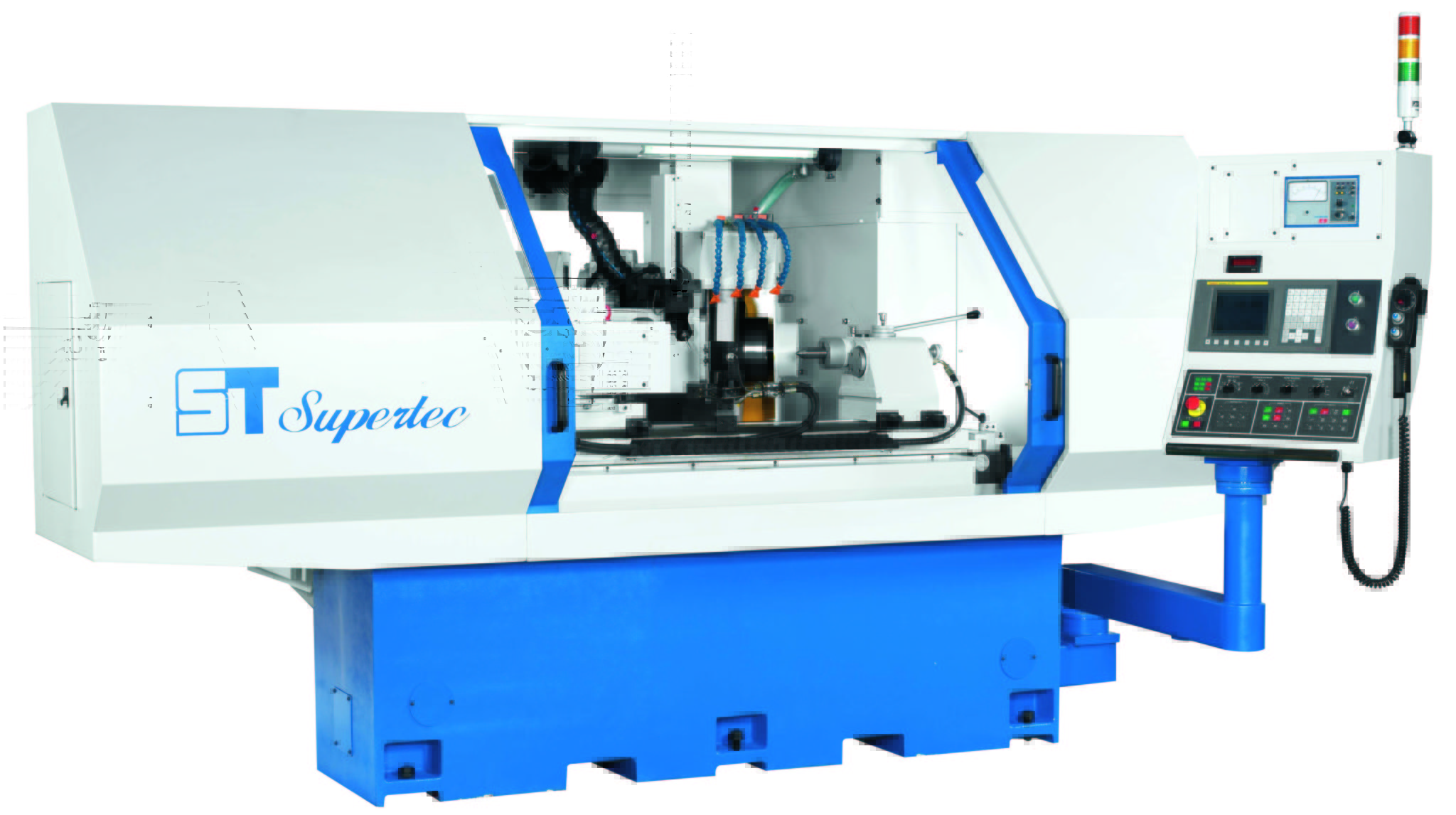

Please Note: Photo is of Model G32P-100CNC and is for Representation Only. Actual Product Purchased Will Differ in Appearance

Additional information

Weight 6360 lbs
