Description

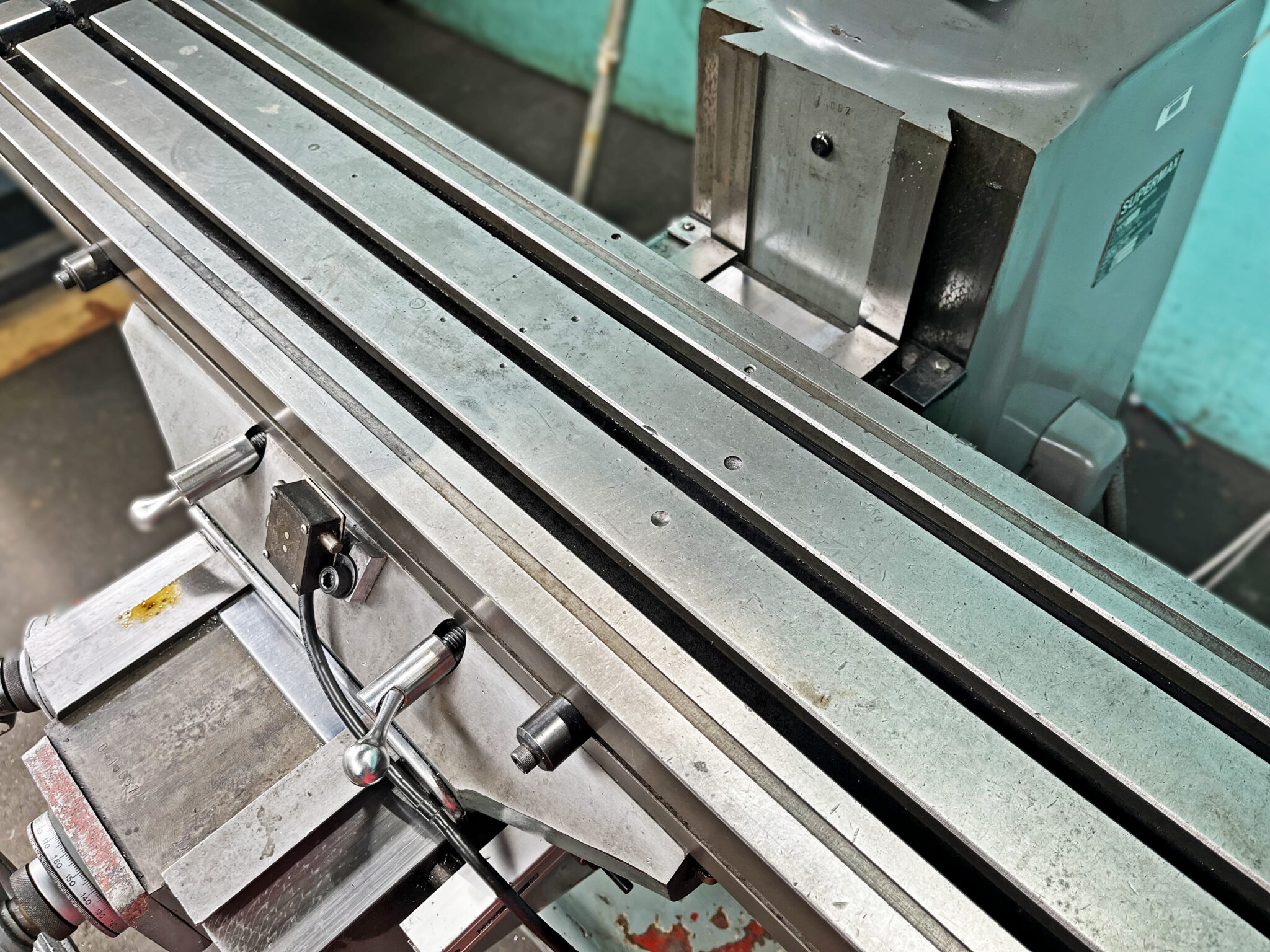

Supermax 9″ x 49″ Vertical Milling Machine, YCM-1 1/2 VS
Inventory # 9369
Model: YCM-1 1/2 VS
S/N: 85-0415697
Specifications:
Table Size: 9″ x 49″
Longitudinal Table Travel: 34″
Cross Travel: 12″
Vertical Knee Travel: 16″
Ram Travel: 12″
Spindle Speed: 60 – 4,200 RPM, Variable
Spindle Taper: R-8
Quill Travel: 5″
(3) Quill Feeds: .0017, .0032, .0053 IPR
Head Tilt, Front to Back: 45°
Head Swivel, Left to Right: 90°
Motor: 2 HP / 230v, 460v / 3ph
Equipment Included:
Servo X-Axis Power Feed
Acu-Rite MillMate 2-Axis Digital Read-Out System
One Shot Lubrication System
Mechanical Specifications:
Dimensions: 94″ x 63″ x 81″ H
Weight: approx. 2,200 lbs.
FOB Our Baltimore, MD Warehouse
