Supermax 9″ Column Radial Arm Drill, HRD-1000

$7,250.00


Shipping: Add to Cart to Calculate

In stock

SKU: Supermax HRD-1000 Radial Drill

Inventory #: 9062

Categories: ,

Condition:

Type:

Brand:

Description

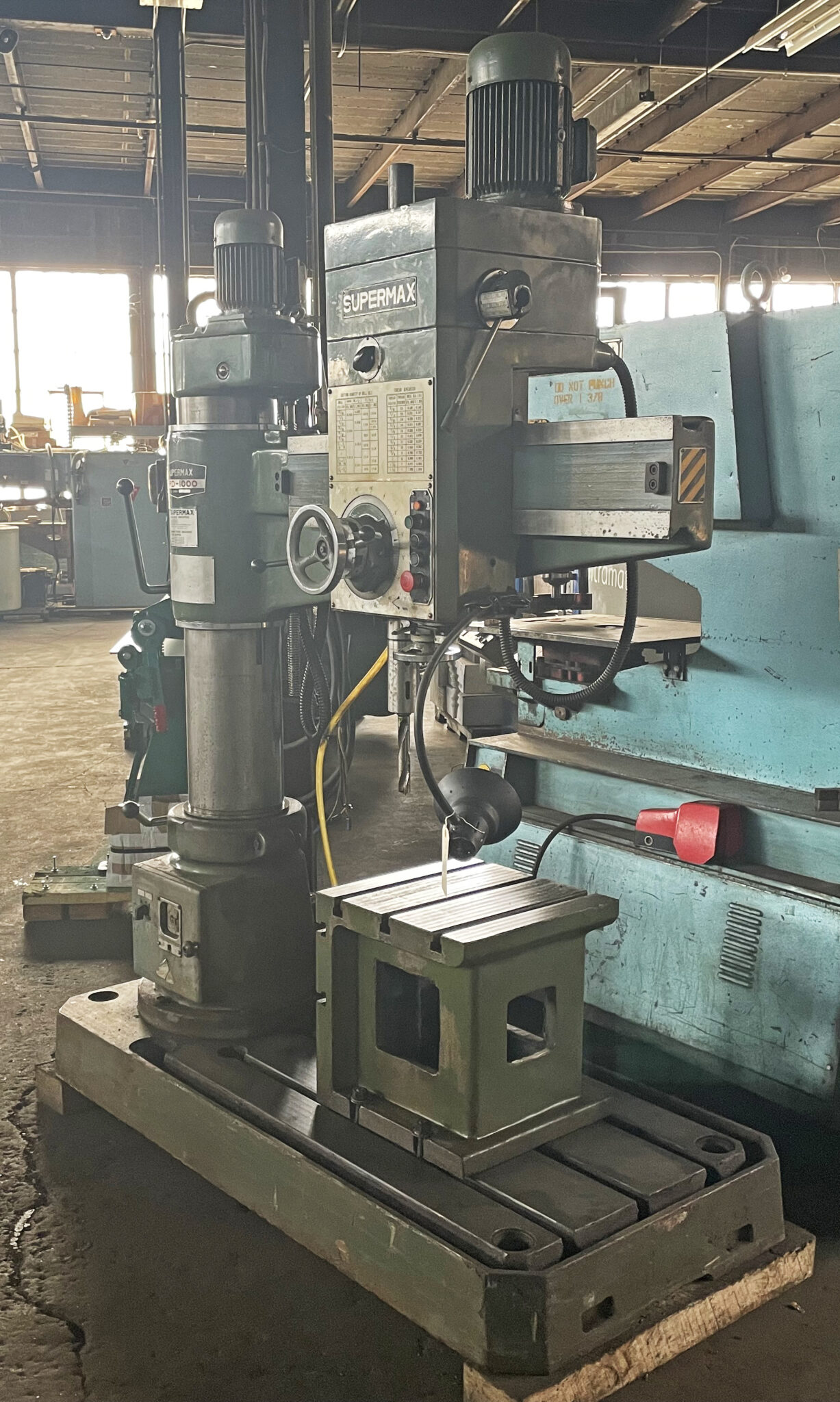

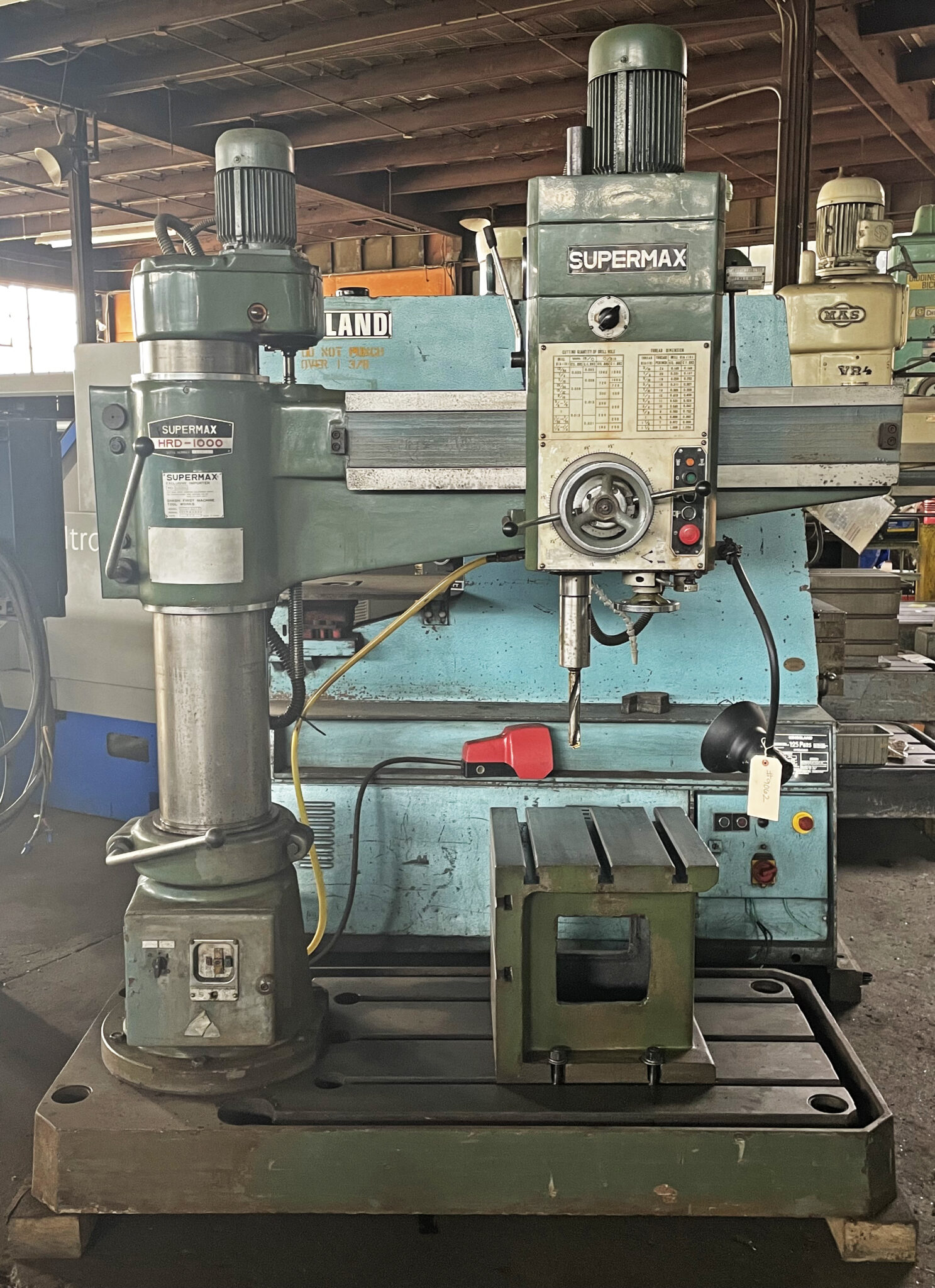

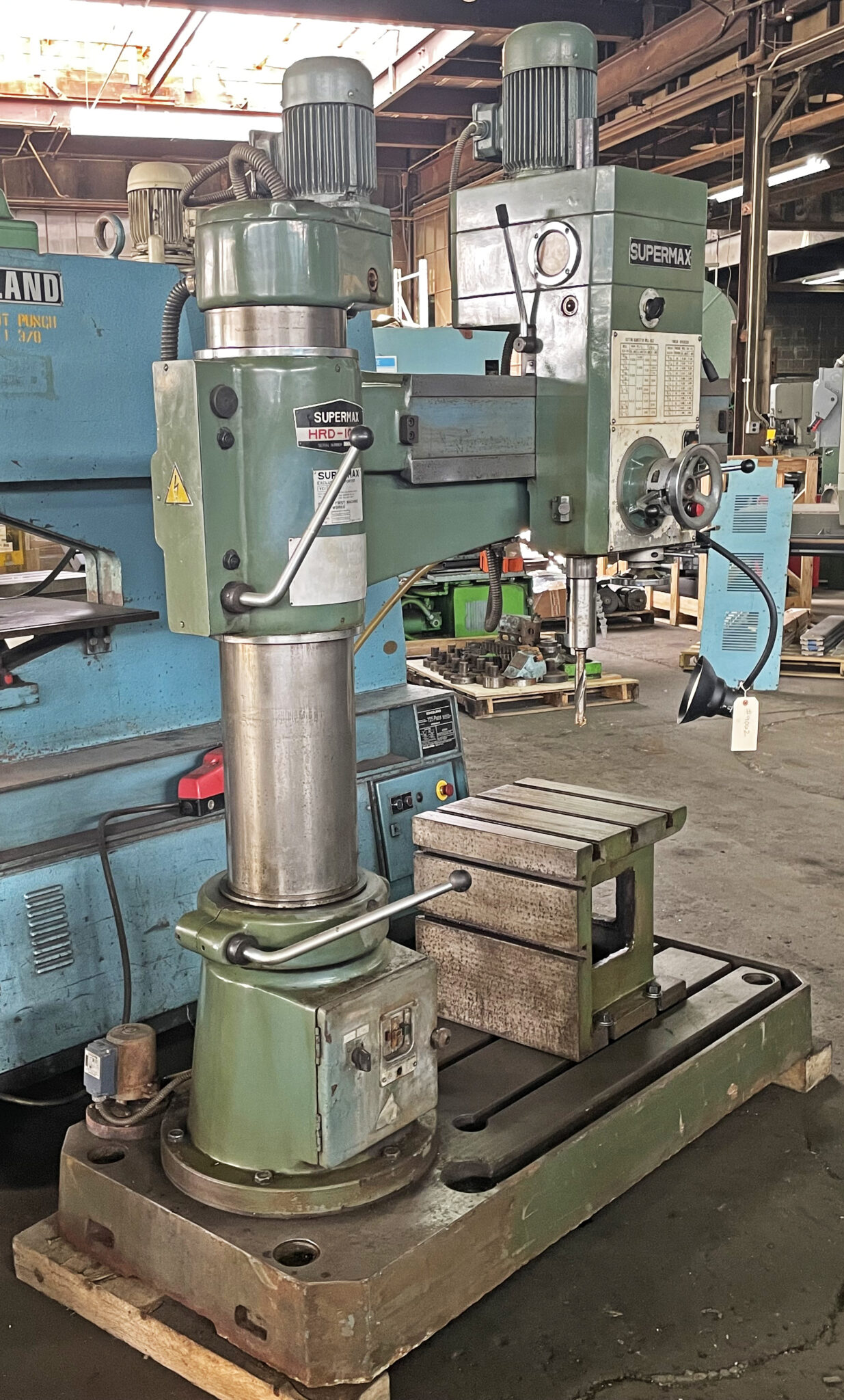

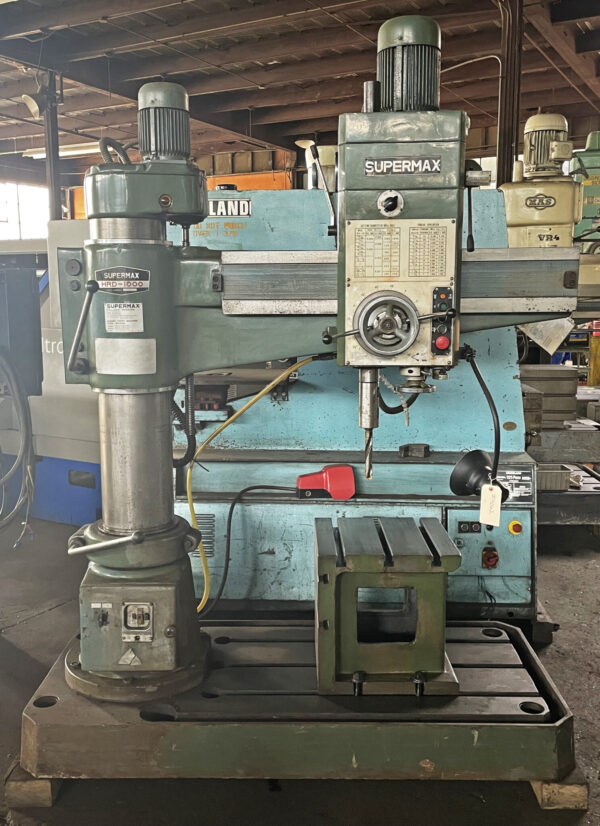

Supermax 9″ Column Radial Arm Drill, HRD-1000

Inventory # 9062

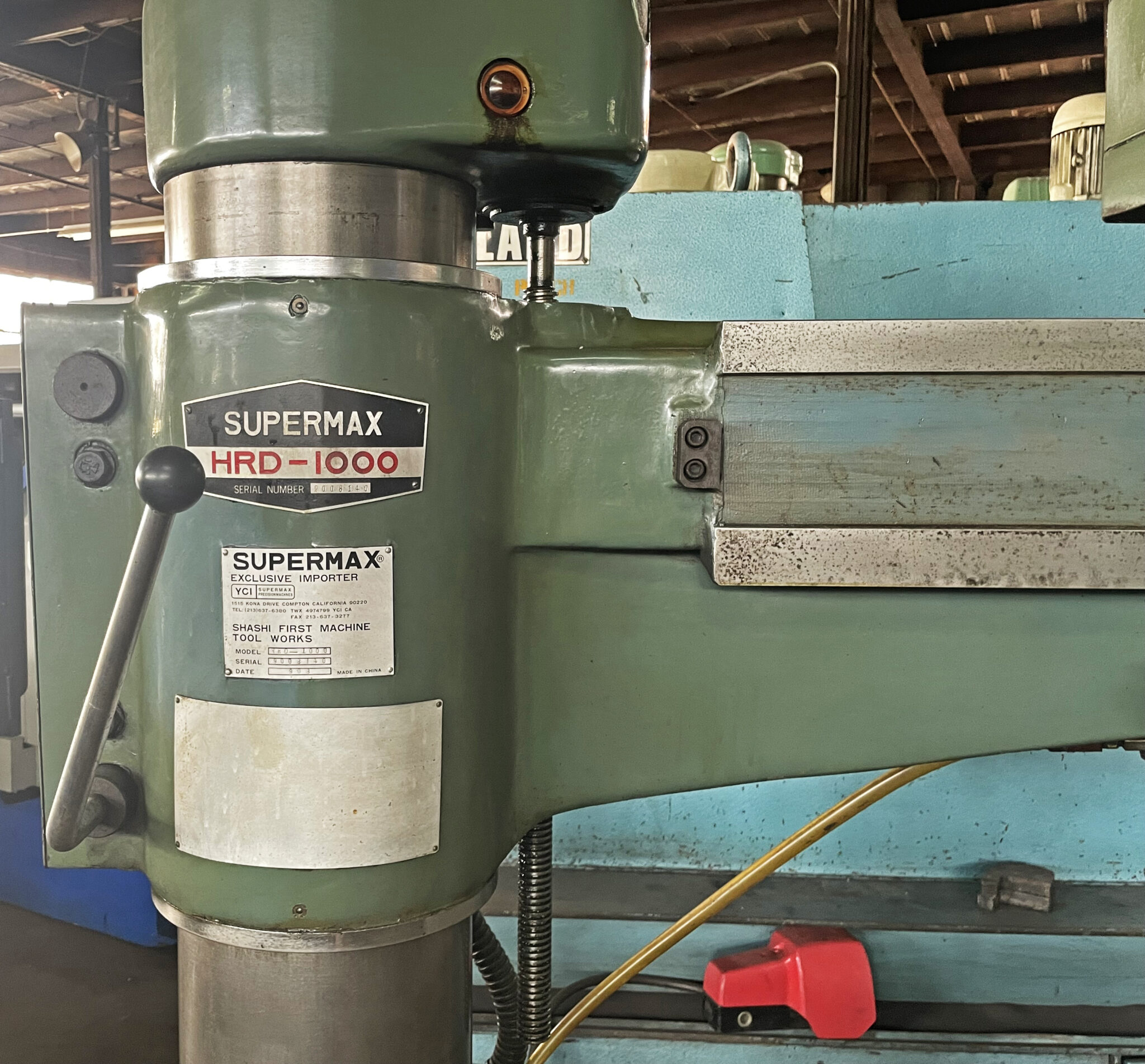

Model: HRD-1000

S/N: 9008140

Specifications:

Column Diameter: 9″

Drilling Capacity:

Cast Iron: 1 5/8″

Mild Steel: 1 1/4″

Boring Capacity:

Cast Iron: 4 3/4″

Mild Steel: 3 3/8″

Tapping Capacity:

Cast Iron: 1 1/8″

Mild Steel: 3/4″

Distance From Spindle:

Center Spindle to Column Center: 16 3/8″ – 43 1/8″

Center Spindle to Column Surface: 11 5/8″ – 39″

Spindle Nose to Base Surface: 11 13/16″ – 40″

Longitudinal Travel of Spindle Head: 28″

Vertical Arm Travel: 19.7″

Spindle Speeds: (12) 63 – 2,900 RPM

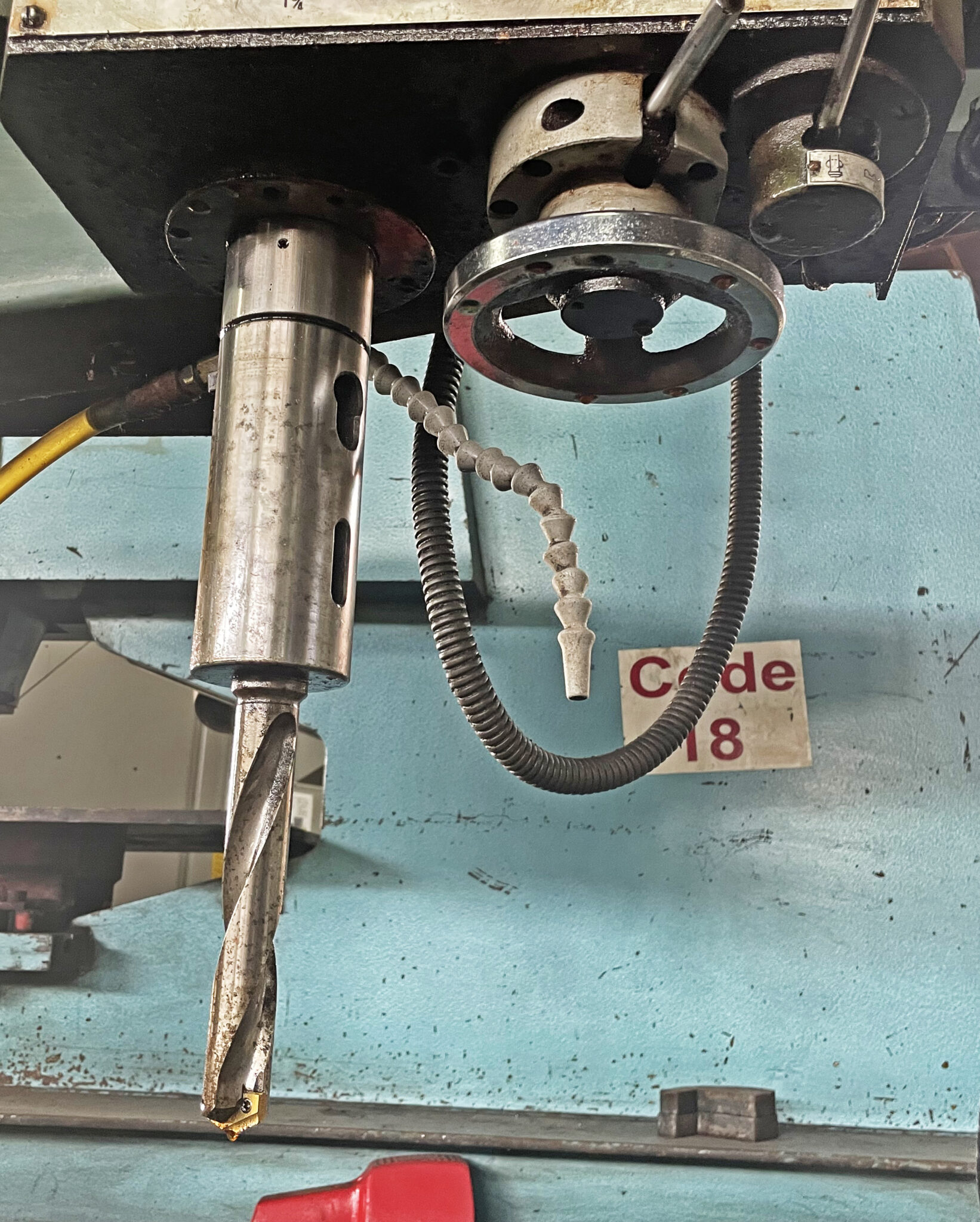

Spindle Taper: MT #4

Quill Diameter: 2 7/16″

Quill Travel: 10 1/2″

Quill Powerfeed: (Per Reverse of Spindle – 4 Steps) .005″, .008″, .013″, .021″

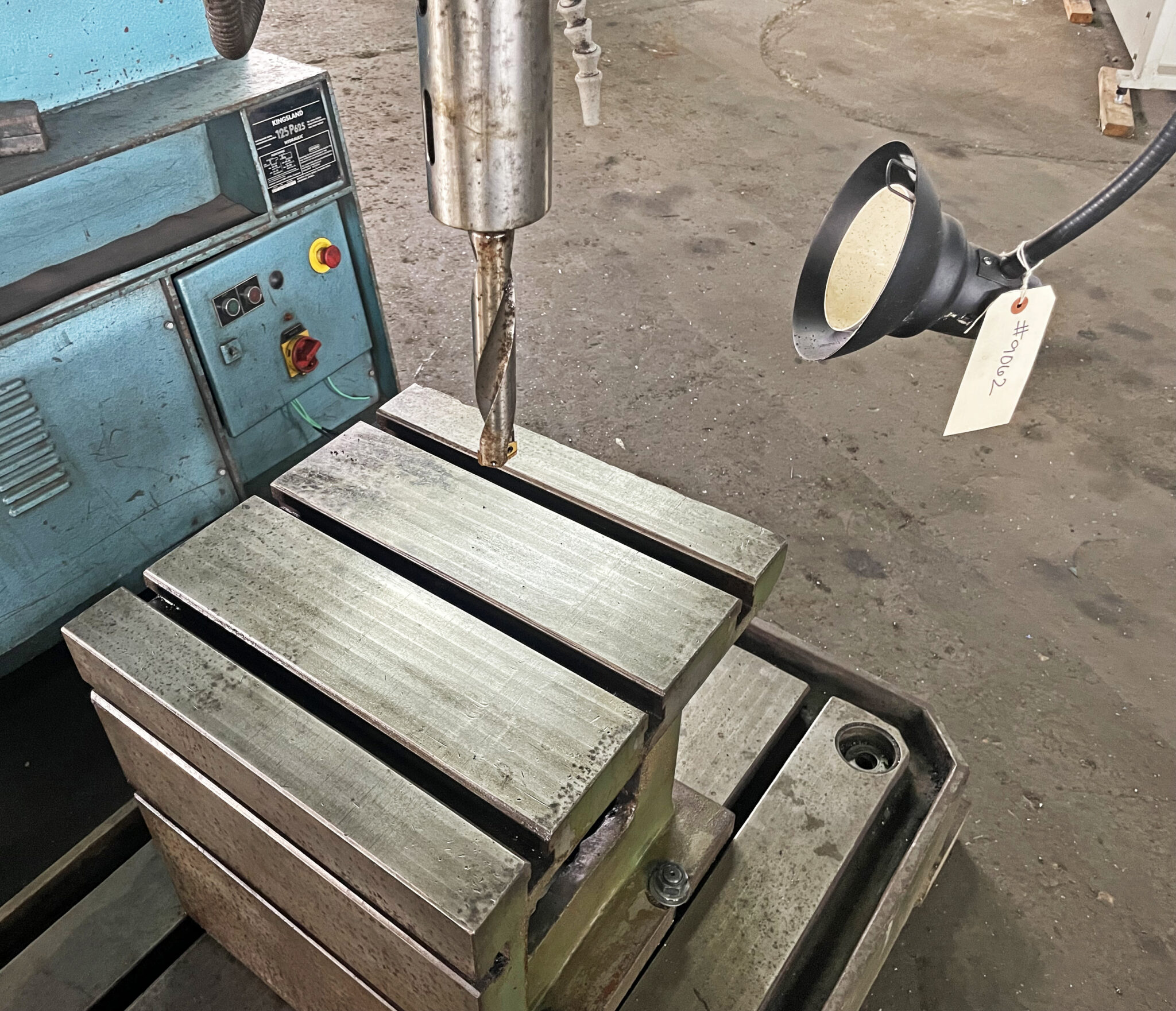

Work Table Dimensions: 23 1/2″ x 17 1/2″ x 14″ H

Work Area of Base: 25 1/2″ x 41 1/2″

Base Floor Space: 69″ x 32″

Column Height: 82″

Max. Height from Spindle Head to Base: 93″

Motor: 3 HP / 208v, 230v / 3ph

Mechanical Specifications:

Dimensions: 80″ x 40″ x 93″ H

Shipping Weight: approx. 4,400 lbs.

FOB Our Baltimore, MD Warehouse

Additional information

Weight 4400 lbs
