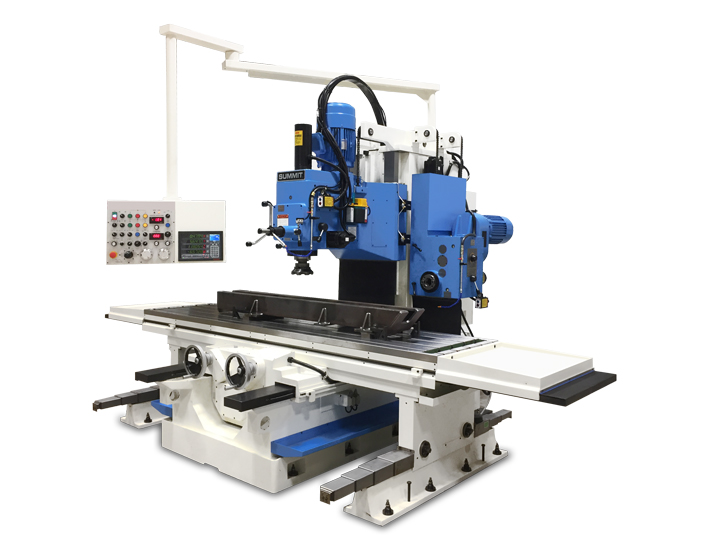

Summit 28 1/2″ x 106″ Vertical/Horizontal Bed Mill, # 8VHL
Inventory # 8095
Model: # 8VHL
Description:
Summit 8VL Bed Mills offer high production accuracy due to their heavy construction and innovative design. The large choice of speeds and feeds makes these Bed Mills the ideal choice for job shops, production shops, repair and tool & die shops. The alloy steel main spindle is thermally treated and precision ground, then fixed on high accuracy bearings and the saddle assembly travels on precision ground slides which ensure rigidity for large capacity table loads
This machine also has an automatic lube system which ensures consistent lubrication of the speed and feed boxes. Changing of feeds and speeds is easy and efficient, combined with centralized operator controls, these machines are designed for virtually uninterrupted operation
Specifications:
Working Surface: 29 1/2″ x 106.3″
Longitudinal Travel: 78 3/4″
Cross Travel (Y-Axis): 31 1/2″
Vertical Head Travel (Z-Axis): 27 1/2″
Spindle Taper: # 50
Spindle Speeds, Vertical: 45 – 1,500 RPM (12 Steps)
Spindle Speeds, Horizontal: 45 – 1,450 (12 Steps)
Motor: 20 HP
Standard Features:
Coolant System
Tools and Box
Leveling Blocks
Leveling Bolts and Nuts
Digital Read Out
Power Draw Bar
Mechanical Specifications:
Dimensions: 146″ x 124″ x 109″ H
Weight: approx. 28,650 lbs.
Contact us for special pricing and availability
FOB Factory
