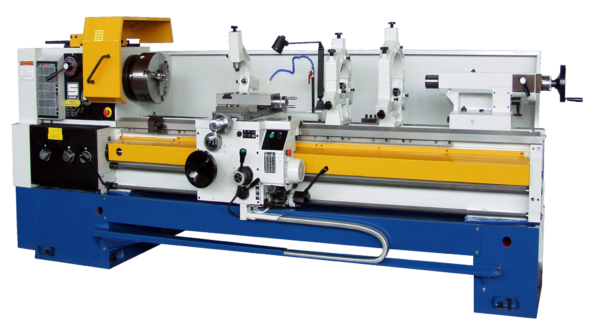

Summit 24″ x 80″ Precision Engine Lathe
Inventory # 8062
Model: 24 x 80
European Quality Machine
Description:
Summit 24″ Engine Lathes turn rings around other lathes in this class. They are affordable, rugged, reliable, and easy to operate. They are ISO compliant, include a vast array of features and accessories as “standard” and offer a variety of built-in safety features
Due to the solid construction from 100% cast iron, Summit 24″ Engine Lathes are built for long-term use and are known for consistent performance and durability even under the most demanding work conditions. Standard on every lathe is a quick-change gearbox for cutting metric, module, and diametrical pitch threads, as well as standard American (inch) threads
Specifications:
Swing Over Bed: 25″
Distance Between Centers: 80″
Swing Over Cross Slide: 17″
Swing Over Gap: 33″
Hole Through Spindle: 4″
Spindle Speeds: 20 – 1,250 RPM (21 Steps)
Spindle Nose: D1-8
Threads per Inch (Number/Range): (64) 1/4 – 60
Metric Threads (Number/Range): (64) .5 – 120
Travel of Spindle Barrel: 9 1/2″
Diameter of Spindle Barrel: 3 1/2″
Tailstock Center: # 5 M.T.
Width of Bed: 15 3/4″
Motor: 15 HP
Standard Features:
Cross-ribbed headstock for added strength and stability
Anti-friction mounted shafts and dynamically balanced components for improved accuracy
Hardened and ground alloy steel gears, shafts, and splines for long-lasting accuracy
Precision chrome alloy spindle with large 4″ spindle bore for workpiece flexibility
Clutched headstock for more precision control and long-lasting reliability
All cast iron construction provides a solid foundation for vibration absorption and rigidity
Hardened and precision ground bedways for long-lasting accuracy

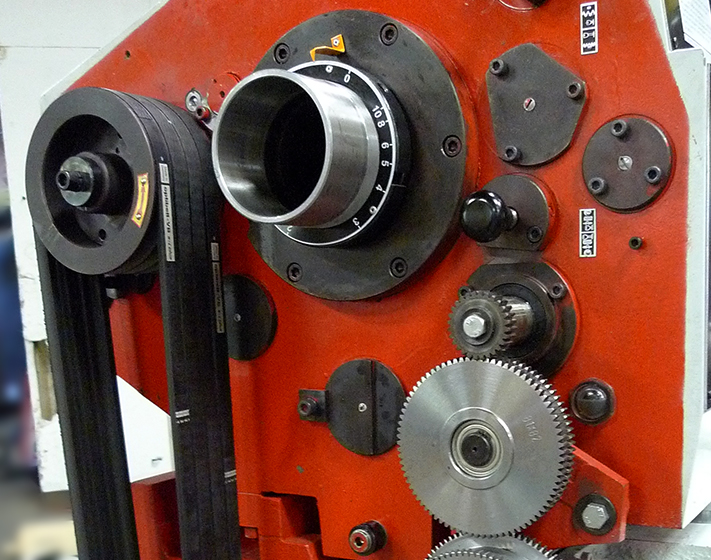

Quick change gearbox cuts American (inch), metric, module, and diametrical pitch threads

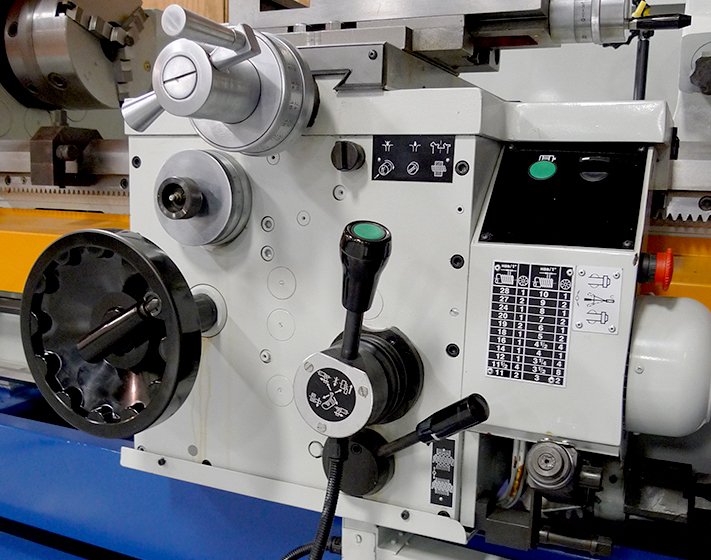

Rapid traverse on carriage (4-way joystick)
Two speed tailstock for faster setups
Standard Equipment:
Thread Dial
Standard Steady Rest
Extra Capacity Steady Rest
Follow Rest
Coolant System
Carriage Stop
Taper Attachment
Work Light
Full-Length Splash Guard
3-Jaw Chuck
Mechanical Specifications:
Shipping Weight: approx. 9,000 lbs.
Contact us for special pricing and availability
FOB Factory
