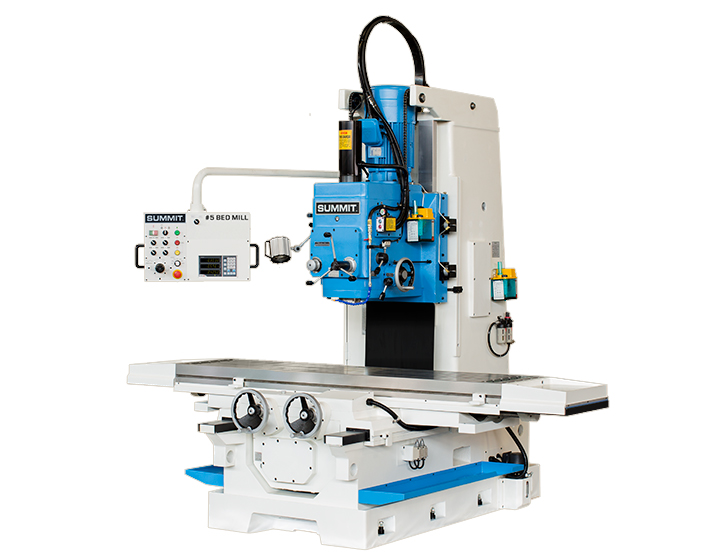

Summit 19″ x 86″ Vertical Bed Mill, # 5VL
Inventory # 8092
Model: # 5VL
Description:

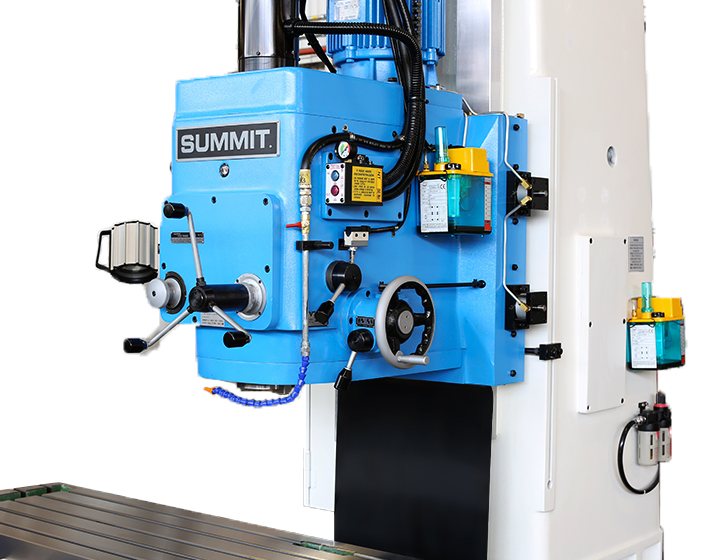

Summit 5VL Series Bed Mills offer high production accuracy due to their heavy construction and innovative design. The large choice of speeds and feeds makes these Vertical Bed Mills the ideal choice for job shops, production shops, repair and tool & die shops. The alloy steel main spindle is thermally treated and precision ground, then fixed on high accuracy bearings and the saddle assembly travels on precision ground slides which ensure rigidity for large capacity table loads
This machine also has an automatic lube system which ensures consistent lubrication of the speed and feed boxes. Changing of feeds and speeds is easy and efficient, combined with centralized operator controls, these machines are designed for virtually uninterrupted operation
Specifications:

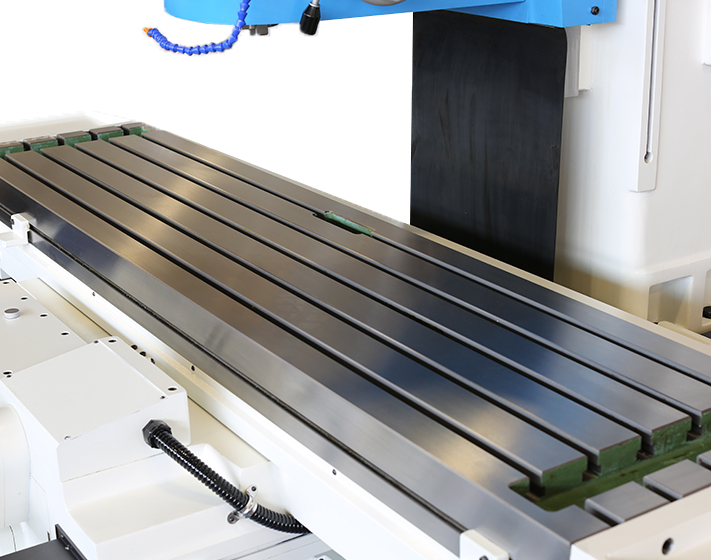

Working Surface: 19″ x 86.6″
Longitudinal Travel: 59″
Cross Travel (Y-Axis): 23.6″
Vertical Head Travel (Z-Axis): 27 1/2″
Spindle Taper: # 50 NMT
Spindle Speeds: 45 – 1,500 RPM (12 Steps)
Motor: 20 HP
Standard Features:
Automatic lubrication
Conveniently located operator’s panel
Rapid traverse
Ball screws on X & Y-Axis
3-Axis Digital Read Out
Standard Equipment:
Air Power Drawbar
Coolant
Work Light
Spanners and Wrenches
Leveling Bolts and Pads
Mechanical Specifications:
Dimensions: 175″ x 101″ x 113″ H
Weight: approx. 15,400 lbs.
Contact us for special pricing and availability
FOB Factory
