Summit 16″ x 60″ Precision Metal Lathe
Inventory # 8055
Model: 16 x 60
European Quality Machine
Description:
Summit 16″ Precision Metal Lathes have earned a reputation as heavy weights among mid-size lathes. They are ISO compliant, include a wide array of features and accessories as “standard” and offer a variety of built-in safety features. Engineering innovations make the Summit 16″ series one of the easiest precision lathes to operate in its class, while producing pinpoint accuracy for the finest finishes
In addition to calculated precision and total control, Summit 16″ metal lathes offer the bulk and horsepower necessary to effortlessly take on the heaviest chip loads. Standard on each machine is a quick-change gearbox for cutting inch, metric, module, and diametrical pitch threads without change gears
Specifications:
Swing Over Bed: 16″
Distance Between Centers: 60″
Swing Over Cross Slide: 9.375″
Swing Over Gap: 25.125″
Hole Through Spindle: 3″
Spindle Speeds: 20 – 2,000 RPM (12 Steps)
Spindle Nose: D1-8
Threads per Inch (Number/Range): (64) .25 – 60
Metric Threads (Number/Range): (64) .5 – 120
Travel Spindle Barrel: 9 1/2″
Diameter of Spindle Barrel: 3 1/2″
Tailstock Center: # 5 M.T.
Width of Bed: 15 3/4″
Motor: 10 HP
Standard Features:
Clutched headstock for more precise control and long lasting reliability
All cast iron construction provides solid foundation for vibration absorption and rigidity
Hardened and precision ground bedways for long lasting accuracy
Quick change gearbox cuts American (inch), metric, module, and diametrical pitch threads
Rapid traverse on carriage (4 way joystick)
Two speed tailstock for faster setups
Large chrome alloy spindle with big 3″ through hole for workpiece flexibility
Hardened and ground alloy steel gears, shafts, and splines for smooth performance and longevity
Standard Equipment:
Thread Dial
Steady Rest
Follow Rest
Coolant System
Taper Attachment
Work Light
Full-Length Splash Guard

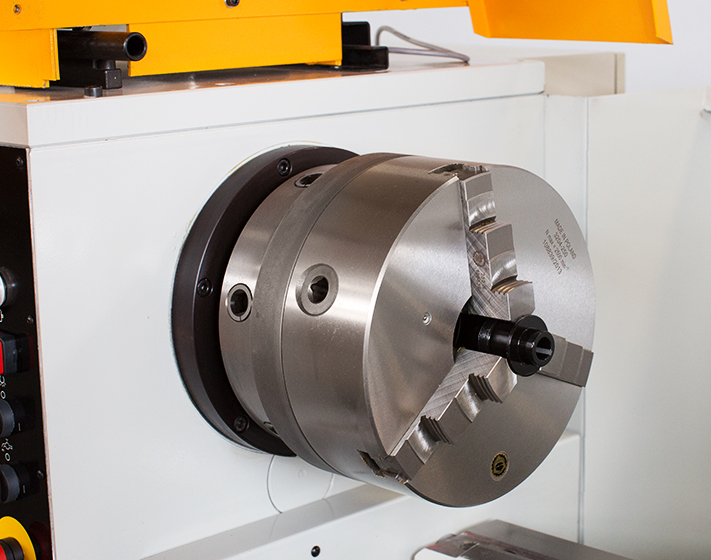

3-Jaw Chuck
Mechanical Specifications:
Shipping Weight: approx. 6,200 lbs.
Contact us for special pricing and availability
FOB Factory
