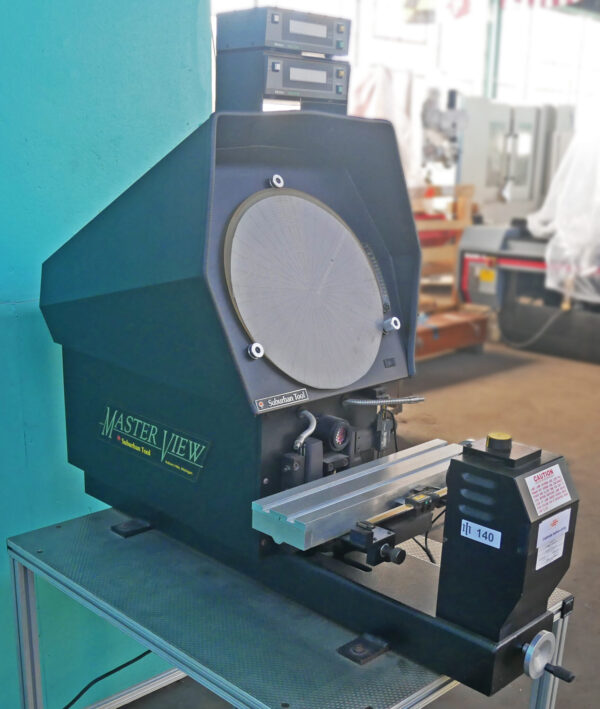

Suburban Tool Master-View 14″ Optical Comparator, MV-14
Inventory # 9818-P
Model: MV-14
S/N: 2488-0006M
Specifications:
Digital LCD Scales on X and Y Axes Provide Readings to 0.0005″
Output from Scales is Compatible with most SPC Systems
High Capacity 4 1/2″ x 19″ Stage with 8″ Horizontal and 4″ Vertical Travel
Ball Way Construction Handles Loads to 100 Lbs.
Two Long-Life Tungsten-Halogen Light Sources
Extra Bright Surface Illumination through Duplex Fiber Optics

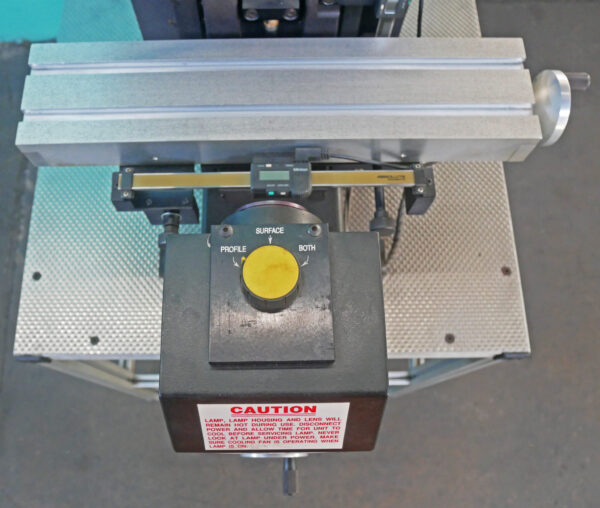

Individual Switches Select Profile, Surface, or Combination Surface-Profile Illumination Modes
Heavy-Duty Monorail Type Formed Steel Frame

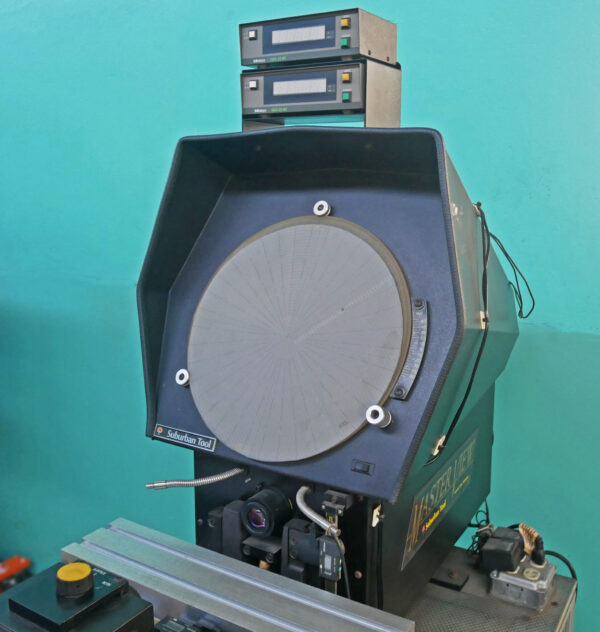

Rotating Frosted Glass Screen with 90° Crosslines and 360° Protractor Markings
Vernier Readings to 5 Minutes of Arc
10 Power Lens System
Clip-On Overlay Chart Clips
Mechanical Specifications:
Dimensions: 48 1/2″ x 22 1/4″ x 34″ H
New Replacement Cost: $8,395.00
FOB Our Baltimore, MD Warehouse
