Description

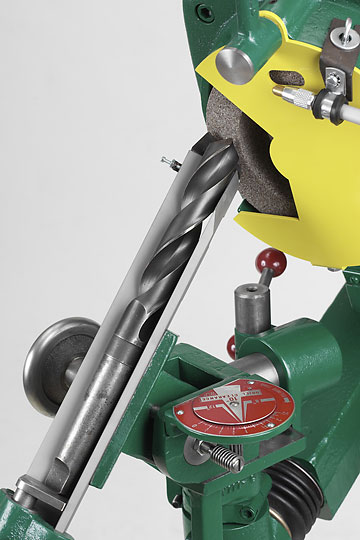

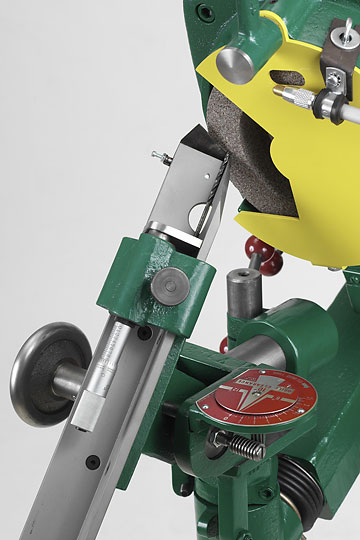

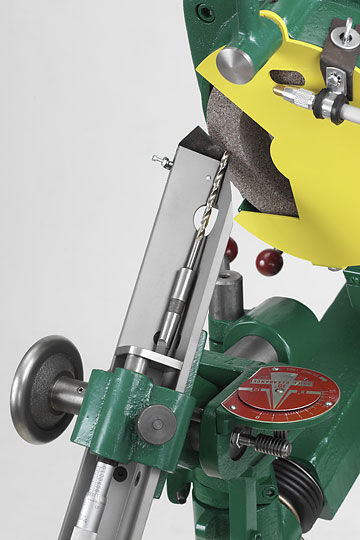

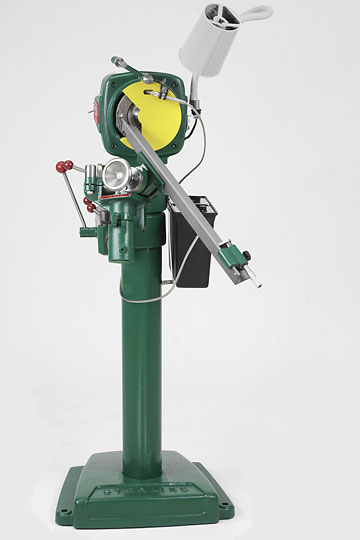

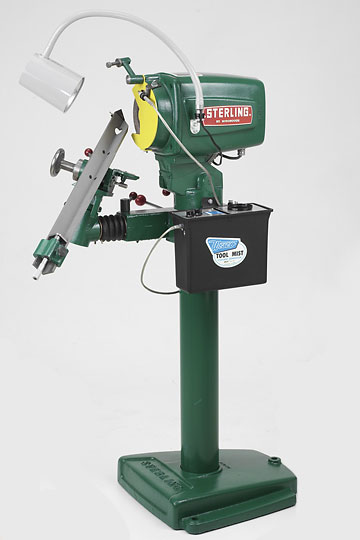

Sterling by McDonough 1/8″ to 2 1/2″ Drill Grinder, Model DV
Inventory # 9316
Model: DV
Made in USA
Specifications:
Capacity: Sharpens 1/8″ to 2 1/2″ Diameter Drills (1/8″ to 3″ Calibration Available)
Versatility: Sharpens 2, 3, or 4 flute drills with variable included angles of 90º, 100º, 110º, 118º, 130º, and 140º
Precision: For accurately centered and free cutting drills in seconds
Simplicity: No chucks, no collets, and no wrenches to bother with when sharpening different diameter drills. The same drill holding unit handles all drills from 1/8″ to 2 1/2″ in diameter
Unmatched Capacity: The Sterling Drill Grinder is the only grinder capable of sharpening drills from 1/8″ to 2 1/2″ in diameter. It will accommodate any standard catalog drill within this size range without the hassle of using chucks, collets, or wrenches
Extra Versatility: The Sterling Drill Grinder will sharpen 2, 3, and 4-flute drills with 90º to 140º included angles
Standard Equipment:
Flexible work light permanently mounted
Diamond wheel dresser with a mounted diamond
45º, 50º, 55º, 59º, 65º, and 70º drill stops
6″ straight cup wheel, 70 grit, aluminum oxide (46 and 60 grit also available)
Micrometer head for accurate control of drill infeed
3/4 HP, 3,450 RPM, 115v/1ph, 60 cycle, NEMA C flange mount, totally enclosed fan-cooled, ball-bearing motor
Mechanical Specifications:
Dimensions: 48″ x 24″ x 50″ H
Shipping Weight: approx. 405 lbs.
FOB Factory
Optional Equipment:
3/4 HP / 220v, 440v / 3ph Motor with Push Button Start/Stop Switch
Mist Coolant Unit Kit (Includes: Face Plate, Strap, and Clip)
Special Calibration for Sharpening 3″ Diameter Drills (Complete with 3/4 HP / 3ph Motor)
3″ Calibration with No Motor
