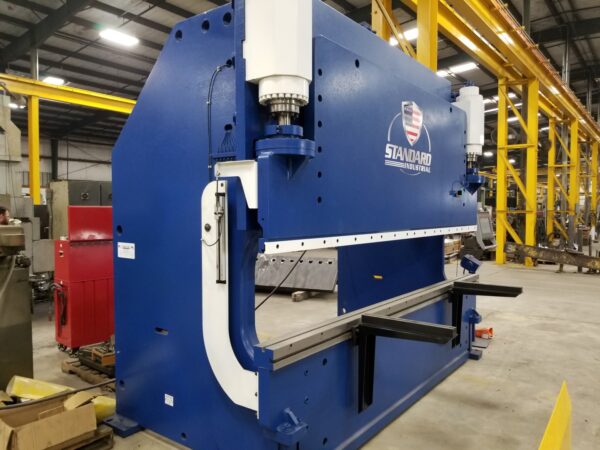

Standard Industrial 12′ x 200 Ton Servo Hydraulic Press Brake, EV200-12
Inventory # 7474
Model: EV200-12
Made in USA
Specifications:
Capacity: 200 Tons
Bed and Ram Length: 144″
Distance Between Housings: 10′ 5″
Adjustable Stroke: 10″
Maximum Open Height: 20″
Closed Height: 10″
Throat (Gap): 10″
Ram Repeatability: +/- .0004”
Three Working Speeds:
Fast Approach: 200 IPM
Pressing Speed: 22 IPM
Return Speed: 232 IPM
Motor: 20 HP / 220v, 440v / 3ph
Standard Features:
ESA 640 2-D CNC Graphical Control
Y1 – Y2 Axes, +/- .0004” ram repeatability and programming of the ram position (vertical) as well as tilting +/- .750″ (or more) for tapered bends (cones)
Front Gauging, (2) 24″ T-Slot Support Arms with embedded scales
T-slot across front edge of brake bed
10″ deep gaps in side frames for bending longer lengths with larger flanges
The parallelism between moving upper beam and fixed lower beam during is ensured by two precision proportional valves controlled by the CNC control (axes Y1 and Y2)
(1) 5 1/2″ lower beam
Hydraulic drive including complete hydraulic system
Emergency stop palm button
All components readily available from your local suppliers
Typical 20-30 year lifetime
Manual ram clamps for American style tooling (Available with Wila quick-change ram clamping, optionally)
One day on-site training in contiguous U.S.
Mechanical Specifications:
Dimensions: 150″ x 70″ x 128″ H
Weight: approx. 28,000 lbs.
Contact us for special pricing and availability
FOB Factory
