Description

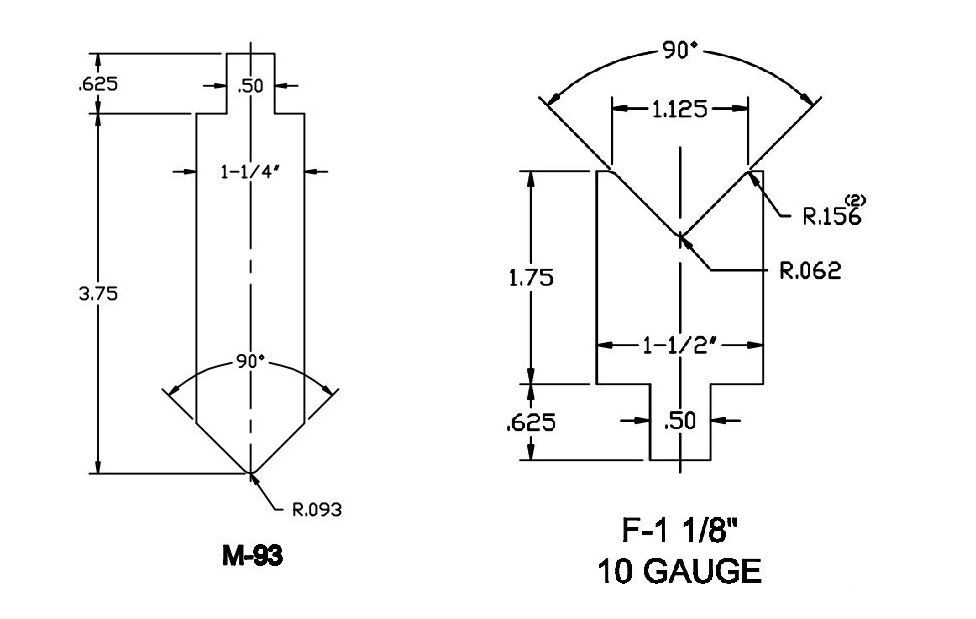

Specific 10 Gauge 90° Forming Punch and Die Press Brake Tooling Set
Inventory # 6328
Model: M-93, F-1-1/8
Specifications:
Capacity: 10 Gauge and Lighter

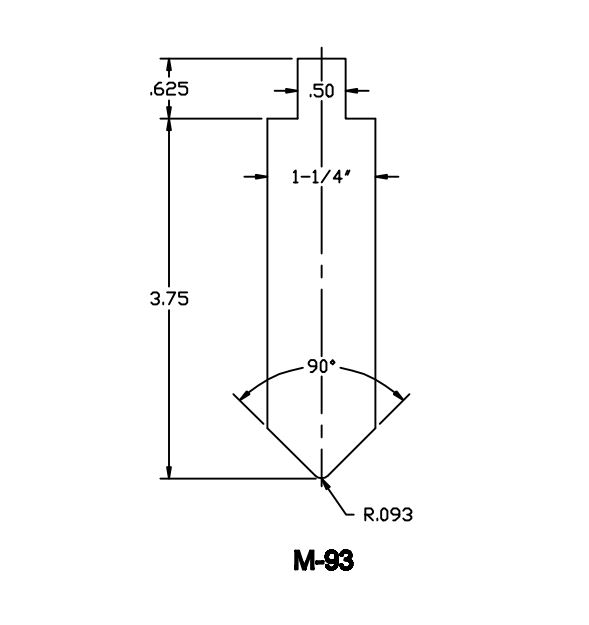

Punch:
90° Air Forming Punch
Radius: 3 3/2″
Clean Up Bar: 1 1/4″
Depth: 3 3/4″

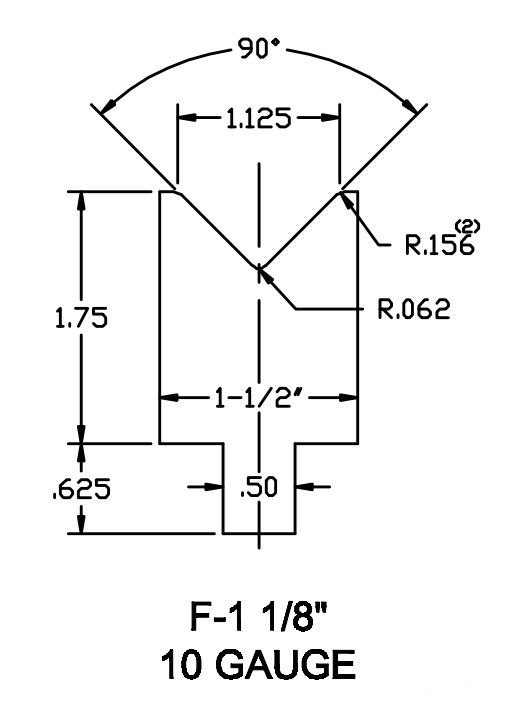

Die:
90° Air Forming Die
Clean Up Bar: 1 1/2″
Opening: 1 1/8″
Depth: 1 3/4″
Please Note: Can Be Ordered in Any Length. Please Submit a Request or Call for Pricing
FOB Factory
