Description

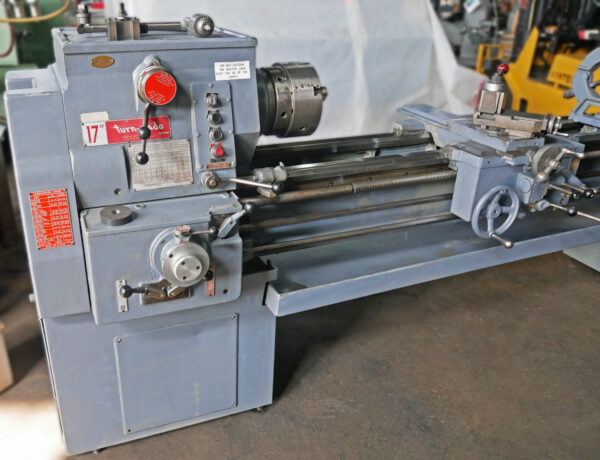

South Bend ‘Turn-Nado’ 17″ x 80″ Engine Lathe
Inventory # 9564
Model: Turn-Nado 17″
S/N: GJ-1547
Specifications:
Capacity:
Swing Over Bed: 17 1/8″
Swing Over Cross Slide: 10 1/2″
Distance Between Centers: 80″
Headstock:
Spindle Nose: D1-8 Camlock
Size of Center: MT #5
Hole Thru Spindle: 2 1/2″
Spindle Speeds: (18) 30 – 1,580 RPM
Threading Capacity:
with 20 Tooth Gear: (60) 2 3/4 – 160 TPI
with 40 Tooth Gear: (10 Extra Threads) 1 3/8 – 2 1/2 TPI
Longitudinal Feeds: (60) 0.0021 – .1242 IPR
Power Cross Feeds: (60) 0.0011 – 0.0678 IPR
Tailstock Spindle: MT #4
Motor: 7.5 HP / 230v, 460v / 3ph
Equipment Included:
Phase II Quick Change Toolpost with Turning Tool Holder and Boring Bar Holder
Bison 10″ 3-Jaw Chuck
Carriage Stop
Steady Rest
Skoda Live Center
Jacobs Drill Chuck
FOB Our Baltimore, MD Warehouse
