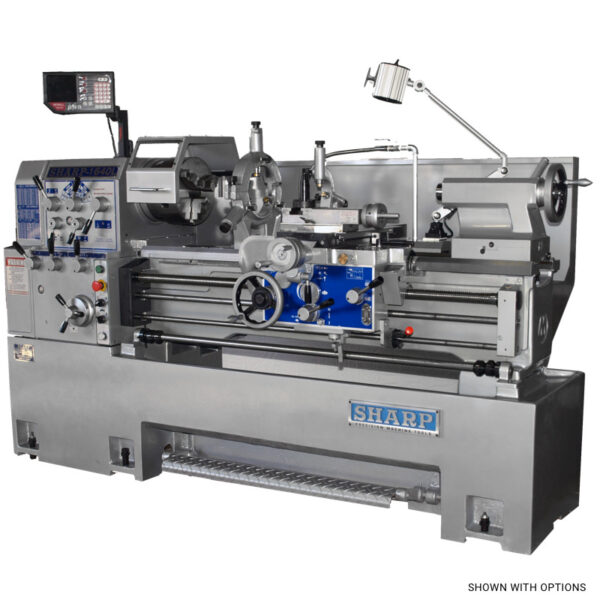

Sharp 16″ x 60″ Precision Lathe, 1660L
Inventory # 8980
Model: 1660L
Specifications:
Capacity:
Swing Over Bed: 16″
Swing Over Cross Slide: 8 3/4″
Swing Over Gap: 24.38″
Width of Bed: 11 3/4″
Width of Gap: 9 3/4″
Center Height: 1.9″
Distance Between Centers: 60″
Headstock:
Spindle Nose Type: D1-8 Cam-Lock
Spindle Bore: 3 1/16″
Spindle Speeds:
High: 235 – 2,000 RPM
Low: 20 – 170 RPM
Taper of Spindle Bore: MT #6
Taper of Center: MT #4
Threads and Feeds:
Longitudinal Feeds: 0.002″ – 0.032″ /Rev.
Cross Feeds: 0.0001″ – 0.0094″ /Rev.
Inch Threads: 4 – 56 TPI
Metric and Module Threads: 0.5 – 7 MM
D.P. Threads: 4 – 56 MM
Lead-Screw Pitch, Diameter: 4 TPI, 1 3/8″
Carriage:
Cross Slide Width: 8.7″
Compound Rest Travel: 4.9″
Compound Width: 4 1/2″
Bed:
Bed Length: 77″
Bed Width: 11 3/4″
Tailstock:
Quill Travel: 5″
Quill Diameter: 2 1/4″
Quill Taper: MT #4
Motor: 7.5 HP / 230v, 460v / 1ph or 3ph (Please Specify Desired Motor at Time of Order)
Standard Features:
D1-8 Cam-Lock, 3 1/16″ Hole
Direct Selection for Inch/Metric Threads
One Piece Cast Meehanite Bed
7.5 HP Spindle Motor
12-Speed Gear Head (40 – 2,000 RPM)
Geared Head Model Wired 220v or 440v (Please Specify at Time of Order)
Equipment Included:
3-Jaw 10″ Chuck
16″ Face Plate
Steady Rest with Bronze Tip (1/2″ – 6″)
Coolant System
Full Length Splash Guard
American Tool Post
6″ Diameter Back Plate
Threading Dial
Center Sleeve (MT #5 x 3)
Dead Centers (MT #4 x 1 and MT #5 x1)
Follow Rest (0.59″ – 2.76″)
Halogen Work Light
Longitudinal Carriage Stops
Tail Stock
Tool Kit – Includes machine manual, half nut wrench, 17m wrench, 19m wrench, set of 6 Allen wrenches, Phillip screw driver, flat head screw driver, oil can, grease gun, rear way cover bracket, pin for indicator, and a can of paint
Mechanical Specifications:
Weight: approx. 4,100 lbs.
FOB Factory
