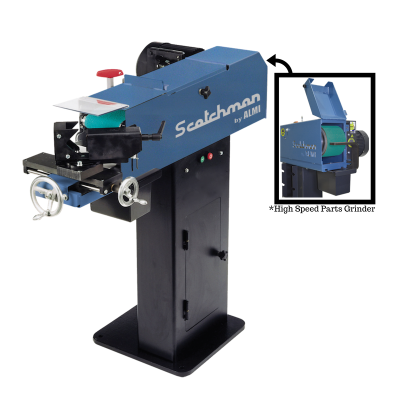

Scotchman 6″ Tube & Pipe Grinder Notcher, AL150-HS

Shipping: Add to Cart to Calculate

SKU: AL150-HS

Inventory #: 8660

Categories: ,

Condition:

Type:

Brand:

Description

Scotchman 6″ Tube & Pipe Grinder Notcher, AL150-HS

Inventory # 8660

Model: AL150-HS

Made in the Netherlands

Description:

The AL150-HS is ideal for grinding and notching stainless steel and aluminum, producing a gap-free fit ready for welding. With the AL150-HS you are able to grind 3x faster than the AL150 and your grinding belt will see a three times longer life than other grinders when using the high speed

This machine will grind steel, stainless steel, aluminum, iconel, and plastics. It is equipped with a high speed parts grinder that can be used for more than just your typical deburring

Specifications:

Belt: 6″ x 78 3/4″

Speed: 5,760 RPM

Grinding Capacity: 1/2″ – 4″

Angle Range: 90° to 20°

Motor: 5.5 HP / 230v OR 460v / 3ph

Standard Features:

Produces gap-free fits ready for welding

Smooth operation with minimal vibration

Notches via adjustments, straight = 90° to 20° in pipe or tube from 3/4″ to 4″ diameter in seconds

Two axis precision crossfeed table with both handwheels and hand lever feed handle

Heavy duty frame aand base construction

Mandrel centerline adjustment

One vise holds all pipe and tube sizes

High-speed parts grinder

Easy setup with vise graduated in degrees

17 mandrels available to ensure a correct gap-free fit

Two belts and two pipe mandrels (1 1/4″ & 1 1/2″)

Tool free belt and mandrel change over

Three year warranty on parts

Mechanical Specifications:

Dimensions: 59″ x 47″ x 26 1/2″ H

Weight: approx. 606 lbs.

Contact us for special pricing and availability

FOB Factory

Please Note: Machine May be Subject to Steel Surcharges, Please Request a Quote

Additional information

Weight 750 lbs
