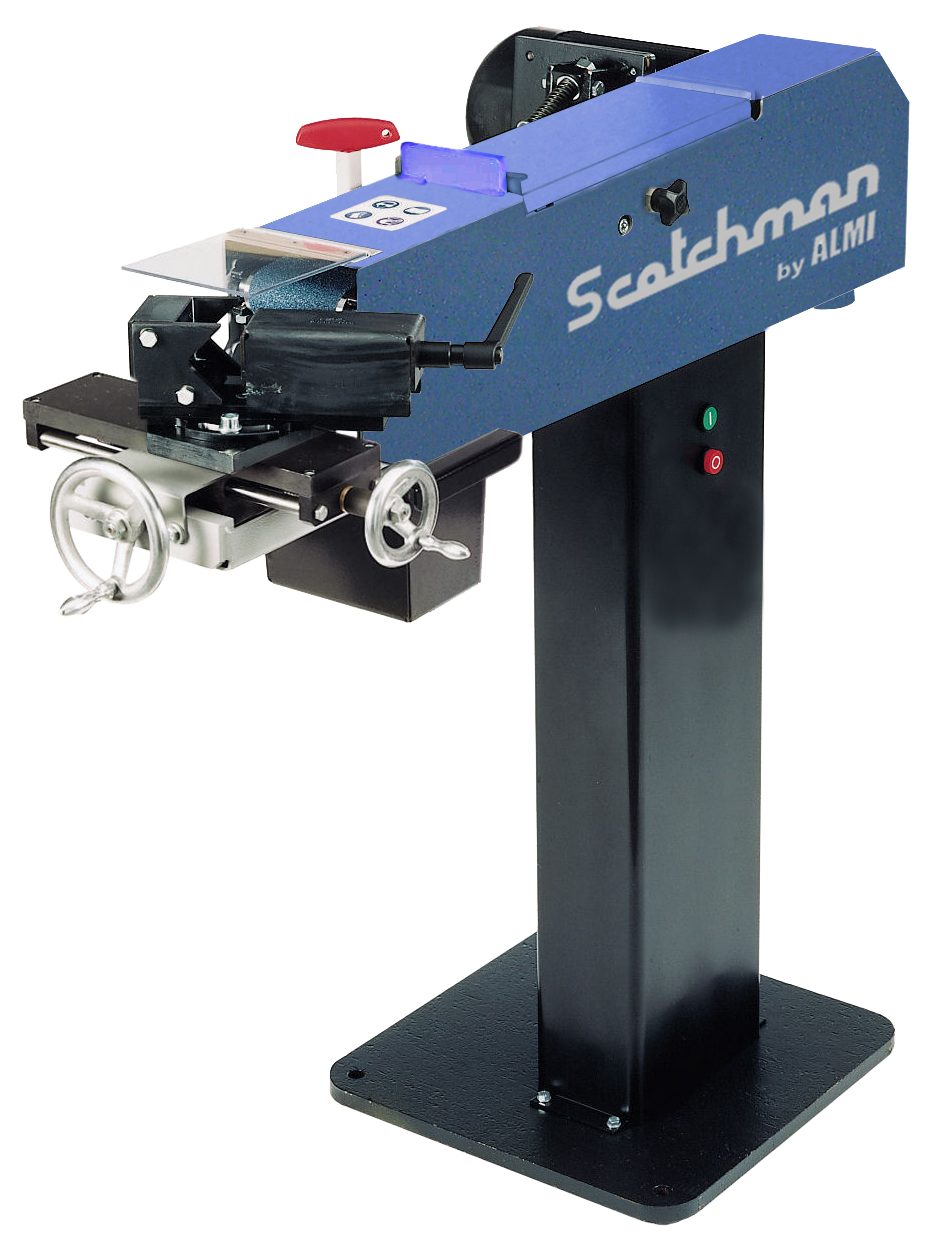

Scotchman 4″ Tube & Pipe Grinder Notcher, AL100U-02
Inventory # 5063
Model: AL100U-02
Made in the Netherlands
Specifications:
Grinding Capacity: 1/2″ – 3″ O.D.
Angle Range: Straight = 90° – 30°
Belt: 4″ x 78 3/4″
Belt Speed: 98.4 ft./sec.
Speed: 3,420 RPM
Motor: 4 HP / 230v, 460v / 3ph OR 230v / 1ph (Please Specify Desired Voltage at Time of Order)
Standard Features:
Produces gap-free fits ready for welding
Smooth operation with minimal vibration
Notches via adjustments, straight = 90° – 30° in tube or pipe from 3/4″ – 3″ diameter in seconds
Operated with two handwheels or a hand lever
Two axis precision crossfeed table with both handwheels and hand lever feed handle
Heavy duty frame and base construction
Mandrel centerline adjustment
One vise holds all pipe and tube sizes
Top-mounted deburring surface
Easy set-up with vise graduated in degrees
13 mandrels available to ensure correct gap-free fits
Supplied with 2 belts and two pipe mandrels (1 1/4″ & 1 1/2″)
Belt tensioning system simplifies tensioning the grinding belt
Tool-free belt and mandrel change over
Grinding belt can be tensioned quickly using the hexagonal spanner supplied with the machine
Grinding rollers can be changed in seconds
Three year parts warranty
Mechanical Specifications:
Dimensions: 59″ x 47″ x 19 1/2″ H
Shipping Weight: approx. 485 lbs.
Contact us for special pricing and availability
FOB Factory
Optional Equipment:
Single Phase Motor
Please Note: Machine May be Subject to Steel Surcharges, Please Request a Quote
