Scotchman 24″ Up-Cut Non-Ferrous Cold Saw, SUP-600 NF

Shipping: Add to Cart to Calculate

In stock

SKU: SUP-600 NF

Inventory #: 7928

Categories: ,

Condition:

Type:

Brand:

Description

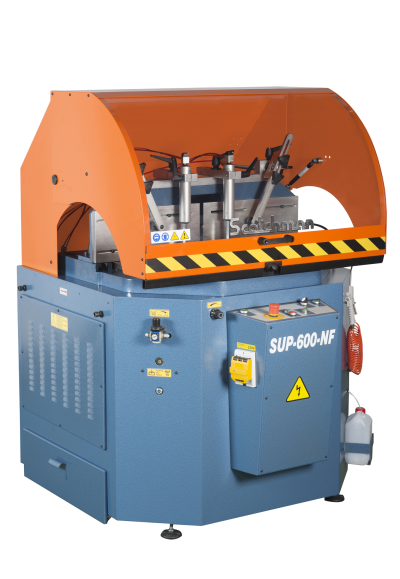

Scotchman 24″ Up-Cut Non-Ferrous Cold Saw, SUP-600 NF

Inventory # 7928

Model: SUP-600 NF

Made in Spain

Description:

The SUP-600 NF is an up-cut circular cold saw designed specifically for cutting non-ferrous material. Featuring a 24″, 132 tooth carbide blade that is capable of producing round cuts up to 9″ in diameter and rectangular cuts up to 15″ x 6″, the SUP-600 NF offers an increased cutting capacity not found in similar Scotchman models

The SUP-600 NF can also be coupled with Scotchman’s AngleMaster Measuring System to give you a true production machine. This saw is available in 230v and 460v configurations and is backed by the Scotchman Industries “best-in-the-business” 3-year warranty

Specifications:

Capacity:

@ 90°:

Round: 9″

Sqaure: 8″

Rectangle: 15″ x 6″

@ 45°:

Round: 9″

Square: 7″

Rectangle: 10″ x 4″

Cutting Speed: 3,000 RPM

Max. Diameter Blade: 24″

Arbor Bore: 1.97″

Motor: 5.5 HP / 230v OR 460v / 3ph (Please Specify Desired Voltage at Time of Order)

Standard Features:

Safety hood with safety switch that will not allow saw to run with hood open

Power hood

Blade door with safety interlock switch

Dual palm buttons

Adjustable feed rate on saw head

Dual palm buttons

Adjustable feed rate on saw head

Two horizontal pneumatic clamps

Two vertical pneumatic clamps

Miter capability 22.5° left, 90° straight, 0° right

Capable of slotting

Moveable back fence for larger capacity

One gallon of coolant

Coolant tank with mist lubrication

One 24″ diameter blade

One blade wrench

Air hose

Chip collection drawer in base and a 4 3/4″ chip collection port

Adjustable leveling pads

Three years parts warranty

Mechanical Specifications:

Dimensions: 51 1/4″ x 48″ x 64 3/8″ H

Shipping Weight: approx. 1,102 lbs.

Contact us for special pricing and availability

FOB Factory

Optional Equipment:

Single Phase Motor

Please Note: Machine May be Subject to Steel Surcharges, Please Request a Quote

Additional information

Weight 1200 lbs
