Description

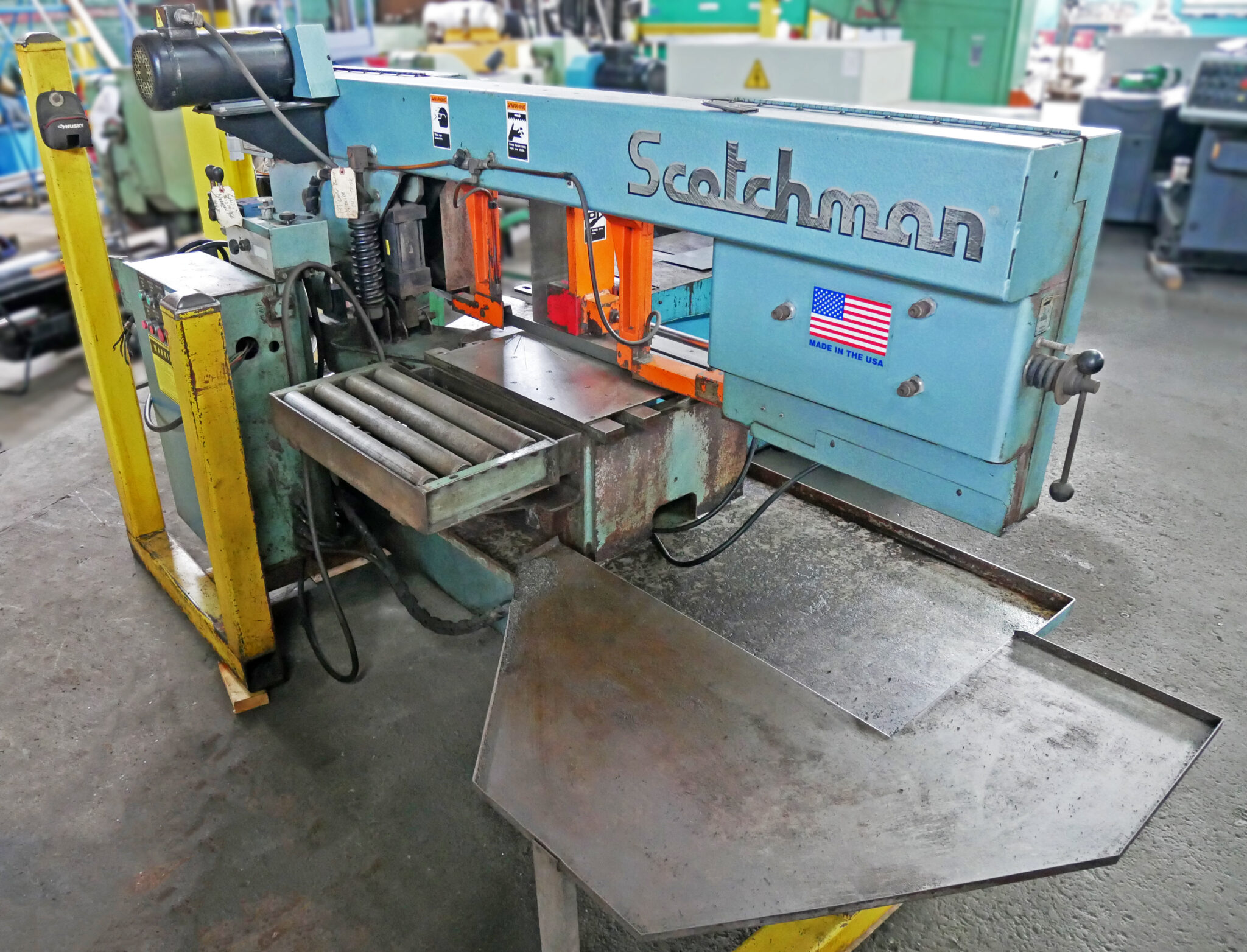

Scotchman 14″ x 19″ Swivel Head Horizontal Band Saw, SH1419
Inventory # 9765
Model: SH1419
S/N: 556-0307
Specifications:
Capacity:
@ 90°:
Rectangular: 14″ x 19″
Round: 15″
@ 45°:
Rectangular: 14″ x 14″
Round: 15″
@ 30°:
Rectangular: 14″ x 10 1/2″
Round: 10 1/2″
Drive Wheel: 20″ Diameter, Cast Iron
Blade Speed: 70 to 400 SFPM
Blade Size: 197″ x 1 1/4″ x .042″
Blade Tension: Spring-Loaded by Handwheel
Coolant System: 5 Gallon Reservoir
Hydraulic System: 0.5 HP
Motor: 3 HP / 3ph
Standard Features:
Head Swings 60° – No Material Movement
Hydraulic Feed Control with Adjustable Rate and Feed Pressure
Quick Head Approach with Hold for Ease of Line-up
Hydraulic Full-Stroke, Full Capacity Vising
Hydraulic Head Raise

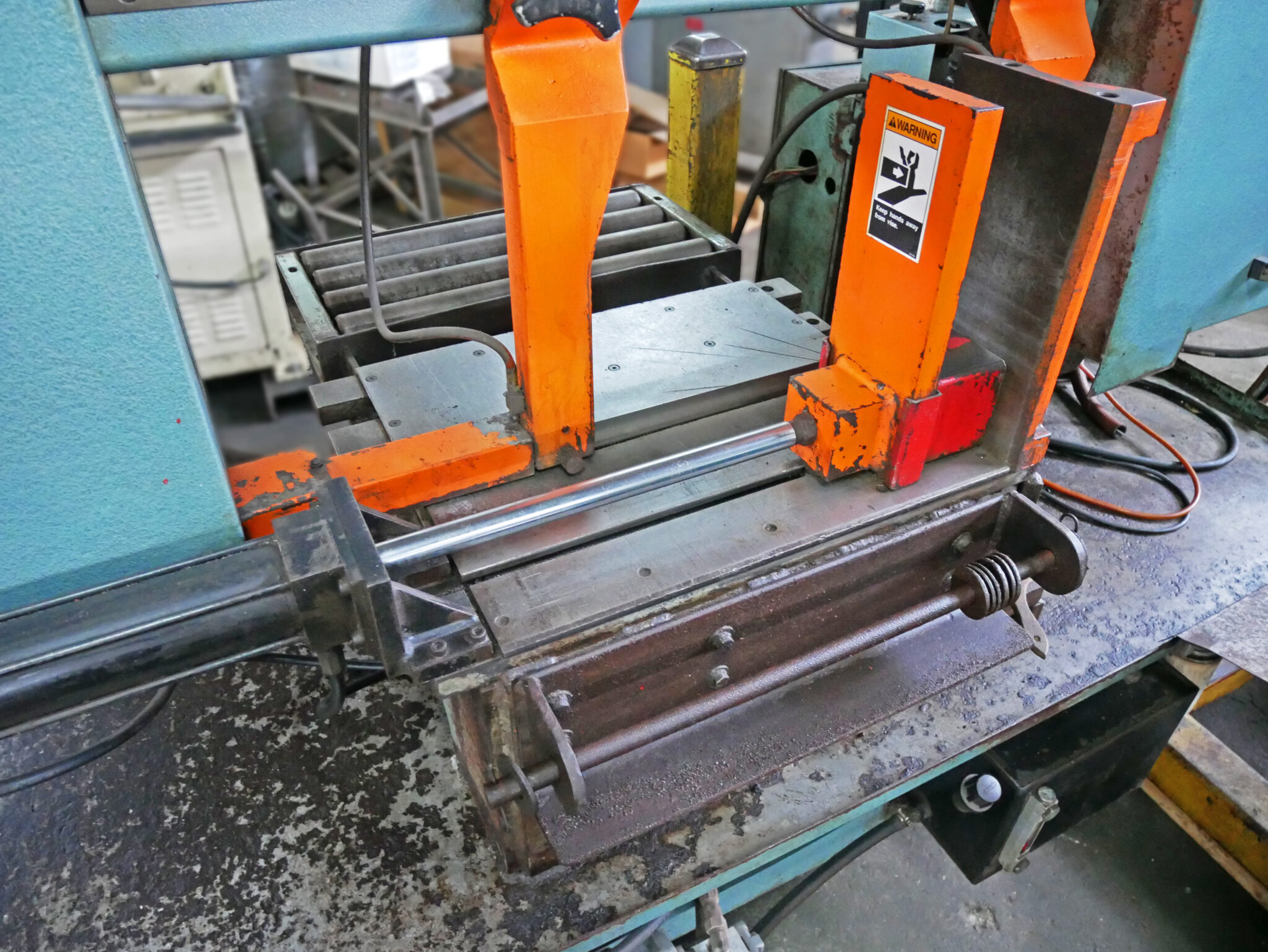

Hydraulic Vise Clamp
Infinitely Adjustable Blade Speed with AC Inverter
Saw Guides, Spring Loaded, Solid Carbide Inserts for Clean, Accurate Cuts
Replaceable Steel Wear Plates on Bed
Recirculating Flood Coolant System with Splash Guard
Wash Down Hose with Hanger for Easy Cleanup
Powered Blade Brush for Straight Cuts and Longer Blade Life
Saw Blade Guard for Operator Safety
Mechanical Specifications:
Dimensions: 92″ x 42″ x 68″ H
Weight: approx. 1,700 lbs.
FOB Our Baltimore, MD Warehouse
