Description

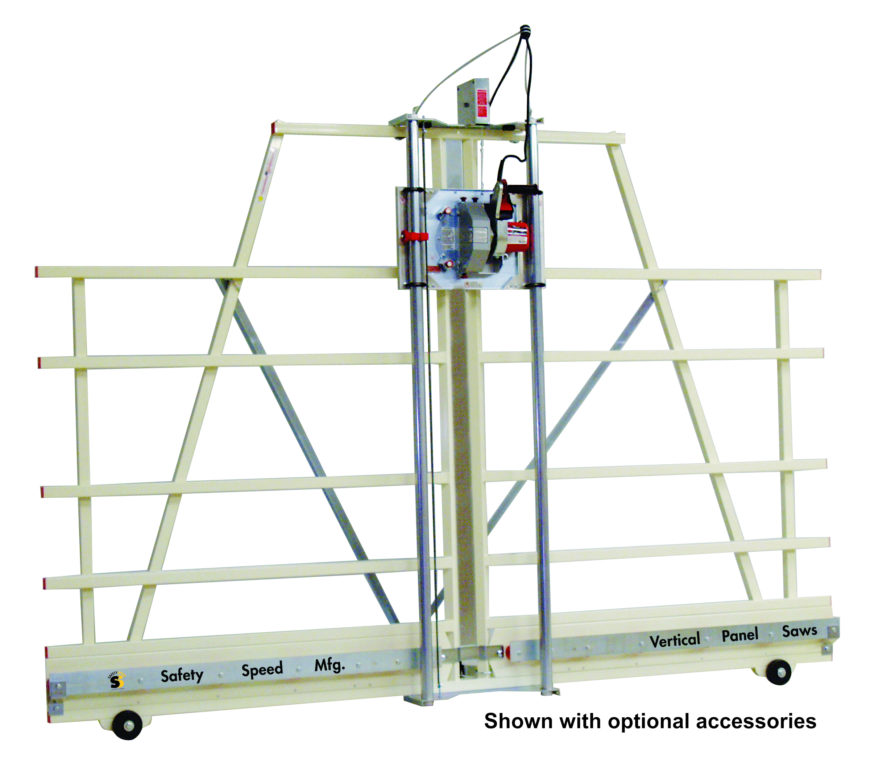

Safety Speed H5 Vertical Panel Saw
Inventory # 6913
Model: H5
Made in USA
Description:
The popular H5 panel saws are ideally suited for customers looking for a full-sized vertical panel saw at a very affordable price. This saw has a crosscutting height of 64″ while delivering an accuracy of 1/32″ straight and square
Specifications:
Max. Crosscut: 64″
Max. Rip Cut: Unlimited
Max. Cut Thickness: 1 3/4″
Cut Accuracy, Straight and Square: 1/32″
Saw Blade Diameter: 8″
Frame Length: 120″
Motor: 3 1/4 HP / 120v / 1ph
Standard Equipment:
3 1/4 HP, 15 amp industrial duty saw motor
Zinc plated 1 3/4″ steel guide tubes
4 Nylatron roller bearing systems
Adjustable vertical and horizontal rulers
Quick change from vertical to horizontal cutting
Thin material pressure guard
Injection-molded plastic material rollers
Spring loaded counter balance system
Integrated dust collection bonnet
Extended warranty
TUV certified to UL/CSA standards
Mechanical Specifications:
Dimensions: 120″ x 11″ x 83″
Weight: approx. 298 lbs.
FOB Factory – Contact us for Pricing and Availability
