Safety Speed H4 Vertical Panel Saw

Shipping: Add to Cart to Calculate

SKU: H4

Inventory #: 6896

Categories: , ,

Condition:

Type:

Brand:

Description

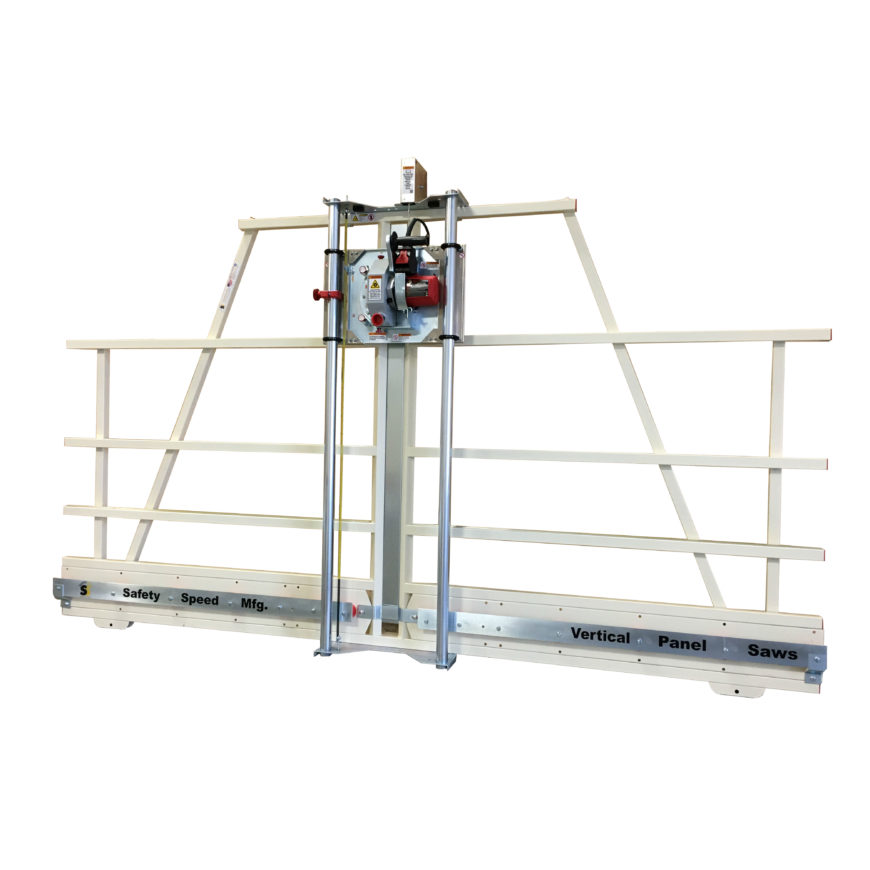

Safety Speed H4 Vertical Panel Saw

Inventory # 6896

Model: H4

Made in USA

Description:

The H4 offers full-sized vertical panel saw productivity in economical machines. The model H4 saws cut within 1/32″ on a wide variety of panel materials up to 1 3/4″ thick. H-Series saws are used in all kinds of panel processing applications

Specifications:

Max. Crosscut: 50″

Max. Rip Cut: Unlimited

Max. Cut Thickness: 1 3/4″

Cut Accuracy, Straight and Square: 1/32″

Saw Blade Diameter: 8″

Frame Length: 120″

Motor: 3 1/4 HP / 120v / 1ph

Standard Equipment:

3 1/4 HP, 15 amp industrial duty saw motor

Zinc plated 1 3/4″ steel guide tubes

4 Nylatron roller bearing systems

Adjustable vertical and horizontal rulers

Quick change from vertical to horizontal cutting

Thin material pressure guard

Injection-molded plastic material rollers

Spring loaded counter balance system

Integrated dust collection bonnet

Extended warranty

TUV certified to UL/CSA standards

Mechanical Specifications:

Dimensions: 120″ x 11″ x 70″

Weight: approx. 244 lbs.

FOB Factory – Contact us for Pricing and Availability

Additional information

Weight 350 lbs
