Safety Speed 74″ Vertical Panel Saw, 6800

Shipping: Add to Cart to Calculate

SKU: 6800

Inventory #: 8179

Categories: , ,

Condition:

Type:

Brand:

Description

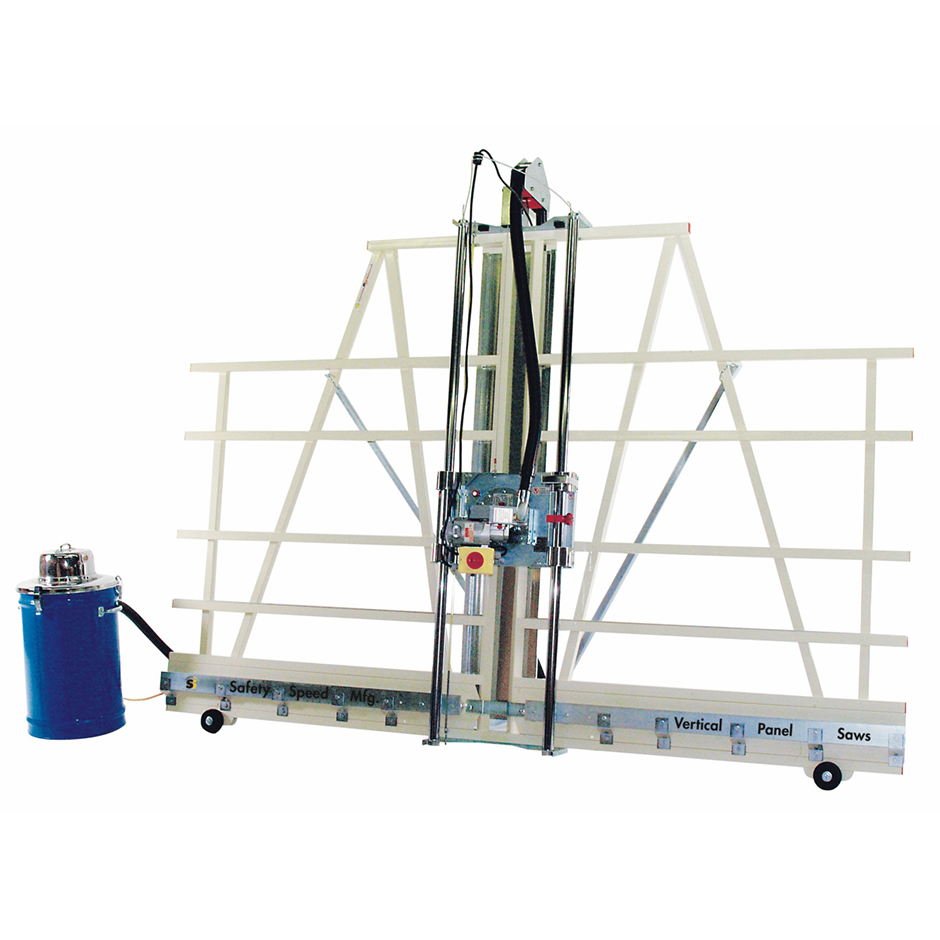

Safety Speed 74″ Vertical Panel Saw, 6800

Inventory # 8179

Model: 6800

Made in USA

Description:

Featuring a heavy duty worm drive motor, additional steel frame supports, aluminum wheels and double bearings, this machine will deliver an accuracy of 1/64″. The 6400 can handle 64″ wide sheets while the 6800 can cut sheets up to 74″ without blinking an eye

Specifications:

Max. Crosscut: 74″

Max. Rip Cut: Unlimited

Max. Cut Thickness: 1 3/4″

Cut Accuracy, Straight and Square: 1/64″

Saw Blade Diameter: 8″

Frame Length: 120″

Motor: 3 HP / 120v / 1ph

Standard Equipment:

3 HP worm driven heavy-duty saw motor

10′ welded steel frame

Chrome-plated 1 3/4″ guide tubes

8 Nylatron roller bearing systems

Adjustable vertical and horizontal rulers

Quick change from vertical to horizontal cutting

Thin material pressure guard

Solid aluminum material rollers

Enclosed counterweight system

Integrated dust collection bonnet

Extended warranty

TUV certified to UL/CSA standards

Mechanical Specifications:

Dimensions: 124″ x 17″ x 98″

Weight: approx. 660 lbs.

FOB Factory – Contact us for Pricing and Availability

Additional information

Weight 960 lbs
