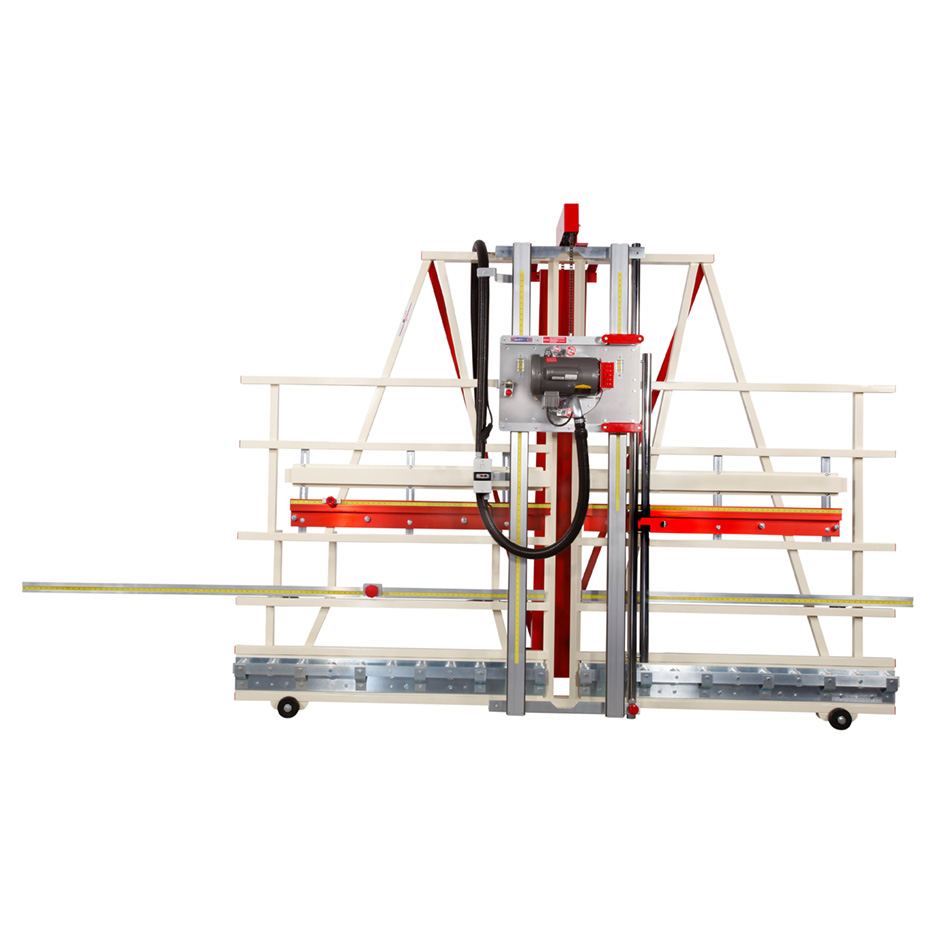

649Safety Speed 64″ Vertical Panel Saw, 7400M
Inventory # 8182
Model: 7400M
Made in USA
Description:
Welcome to cutting at the highest production and accuracy level. If continuous sawing and tight tolerance is required for your operation, these units will deliver. Every component of this saw represents quality and performance. Showcasing 3 HP / 3ph heavy duty induction motors, heavy extruded beams with precise dual-vee bearings, and the sturdiest frame on the market, these powerhouse machines will deliver cutting accuracies to 0.005″ guaranteed
Specifications:
Max. Crosscut: 64″
Max. Rip Cut: Unlimited
Max. Cut Thickness: 2 1/8″
Cut Accuracy, Straight and Square: .005″
Saw Blade Diameter: 8″
Frame Length: 120″
Motor: 3 HP / 230v / 3ph
Standard Equipment:
3 HP / 3ph continuous duty induction saw motor
Welded steel frame and integrated stand system
Dual V-track precision guide system
Adjustable vertical and horizontal rulers
Quick stop gauges (8′ left and 5′ right)
Quick change saw blade, vertical to horizontal cutting
Floating pressure saw foot
Solid aluminum material rollers
Enclosed counterweight system
Mid-Way Fence
Dust collection ready
Hold down bar
Wheels
3 year warranty
TUV certified to UL/CSA standards
Mechanical Specifications:
Dimensions: 124″ x 98″ x 48″
Weight: approx. 950 lbs.
FOB Factory – Contact us for Pricing and Availability
