Description

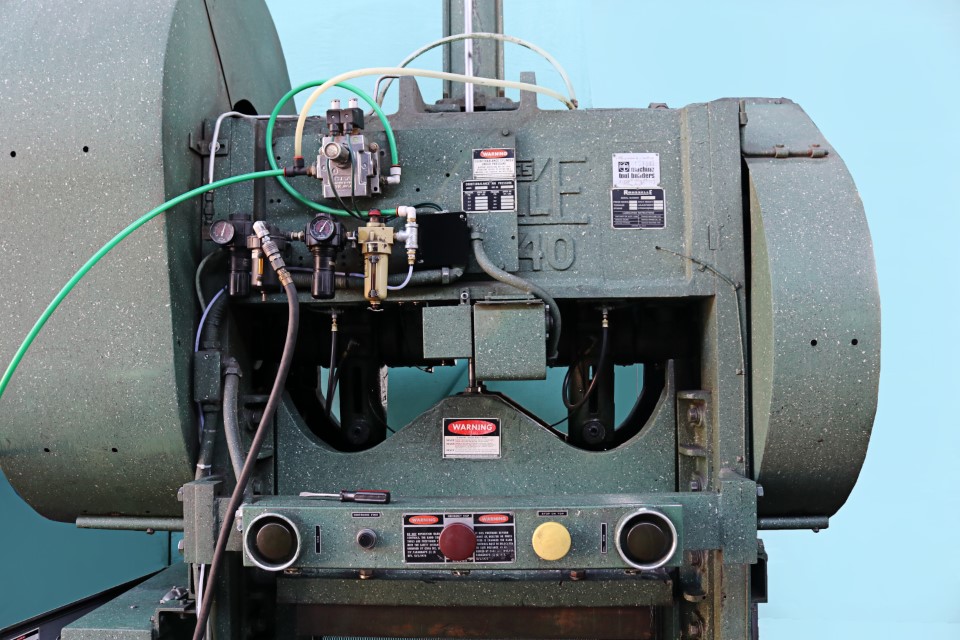

Rousselle 80 Ton Straight Side Punch Press
Inventory # 7360-P
Model: 8SS40
S/n: P-25312
Specifications:
Capacity: 80 Ton
Bed Area Between Post: 30″ Deep x 39 5/8″ Wide
Opening in Bed: 14″ Between Frames
Depth of Bed: 30″
Bed to Floor: 32 1/2″ (with Bolsta Plate: 35 1/2″)
Stroke: 2″
Adjustment of Ram: 4″
Strokes per Minute: 75
Shut Height: 19 1/4″
Die Space Standard Down Adjustment Up Bed to Ram: 12″
Area of Ram: 20″ x 55″
Opening Between Uprights: 40″ Left to Right x 14″ Front to Back
Motor: 7.5 HP / 230v / 3ph
Equipment Included:
Geared Air Clutch
2 7/8″ Bolster Plate
2 3/4″ Ram Plate
One-Shot Lube
Air Counter Balance
Operator Station with Dual Run, Emergency Stop and Stop On Top Palm Buttons
Supervisory Key Selector Switch for Off, Single Stroke, Inch, or Continuous Mode
Brake Monitor
Forward Reverse Feature
Stroke Counter
Mechanical Specifications:
Dimensions: 38″ x 56″ x 125″ H
Weight: approx. 9,000 lbs.
FOB Our Baltimore, MD Warehouse
