Description

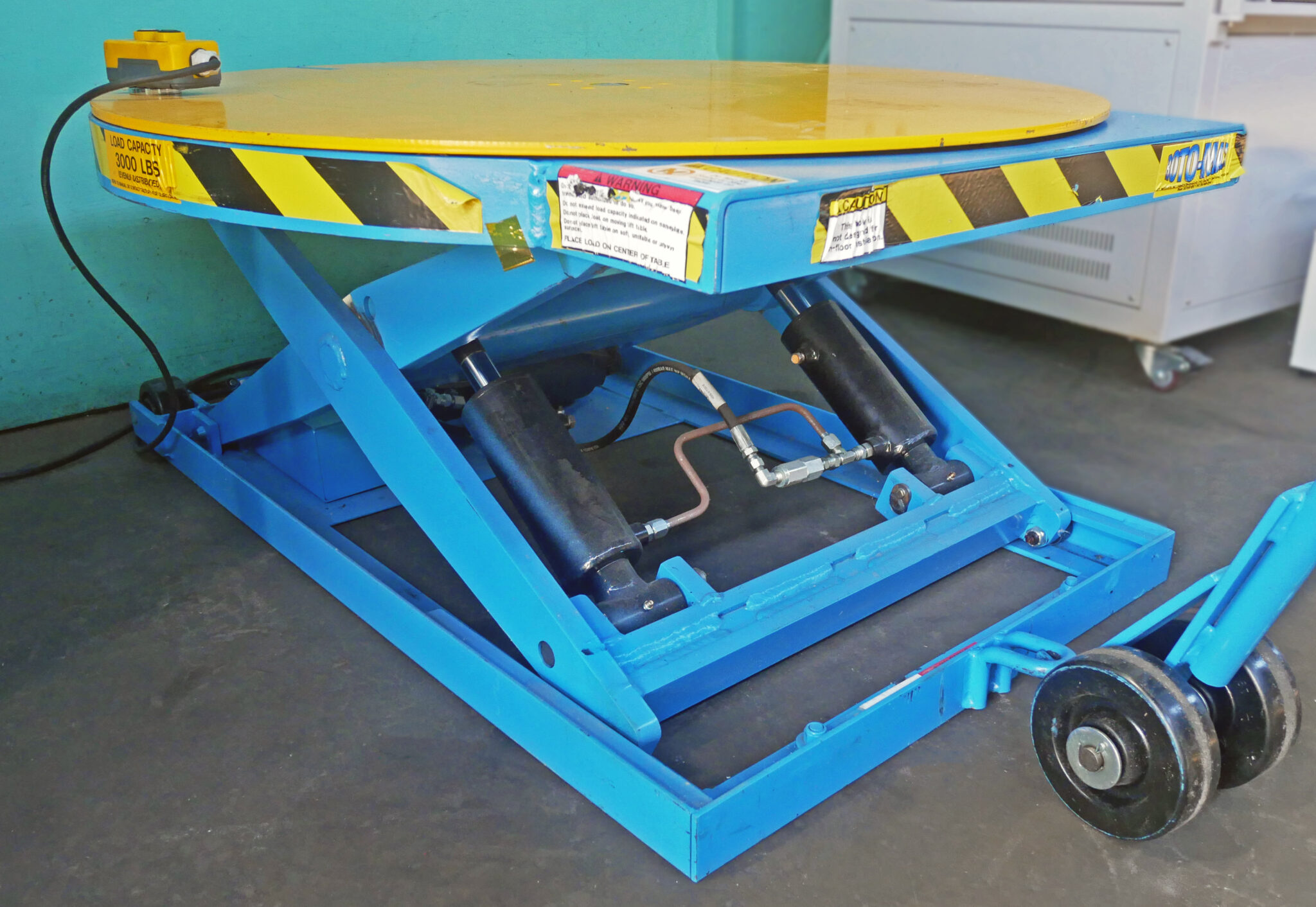

Roto-Max Heavy Duty 3,000 lb. Capacity Rotating Hand-Operated Scissor Lift Table, RTMX-30
Inventory # 9668
Model: RTMX-30
S/N: RTM 0119-0008
Specifications:
Width: 30″
Lowered Height: 6 1/2″
Raised Height: 33″ (plus pallet height)
Weight Capacity: 3,000 lbs.
Platform Length x Width: 43″ x 43″
Lift Time: 32 Seconds
Lift Type: Hydraulic
Operation: Powered
Control: Hand Operated
Motor: 1.5 HP / 115v / 1ph
Features & Equipment Included:
Zerk Fittings: On camroller and pivot points. Regreasable. Last longer than lifetime lubricated bearings. Easily serviced
15 Min. Motor: Intermittent duty; able to be run for 15 minutes every hour. Suitable for medium and high cycle applications
Trapped Rollers: Captured ‘Lift-Lok’ secures top and base leg rollers and allows for easy maintenance access when lowered
Teflon Seals: Extended cylinder life by reducing friction and wear. Faster stroke speeds than rubber. High chemical resistance
360-degree rotating top with heavy-duty cam rollers and exclusive Roto-Bearings
Cylinders with internal stops, hard chrome plated, polished shafting hydraulic cylinder piston rods
Surfaces degreased, descaled, and finished with safety yellow and blue enamel
Integral gear pump with check valve, relief valve, and solenoid valve
Smooth steel top with yellow and black safety strips
10′ power cord
Control box NEMA constant pressure, magnetic backed
SAE hoses and fittings
Internally mounted motor
Mechanical Specifications:
Dimensions: 45″ x 43″ x 10″ H
Weight: approx. 780 lbs.
New Replacement Cost: $4,999.00
FOB Our Baltimore, MD Warehouse
